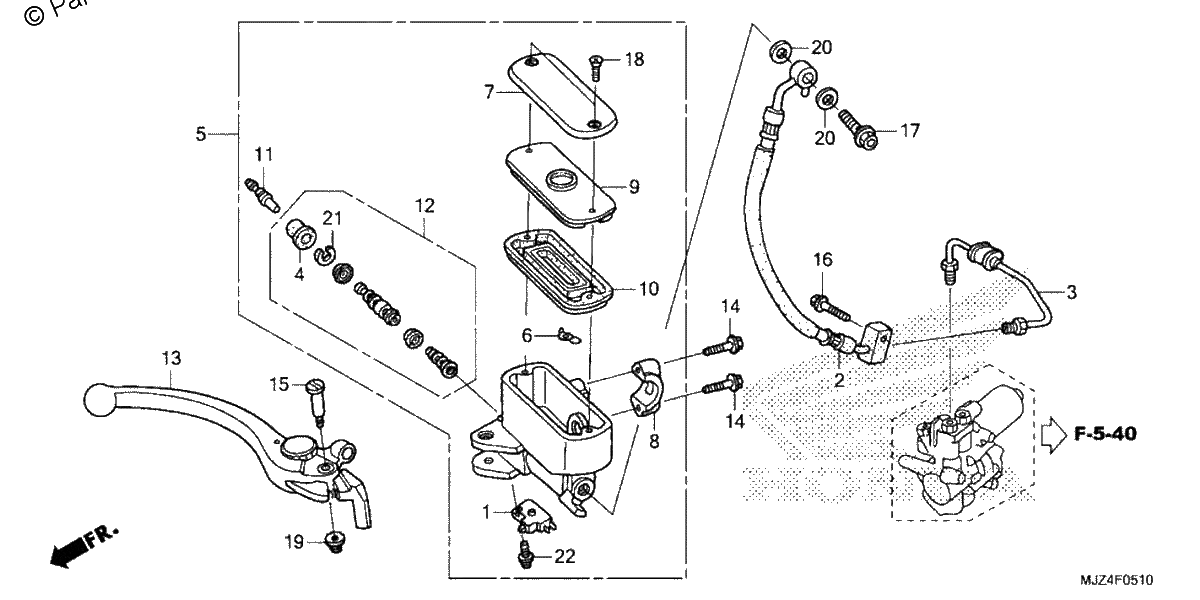

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
HOSE A, FR. BRAKE
$81.05¢40 526
#003
PIPE A, FR. BRAKE
$15.84¢7 918
#004
BOOT
$13.10¢6 549
#005
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$298.45¢149 224
#006
PROTECTOR
$4.78¢2 392
#007
CAP, MASTER CYLINDER (NISSIN)
$32.69¢16 347
#008
HOLDER, MASTER CYLINDER
$13.51¢6 756
#009
PLATE, DIAPHRAGM
$11.37¢5 687
#010
DIAPHRAGM
$16.26¢8 131
#011
ROD, PUSH
$26.47¢13 237
#012
PISTON SET, FR. MASTER CYLINDER
$68.71¢34 356
#013
LEVER ASSY., R. HANDLE
$63.89¢31 947
#014
BOLT, FLANGE (6X22)
$1.47¢736
#014
BOLT, FLANGE (6X22)
$1.47¢736
#015
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#016
BOLT, FLANGE (6X28)
$1.66¢828
#017
BOLT, OIL (10X22)
$8.18¢4 088
#018
SCREW, FLAT
$2.54¢1 271
#019
NUT, CAP (6MM)
$2.54¢1 271
#020
WASHER, OIL BOLT
$4.46¢2 231
#021
CIRCLIP
$2.85¢1 426
#022
SCREW-WASHER (4X12)
$1.59¢793
#022
SCREW-WASHER (4X12)
$1.59¢793
