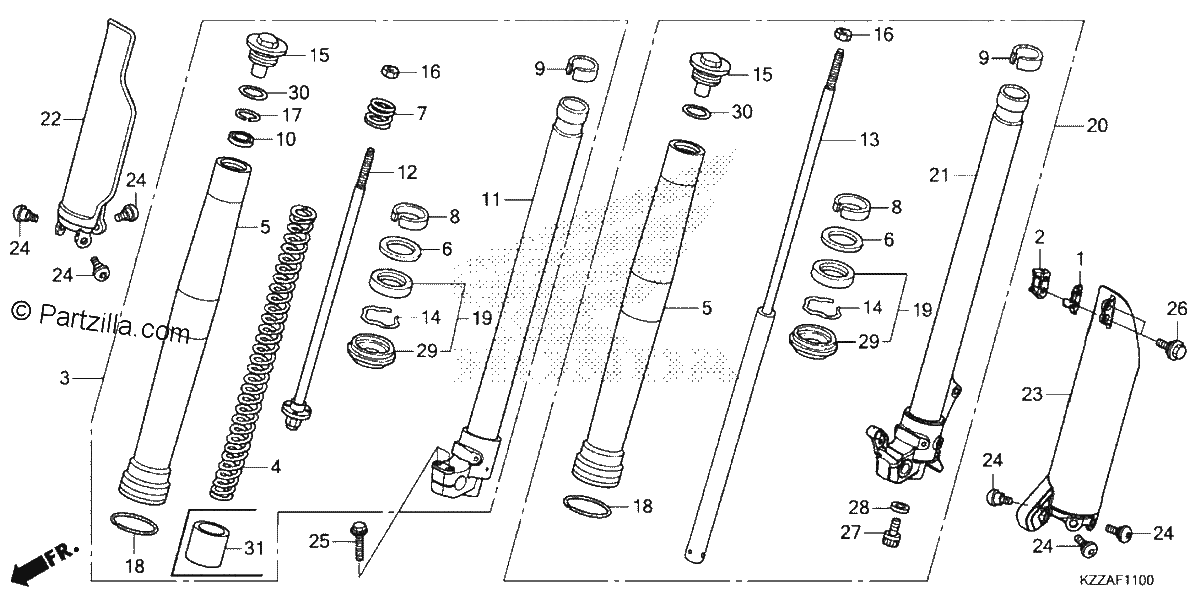

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.75¢4 375
#002
CLAMP B, BRAKE HOSE
$10.80¢5 400
#003
FORK ASSY., R. FR. (SHOWA)
$858.88¢429 438
#004
SPRING, FR. FORK
$107.81¢53 906
#005
TUBE (OUTER)
$458.04¢229 019
#006
RING, BACK-UP
$11.29¢5 644
#007
SPRING, REBOUND
$17.15¢8 575
#008
BUSH, GUIDE
$8.58¢4 288
#009
BUSH, SLIDER
$17.22¢8 612
#010
SEAT, STOPPER
$8.26¢4 131
#011
PIPE, R. SLIDE
$304.90¢152 450
#012
ROD
$172.99¢86 494
#013
DAMPER, FR.
$153.95¢76 975
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#015
BOLT, FR. FORK
$64.78¢32 388
#016
NUT, HEX. (10MM)
$3.73¢1 863
#017
RING, STOPPER
$13.53¢6 763
#018
RING, WEAR
$7.97¢3 988
#019
SEAL SET, FR. FORK
$29.75¢14 875
#020
FORK ASSY., L. FR. (SHOWA)
$856.83¢428 413
#021
PIPE, L. SLIDE
$384.96¢192 481
#022
PROTECTOR, R. FR. FORK (TYPE3)
$39.24¢19 619
#023
PROTECTOR, L. FR. FORK (TYPE3)
$120.86¢60 431
#024
BOLT, PROTECTOR (6MM)
$0.96¢481
#025
BOLT, FLANGE (8X40)
$3.43¢1 713
#026
BOLT, FLANGE (6MM)
$0.70¢350
#027
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#028
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#029
DUST SEAL
$17.63¢8 813
#030
O-RING (44.7X2.4)
$4.76¢2 381
