CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

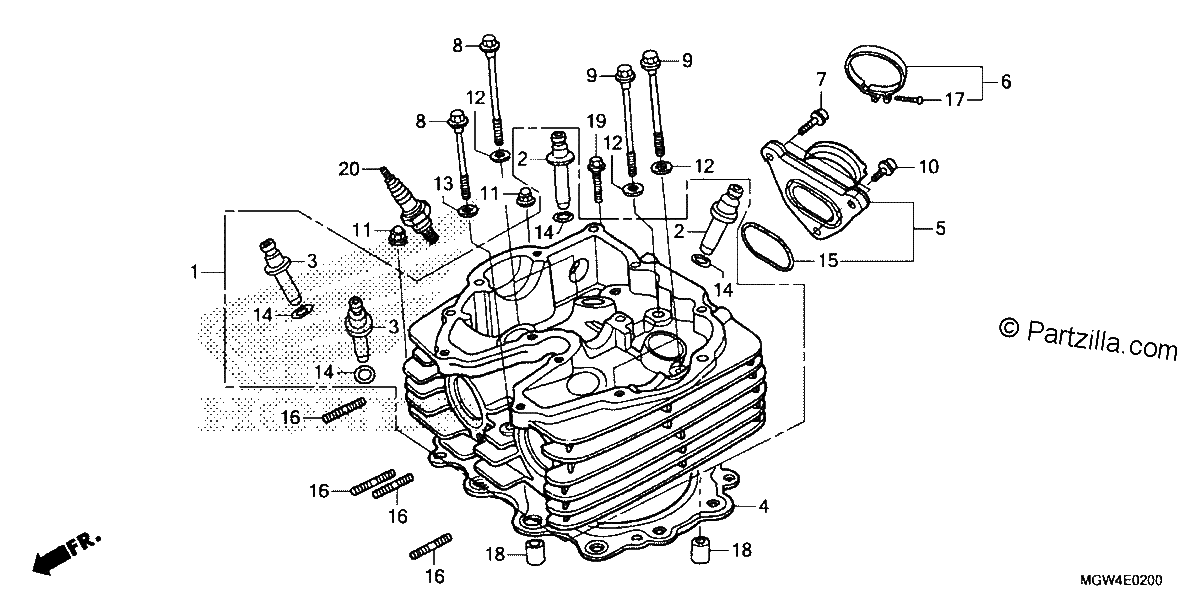

Diagrama de CYLINDER HEAD

Repuestos

#001
12200-MY6-670
CYLINDER HEAD
$983.36¢491 682
1
#002
12231-MG2-306
GUIDE, IN VALVE (OVER SIZE)
$22.68¢11 339
1
#003
12241-MG2-306
GUIDE, EX VALVE (OVER SIZE)
$19.29¢9 643
1
#004
12251-MN9-742
GASKET, CYLINDER HEAD
$37.56¢18 779
1
#005
16210-MY6-670
INSULATOR, CARBURETOR
$90.60¢45 299
1
#006
16219-MN9-000
BAND, CARBURETOR INSULATOR
$11.59¢5 796
1
#007
90080-MG8-000
BOLT, FLANGE SOCKET (6X25)
$4.34¢2 168
1
#008
90081-MN9-000
BOLT, FLANGE (9X83)
$16.59¢8 297
1
#009
90082-MN9-000
BOLT, FLANGE (9X110)
$19.34¢9 672
1
#010
90097-MY6-880
BOLT, FLANGE SOCKET (6X20)
$4.90¢2 449
1
#011
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#012
90501-MN1-670
WASHER, PLAIN (9MM)
$4.66¢2 329
1
#013
90502-MN9-000
WASHER, PLAIN (9MM)
$11.32¢5 658
1
#014
91301-200-000
O-RING (10X1.6)
$3.36¢1 679
1
#015
91301-MK4-601
O-RING, SPECIAL (ARAI)
$13.57¢6 785
1
#016
92900-08025-0B
BOLT, STUD (8X25)
$2.60¢1 299
1
#017
93500-05028-0G
SCREW, PAN (5X28)
$0.80¢402
1
#018
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#019
96001-06032-00
BOLT, FLANGE (6X32)
$1.66¢828
1
#020
98069-57916
SPARK PLUG (DPR7EA-9) (NGK)
$2.88¢1 438
1
#020
98069-57926
SPARK PLUG (X22EPR-U9) (DENSO)
$2.92¢1 461
1
#020
98069-58916
SPARK PLUG (DPR8EA-9) (NGK)
$2.88¢1 438
1
#020
98069-58926
SPARK PLUG (X24EPR-U9) (DENSO)
$2.78¢1 392
1
#020
98069-59916
SPARK PLUG (DPR9EA-9) (NGK)
$2.88¢1 438
1
#020
98069-59926
SPARK PLUG (X27EPR-U9) (DENSO)
$2.92¢1 461
1
