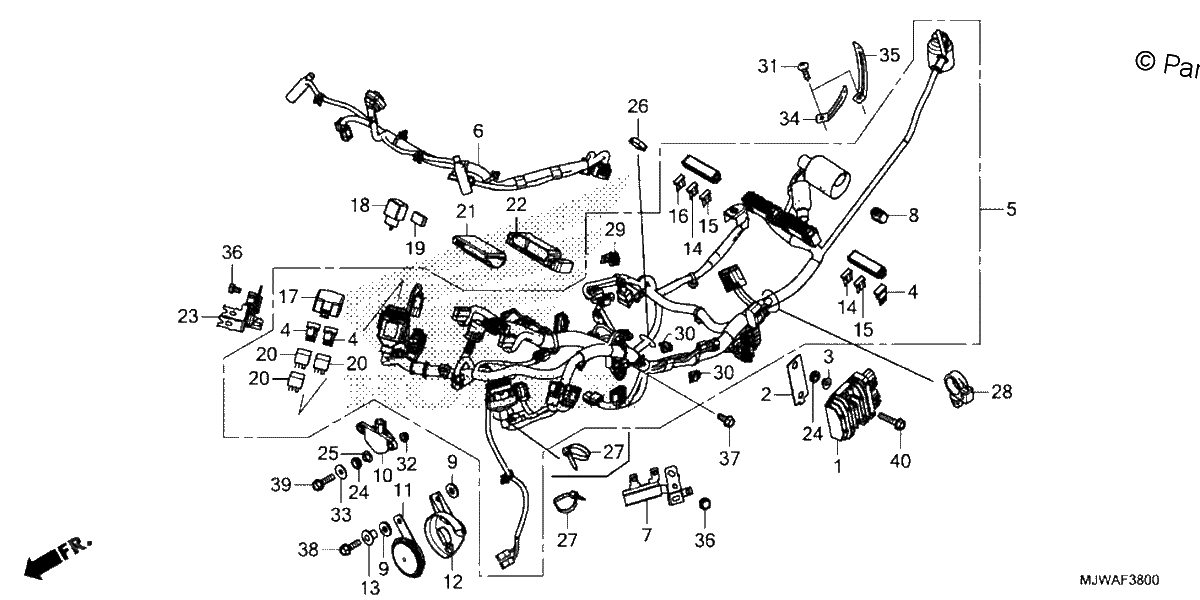

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$201.64¢100 821
#002
PLATE, REGULATE RECTIFIER
$1.86¢932
#003
COLLAR, REGULATOR RECTIFIER
$1.81¢903
#004
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#005
WIRE HARNESS
$1262.23¢631 114
#006
SUB-HARNESS, Front.
$79.22¢39 612
#007
STAY, CONNECTOR
$9.26¢4 629
#008
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#009
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#010
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#011
HORN (HIGH)
$28.19¢14 093
#012
HEAT GUARD, HORN
$4.96¢2 478
#013
COLLAR, HORN SETTING
$2.06¢1 029
#014
FUSE, BLADE (7.5A)
$3.46¢1 731
#015
FUSE, BLADE (15A)
$4.42¢2 208
#016
FUSE, BLADE (30A)
$2.86¢1 432
#017
COVER, RELAY BOX
$17.33¢8 665
#018
RELAY, TURN SIGNAL (MITSUBA)
$59.04¢29 521
#019
SUSPENSION, TURN SIGNAL RELAY
$6.35¢3 174
#020
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#021
PGM-FI UNIT
$394.53¢197 265
#022
CUSHION, PGM-FI UNIT
$4.94¢2 472
#023
STAY, RELAY BOX
$10.99¢5 497
#024
RUBBER, SIDE COVER
$2.30¢1 150
#025
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#026
BAND, WIRE (95MM)
$3.47¢1 737
#027
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#028
CLAMP, HARNESS
$6.64¢3 318
#029
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#030
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#031
SCREW, TAPPING (4X12)
$1.07¢535
#032
NUT, FLANGE (6MM)
$0.74¢368
#033
WASHER, PLAIN (6MM)
$0.92¢460
#034
CLIP, WIRE
$3.53¢1 765
#035
CLIP (4X90)
$3.36¢1 679
#036
BOLT, FLANGE (6X10)
$1.49¢747
#037
BOLT, FLANGE (6X14)
$1.92¢960
#038
BOLT, FLANGE (6X20)
$1.92¢960
#039
BOLT, FLANGE (6X22)
$2.04¢1 018
#040
BOLT, FLANGE (6X28)
$2.59¢1 294
