FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

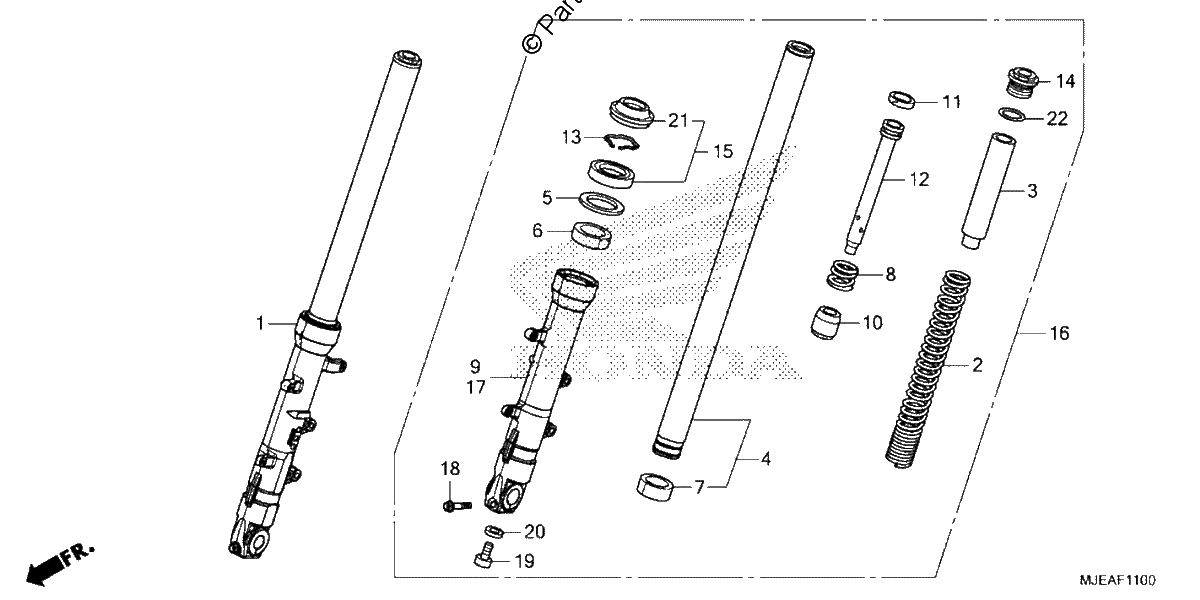

Diagrama de FRONT FORK

Repuestos

#001
51400-MJE-DF1
FORK ASSY., R. FR. (SHOWA)
$513.58¢256 789
1
#002
51401-MJE-DF1
SPRING, FR. FORK (SHOWA)
$47.45¢23 724
1
#003
51402-MGZ-J01
COLLAR, SPRING
$19.08¢9 539
1
#004
51410-MJE-DF1
PIPE, FR. FORK (SHOWA)
$184.76¢92 380
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#006
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#007
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#008
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#009
51420-MJE-D01
CASE, R. (LOWER)
$228.50¢114 252
1
#010
51432-MV4-003
PIECE, OIL LOCK
$17.61¢8 803
1
#011
51437-MJE-DB1
RING, PISTON (SHOWA)
$2.13¢1 064
1
#012
51440-MJE-DB1
PIPE, SEAT (SHOWA)
$11.20¢5 600
1
#013
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#014
51454-MKA-D81
BOLT, FR. FORK
$54.99¢27 496
1
#015
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#016
51500-MJE-DF1
FORK ASSY., L. FR. (SHOWA)
$489.31¢244 657
1
#017
51520-MJE-D01
CASE, Left (LOWER)
$227.04¢113 522
1
#018
90108-MR7-000
BOLT, FLANGE (8X40)
$5.63¢2 818
1
#019
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#020
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#021
91251-MKA-D81
DUST SEAL (SHOWA)
$9.20¢4 600
1
#022
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
