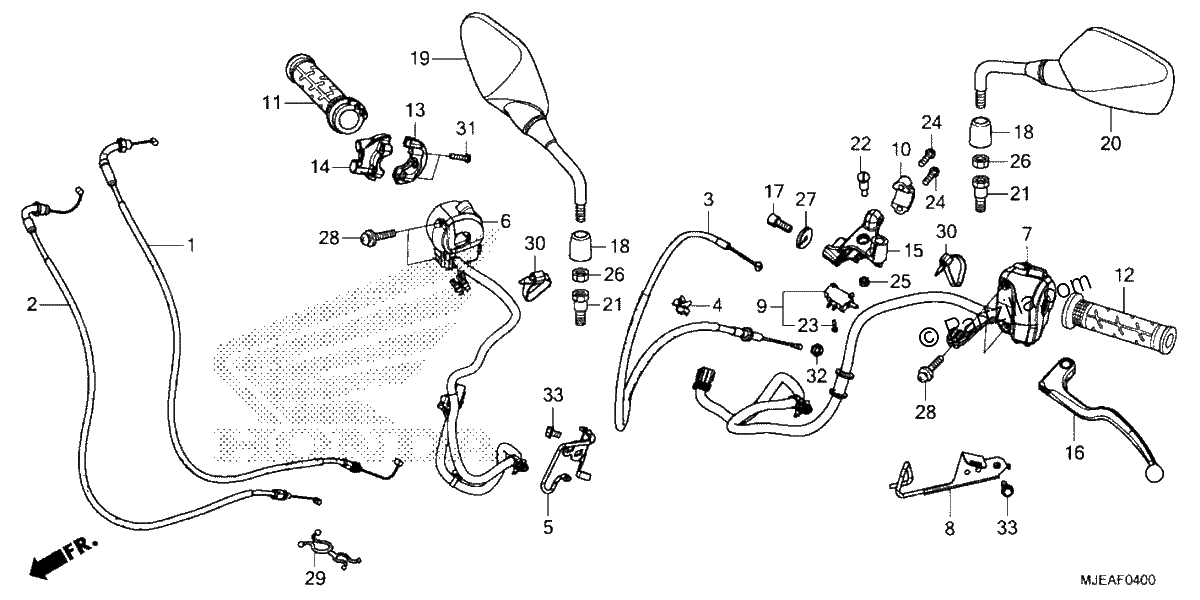

HANDLE LEVER SWITCH CABLE MIRROR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CABLE A, THROTTLE (HI-LEX)
$14.18¢7 088
#002
CABLE B, THROTTLE (HI-LEX)
$13.59¢6 794
#003
CABLE, CLUTCH (HI-LEX)
$15.84¢7 919
#004
CLIP B, HARNESS
$5.04¢2 519
#005
GUIDE, CABLE
$9.29¢4 644
#006
SWITCH ASSY., ENGINE STOP (MINDA)
$110.76¢55 381
#007
SWITCH ASSY., TURN SIGNAL (MINDA)
$219.14¢109 569
#008
STAY, L. CLIP
$12.91¢6 456
#009
SWITCH SET, CLUTCH
$16.56¢8 281
#010
HOLDER, MASTER CYLINDER
$12.66¢6 331
#011
GRIP, THROTTLE (COO)
$32.89¢16 444
#012
GRIP, L HANDLE (COO)
$14.07¢7 038
#013
HOUSING, THROTTLE (UPPER) (Rear.)
$19.57¢9 788
#014
HOUSING, THROTTLE (LOWER) (Front.)
$20.86¢10 431
#015
HOLDER, CLUTCH LEVER
$54.55¢27 275
#016
LEVER, L HANDLE (COO)
$22.44¢11 219
#017
BOLT, WIRE ADJUSTING
$5.64¢2 819
#018
COVER, LOCK NUT
$3.65¢1 825
#019
MIRROR, R. BACK
$123.60¢61 800
#020
MIRROR, L. BACK
$123.60¢61 800
#021
BOLT, ADAPTER (10MM)
$3.93¢1 963
#022
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
#023
SCREW, FLAT (3X16)
$0.80¢400
#024
BOLT, FLANGE (6X22)
$0.61¢306
#025
NUT, U (6MM)
$1.99¢994
#026
NUT, HEX. (10MM) (LEFT HAND THREAD)
$1.47¢737
#027
NUT, FIXING
$12.21¢6 106
#028
SCREW-WASHER (5X16)
$2.40¢1 200
#029
CLIP, PURSE LOCK
$7.30¢3 650
#030
BAND, WIRE
$5.42¢2 713
#031
SCREW, PAN (5X22)
$1.19¢594
#032
NUT, HEX. (8MM)
$1.68¢838
#033
BOLT, FLANGE (6X10)
$1.98¢988
