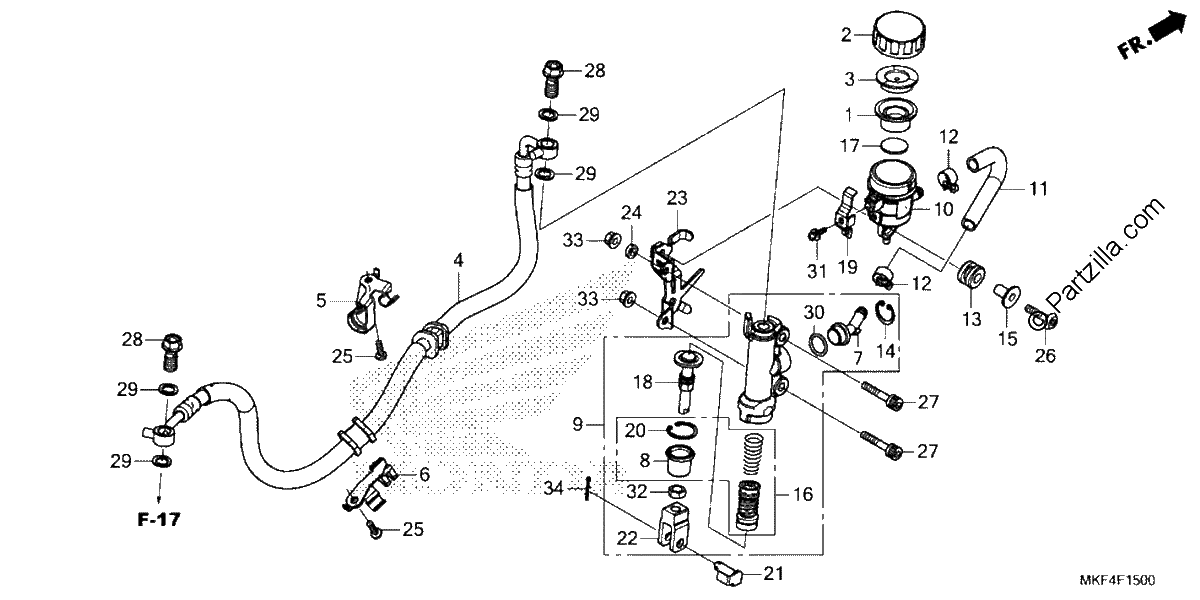

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DIAPHRAGM
$17.63¢8 813
#002
CAP, OIL CUP
$51.22¢25 612
#003
PLATE, DIAPHRAGM
$13.63¢6 813
#004
HOSE, RR. BRAKE
$85.84¢42 919
#005
CLAMP A, RR. BRAKE HOSE
$9.80¢4 900
#006
CLAMP B, RR. BRAKE HOSE
$9.80¢4 900
#007
CONNECTOR, MASTER CYLINDER
$5.39¢2 694
#008
BOOT
$11.74¢5 869
#009
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$247.73¢123 863
#010
CUP, OIL
$27.09¢13 544
#011
HOSE, RR. MASTER CYLINDER
$14.26¢7 131
#012
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#013
RUBBER, OIL CUP MOUNTING
$5.42¢2 713
#014
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#015
COLLAR (6.3X14)
$4.74¢2 369
#016
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#017
FLOAT
$4.04¢2 019
#018
ROD, PUSH
$35.65¢17 825
#019
PLATE, STOP
$6.61¢3 306
#020
CIRCLIP
$2.50¢1 250
#021
PIN, BRAKE ROD
$17.07¢8 538
#022
JOINT, BRAKE ROD
$16.90¢8 450
#023
STAY, RR. MASTER CUP
$15.45¢7 725
#024
COLLAR (6.5X11X3)
$3.65¢1 825
#025
SCREW, PAN (5X15)
$3.49¢1 744
#026
BOLT, SPECIAL (6X25)
$2.88¢1 438
#027
BOLT, SOCKET (6X32)
$2.73¢1 363
#028
BOLT, OIL (10X22)
$8.89¢4 444
#029
WASHER, OIL BOLT
$4.85¢2 425
#030
O-RING (14.8X2.4)
$3.30¢1 650
#031
SCREW-WASHER (4X12)
$1.72¢862
#031
SCREW-WASHER (4X12)
$1.72¢862
#032
NUT, HEX. (8MM)
$1.60¢800
#033
NUT, FLANGE (6MM)
$0.80¢400
#034
PIN, SPLIT (2.0X15)
$1.34¢669
