CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

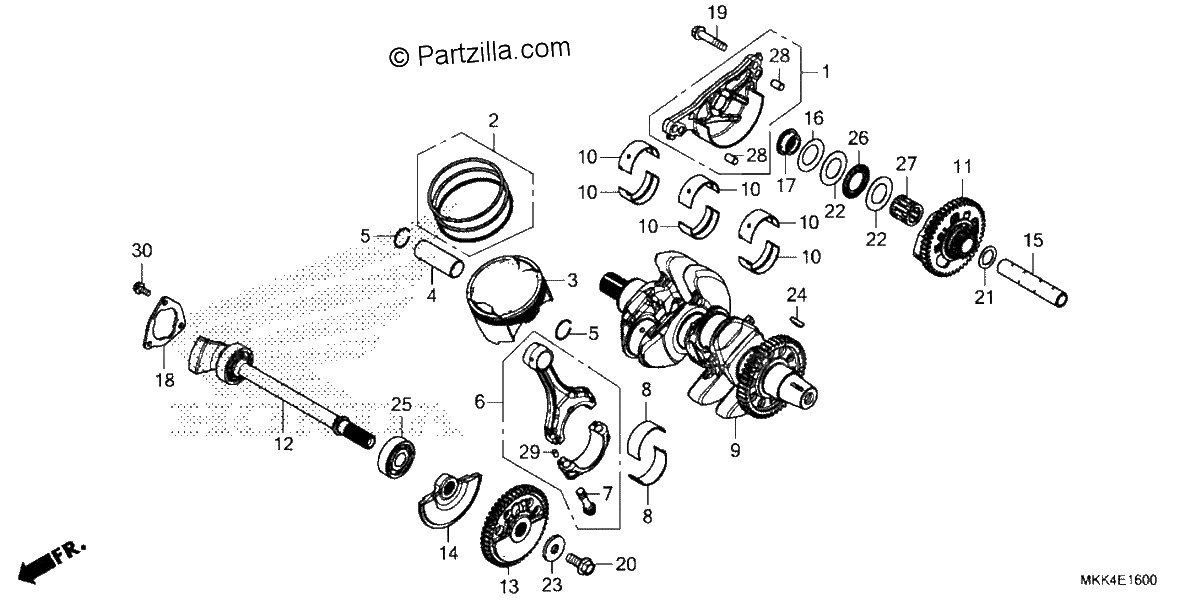

Diagrama de CRANKSHAFT PISTON

Repuestos

#001
11230-MJP-G50
HOLDER, RR. BALANCER SHAFT
$97.09¢48 544
1
#002
13021-MJP-305
RING SET, PISTON (0.25)
$76.51¢38 256
1
#002
13011-MJP-305
RING SET, PISTON (STD)
$76.51¢38 256
1
#003
13101-MJP-G50
PISTON
$181.64¢90 819
1
#003
13102-MJP-305
PISTON (0.25)
$181.64¢90 819
1
#004
13111-MJP-G50
PIN, PISTON
$25.24¢12 619
1
#005
13112-MC7-000
CLIP, PISTON PIN (22MM)
$3.08¢1 538
1
#006
13210-MJP-G50
ROD ASSY., CONNECTING
$268.96¢134 481
1
#007
13213-MJP-G51
BOLT, CONNECTING ROD
$7.97¢3 988
1
#008
13217-MJP-G51
BEARING D, CONNECTING ROD (GREEN)
$13.94¢6 969
1
#008
13218-MJP-G51
BEARING E, CONNECTING ROD (YELLOW)
$13.84¢6 919
1
#008
13215-MJP-G51
BEARING B, CONNECTING ROD (BLACK)
$13.84¢6 919
1
#008
13216-MJP-G51
BEARING C, CONNECTING ROD (BROWN)
$13.84¢6 919
1
#008
13214-MJP-G51
BEARING A, CONNECTING ROD (BLUE)
$13.84¢6 919
1
#009
13300-MJP-G50
CRANKSHAFT
$904.63¢452 313
1
#010
13312-MJP-G51
BEARING A, CRANKSHAFT (BLUE)
$16.02¢8 012
1
#010
13313-MJP-G51
BEARING B, CRANKSHAFT (BLACK)
$16.79¢8 394
1
#010
13314-MJP-G51
BEARING C, CRANKSHAFT (BROWN)
$16.79¢8 394
1
#010
13315-MJP-G51
BEARING D, CRANKSHAFT (GREEN)
$16.79¢8 394
1
#010
13316-MJP-G51
BEARING E, CRANKSHAFT (YELLOW)
$16.02¢8 012
1
#011
13400-MJP-G50
GEAR Assembly., Rear BALANCER (45T/20T)
$559.40¢279 700
1
#012
13420-MKK-D00
SHAFT, FR. BALANCER
$536.23¢268 113
1
#013
13430-MKK-D00
GEAR ASSY., FR. BALANCER (48T)
$340.25¢170 125
1
#014
13433-MJP-DA0
WEIGHT, L. FR. BALANCER
$152.36¢76 181
1
#015
13445-MJP-G50
SHAFT, RR. BALANCER
$34.17¢17 088
1
#016
13446-MJP-G50
SPRING, Rear BALANCER THRUST
$20.00¢10 000
1
#017
13447-MJP-G50
COLLAR, Rear BALANCER
$23.17¢11 587
1
#018
13481-MJP-G50
PLATE, BALANCER BEARING SETTING
$6.85¢3 425
1
#019
90003-MCS-000
BOLT, FLANGE (8X40)
$2.50¢1 250
1
#020
90013-MJP-G50
BOLT, SPECIAL (10X25)
$5.49¢2 744
1
#021
90402-MJP-G50
WASHER (18X27.5X1.0)
$4.53¢2 263
1
#022
90404-MJP-G50
WASHER (25X42X1.0)
$5.84¢2 919
1
#023
90405-MFA-D00
WASHER (10.5X31.8)
$5.32¢2 662
1
#024
90701-KAS-900
KEY, SPECIAL WOODRUFF (25X18)
$6.79¢3 394
1
#025
91002-MJP-G53
BEARING, RADIAL BALL (17X47X14)
$54.40¢27 200
1
#026
91005-MJP-G51
BEARING, THRUST NEEDLE (25X42X2)
$12.41¢6 206
1
#027
91015-MJP-G51
BEARING B, NEEDLE (18X27X26.8)(BLUE)
$27.69¢13 844
1
#027
91016-MJP-G51
BEARING C, NEEDLE (18X27X26.8)(WHITE)
$26.51¢13 256
1
#027
91017-MJP-G51
BEARING D, NEEDLE (18X27X26.8)(GREEN)
$26.51¢13 256
1
#028
94302-08140
PIN B, DOWEL (8X14)
$2.75¢1 375
1
#029
94303-04065
PIN C, DOWEL (4X6.5)
$2.75¢1 375
1
#030
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
