SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

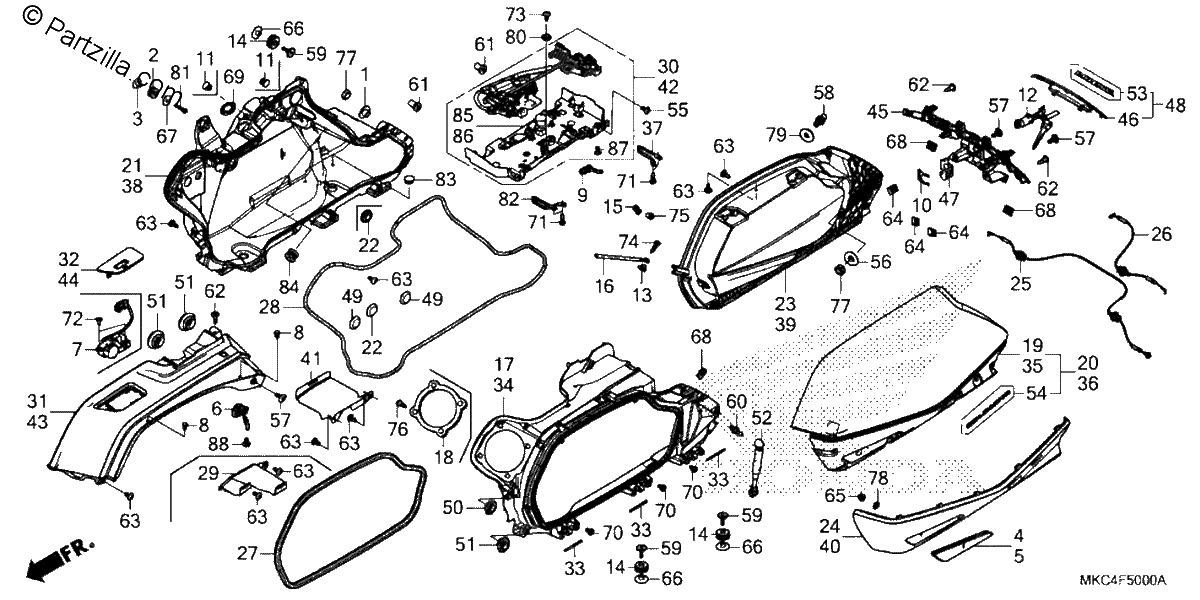

Diagrama de SADDLEBAG

Repuestos

#001
18422-MR1-000
COLLAR (8MM)
$6.66¢3 329
1
#002
19051-KA3-710
RUBBER, RADIATOR MOUNTING
$5.63¢2 818
1
#003
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
1
#004
33743-MKC-A01
REFLECTOR, R. RR. REFLEX
$64.22¢32 108
1
#004
33743-MKC-A02
REFLECTOR, R. RR. REFLEX
$64.22¢32 108
1
#005
33744-MKC-A01
REFLECTOR, L. RR. REFLEX
$64.89¢32 447
1
#005
33744-MKC-A02
REFLECTOR, L. RR. REFLEX
$64.89¢32 447
1
#006
35380-MKC-A01
SWITCH ASSY., LID OPENER
$57.05¢28 526
1
#008
50049-046-000
PLUG, HEAD PIPE
$2.42¢1 208
1
#009
53190-MEN-670
LEVER, HOT STARTER
$18.11¢9 056
1
#010
75581-GN8-920
SPRING, LOCK KEY SETTING
$5.35¢2 674
1
#011
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#012
77234-MKC-A01
KEY, EMERGENCY
No Disponible
1
#013
80103-MCJ-750
COLLAR, FENDER SETTING
$3.06¢1 529
1
#014
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#015
81254-MN5-000
STAY B, LID STOPPER
$5.83¢2 915
1
#016
81255-MKC-A00
CABLE, SADDLEBAG STOPPER
$16.65¢8 326
1
#017
81311-MKC-A10
BODY, R. SADDLEBAG
$860.82¢430 410
1
#018
81315-MKC-A10
COVER, SADDLEBAG SPEAKER
$24.71¢12 357
1
#019
81320-MKC-A00ZB
LID, R. SADDLEBAG (TYPE3)
$872.62¢436 310
1
#019
81320-MKC-A00ZD
LID, R. SADDLEBAG (TYPE1)
$822.59¢411 297
1
#019
81320-MKC-A00ZA
LID, R. SADDLEBAG (TYPE4)
$847.23¢423 614
1
#021
81331-MKC-A00
PANEL, R. SADDLEBAG
$283.13¢141 565
1
#022
81336-MKC-A00
PLUG, BLIND (20MM)
$6.19¢3 093
1
#023
81341-MKC-A00
INNER LID, R. SADDLEBAG
$277.45¢138 724
1
#024
81344-MKC-A00ZA
COVER, R. SADDLEBAG LID *NH1*(BLACK)
$76.79¢38 393
1
#025
81345-MKC-A01
CABLE, R. SADDLEBAG EMERGENCY
$26.79¢13 397
1
#026
81346-MKC-A01
CABLE, L. SADDLEBAG EMERGENCY
$18.17¢9 085
1
#027
81350-MKC-A00
RUBBER, SADDLEBAG LID SEAL
$57.63¢28 813
1
#028
81351-MKC-A00
RUBBER, BACK PANEL SEAL
$26.81¢13 403
1
#029
81359-MKC-A00
GUARD, R. SADDLEBAG HEAT
$21.82¢10 908
1
#030
81365-MKC-A01
CATCH ASSY., R. SADDLEBAG
$364.85¢182 425
1
#031
81393-MKC-A00ZC
COVER, R. SADDLEBAG (UPPER) (TYPE3)
$215.20¢107 600
1
#031
81393-MKC-A00ZE
COVER, R. SADDLEBAG (UPPER) (TYPE1)
$202.79¢101 396
1
#031
81393-MKC-A00ZB
COVER, R. SADDLEBAG (UPPER) (TYPE4)
$208.89¢104 443
1
#032
81395-MKC-A00
COVER, R. SADDLEBAG SWITCH
$30.37¢15 186
1
#033
81401-MKC-A00
PIN, SADDLEBAG HINGE
$5.09¢2 547
1
#034
81411-MKC-A10
BODY, L. SADDLEBAG
$860.82¢430 410
1
#035
81420-MKC-A00ZB
LID, L. SADDLEBAG (TYPE3)
$872.62¢436 310
1
#035
81420-MKC-A00ZD
LID, L. SADDLEBAG (TYPE1)
$822.59¢411 297
1
#035
81420-MKC-A00ZA
LID, L. SADDLEBAG (TYPE4)
$847.23¢423 614
1
#037
81424-MKC-A00
ROD B, SADDLEBAG STRIKER
$18.17¢9 085
1
#038
81431-MKC-A00
PANEL, L. SADDLEBAG
$283.13¢141 565
1
#039
81441-MKC-A00
INNER LID, L. SADDLEBAG
$277.45¢138 724
1
#040
81444-MKC-A00ZA
COVER, L. SADDLEBAG LID *NH1*(BLACK)
$53.16¢26 582
1
#041
81459-MKC-A00
GUARD, L. SADDLEBAG HEAT
$18.17¢9 085
1
#042
81465-MKC-A01
CATCH ASSY., L. SADDLEBAG
$364.85¢182 425
1
#043
81493-MKC-A00ZB
COVER, L. SADDLEBAG (UPPER) (TYPE4)
$208.89¢104 443
1
#043
81493-MKC-A00ZC
COVER, L. SADDLEBAG (UPPER) (TYPE3)
$215.20¢107 600
1
#043
81493-MKC-A00ZE
COVER, L. SADDLEBAG (UPPER) (TYPE1)
$202.79¢101 396
1
#044
81495-MKC-A10
COVER, L. SADDLEBAG SWITCH
$18.53¢9 263
1
#045
81501-MKC-A00
COWL, RR. CENTER SADDLEBAG
$57.42¢28 710
1
#047
81504-MKC-A00
STAY, EMERGENCY CABLE
$9.07¢4 537
1
#048
81505-MKC-A10
COVER SET, RR. CENTER SADDLEBAG (WL)
$36.93¢18 463
1
#049
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
1
#050
83504-GE0-000
GROMMET, RR. COVER
$3.36¢1 679
1
#051
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#052
83590-MKC-A01
DAMPER, SADDLEBAG LID
$63.17¢31 585
1
#053
86102-MKC-A10
EMBLEM, HONDA (100MM)
$32.55¢16 273
1
#055
90001-MG1-000
SCREW, SPECIAL (5X16)
$4.99¢2 496
1
#056
90006-KC5-000
COLLAR A, FENDER SETTING
$2.12¢1 058
1
#057
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.52¢1 759
1
#058
90108-KWR-003
STUD, BALL
$6.88¢3 439
1
#059
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#060
90109-SCK-003
STUD, BALL
$18.17¢9 085
1
#061
90111-MGS-D70
NUT, WELL (5MM)
$3.78¢1 892
1
#062
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#063
90121-MJK-N20
SCREW, TAPPING (5X12)
$2.66¢1 328
1
#064
90301-KE1-003
NUT, SPRING (5MM)
$3.36¢1 679
1
#065
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
1
#066
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#067
90506-430-000
WASHER, FENDER MOUNTING
$3.36¢1 679
1
#068
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#069
90830-T0T-003
GROMMET (30MM)
$0.70¢351
1
#070
93901-24180
SCREW, TAPPING (4X8)
$0.85¢426
1
#071
93901-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#073
93903-24220
SCREW, TAPPING (4X10)
$1.07¢535
1
#074
93903-25420
SCREW, TAPPING (5X20)
$0.77¢385
1
#075
93911-14480
SCREW, TAPPING (4X16)
$1.07¢535
1
#076
93913-25380
SCREW, TAPPING (5X14) (PO)
$1.07¢535
1
#077
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#078
94101-05800
WASHER, PLAIN (5MM)
$1.17¢586
1
#079
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#080
94103-04800
WASHER, PLAIN (4MM)
$1.17¢586
1
#081
96001-06032-00
BOLT, FLANGE (6X32)
$1.66¢828
1
#082
81324-MKC-A00
ROD A, SADDLEBAG STRIKER
$18.17¢9 085
1
#083
50317-254-000
PLUG, HOLE
$2.66¢1 328
1
#084
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#085
81362-MKC-A00
COVER, R. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
1
#086
81462-MKC-A00
COVER, L. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
1
#087
90112-MJK-N20
SCREW (5X12)
$2.66¢1 328
1
#088
93903-32180
SCREW, TAPPING (3X8)
$0.77¢385
1
