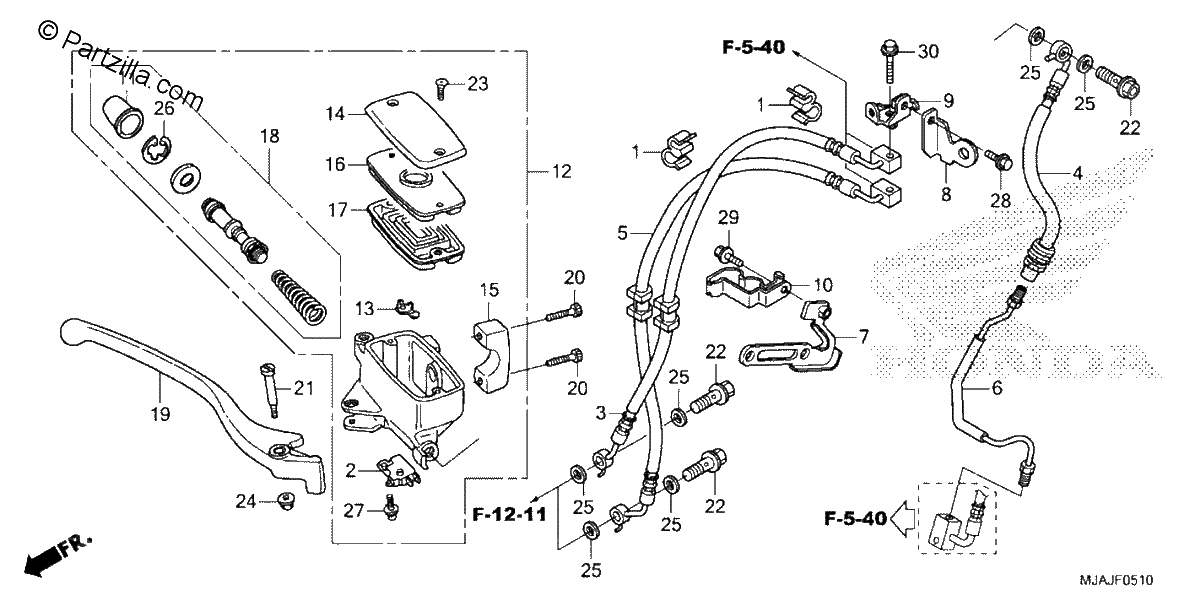

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, PIPE
$8.64¢4 319
#002
SWITCH ASSY., FR. STOP
$16.70¢8 350
#003
SUB-HOSE, RR. BRAKE
$174.65¢87 325
#004
HOSE A, FR. BRAKE
$117.88¢58 938
#005
HOSE B, FR. BRAKE
$152.46¢76 231
#006
PIPE C, FR. BRAKE
$34.51¢17 256
#007
BRACKET, R. FR. HOSE CLIP
$23.94¢11 969
#008
STAY A, FR. BRAKE HOSE
$19.20¢9 600
#009
STAY B, FR. BRAKE HOSE
$24.40¢12 200
#010
CLAMP, FR. BRAKE HOSE SENSOR
$24.24¢12 119
#011
BOOT
$14.24¢7 119
#012
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$262.40¢131 200
#012
MASTER CYLINDER SET, FR. BRAKE (COO) (NISSIN)
$262.40¢131 200
#013
PROTECTOR
$5.20¢2 600
#014
CAP, MASTER CYLINDER (NISSIN)
$23.79¢11 894
#015
HOLDER, MASTER CYLINDER (NISSIN)
$13.38¢6 688
#016
PLATE, DIAPHRAGM
$12.36¢6 181
#017
DIAPHRAGM
$17.68¢8 838
#018
MASTER CYLINDER SET
$58.92¢29 463
#019
LEVER, R. HANDLE (COO)
$21.78¢10 888
#019
LEVER, R. HANDLE
No Disponible
#020
BOLT, SOCKET (6X22)
$1.86¢931
#021
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#022
BOLT, OIL (10X22)
$8.89¢4 444
#023
SCREW, FLAT
$2.76¢1 381
#024
NUT, CAP (6MM)
$2.76¢1 381
#025
WASHER, OIL BOLT
$4.85¢2 425
#026
CIRCLIP
$3.10¢1 550
#027
SCREW-WASHER (4X12)
$1.72¢862
#027
SCREW-WASHER (4X12)
$1.72¢862
#028
BOLT, FLANGE (6X10)
$2.09¢1 044
#029
BOLT, FLANGE (6X12)
$2.31¢1 156
#030
BOLT, FLANGE (6X32)
$1.99¢994
