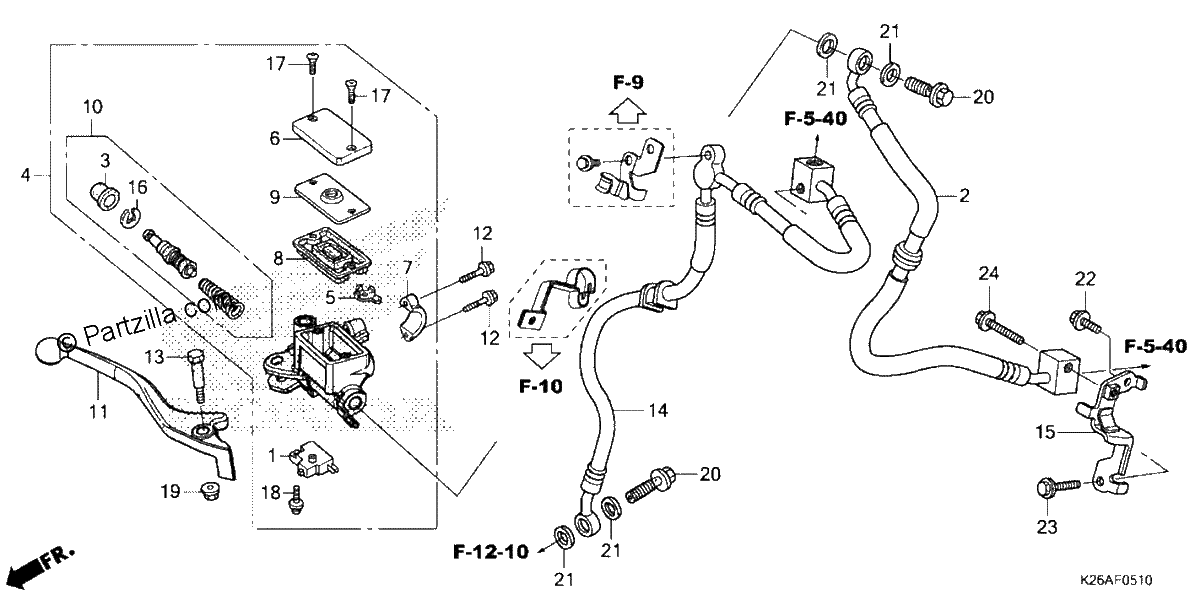

FRONT BRAKE MASTER CYLINDER ABS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE A, FR. BRAKE
$30.13¢15 063
#003
BOOT
$14.24¢7 119
#004
MASTER CYLINDER SUB-ASSY., FR.BRAKE (COO) (NISSIN)
$127.96¢63 981
#005
PROTECTOR
$5.20¢2 600
#006
CAP, MASTER CYLINDER
$31.97¢15 987
#007
HOLDER, MASTER CYLINDER
$15.74¢7 869
#008
DIAPHRAGM
$10.88¢5 438
#009
PLATE, DIAPHRAGM
$2.92¢1 463
#010
MASTER CYLINDER SET
$46.40¢23 200
#011
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
#012
BOLT, FLANGE (6X22)
$2.99¢1 494
#013
BOLT, HANDLE LEVER PIVOT
$1.25¢625
#014
HOSE B, FR. BRAKE
$66.47¢33 238
#015
STAY B, FR. BRAKE HOSE
$14.42¢7 212
#016
CIRCLIP
$3.10¢1 550
#017
SCREW, FLAT (4X12)
$1.16¢581
#017
SCREW, FLAT (4X12)
$1.16¢581
#018
SCREW-WASHER (4X12)
$1.72¢862
#018
SCREW-WASHER (4X12)
$1.72¢862
#019
NUT, FLANGE (6MM)
$0.80¢400
#020
BOLT, OIL (10X22)
$8.89¢4 444
#021
WASHER, OIL BOLT
$4.85¢2 425
#022
BOLT, FLANGE (6X10)
$2.09¢1 044
#023
BOLT, FLANGE (6X20)
$2.09¢1 044
#024
BOLT, FLANGE (6X25)
$2.31¢1 156
