CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

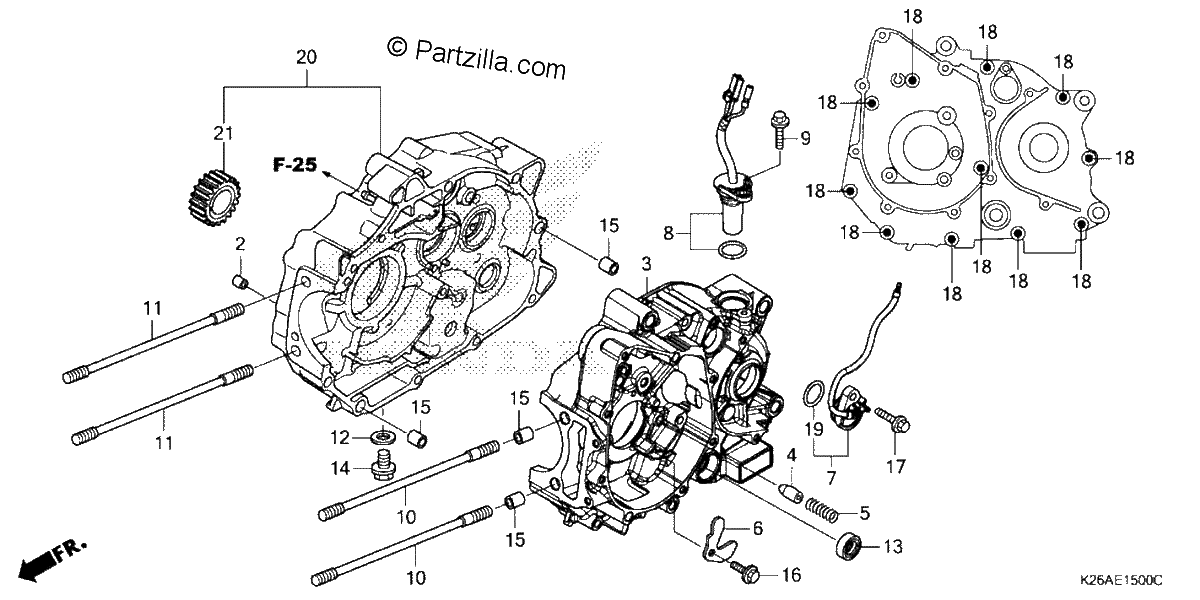

Diagrama de CRANKCASE

Repuestos

#002
11133-KYZ-900
JET, OIL (1.0MM)
$1.32¢661
1
#003
11200-K26-900
CRANKCASE, L.
$261.49¢130 743
1
#004
11215-KYZ-900
PLUG, BEARING PUSH
$3.10¢1 553
1
#005
11216-KYZ-900
SPRING, BEARING PUSH
$0.53¢265
1
#006
11218-KYZ-900
PLATE, OIL STOPPER
$4.45¢2 225
1
#007
35759-K26-C01
CONTACT ASSY., NEUTRAL SWITCH
$35.62¢17 808
1
#008
37700-K26-901
SENSOR ASSY., SPEED
$49.75¢24 874
1
#009
90004-GHB-640
BOLT, FLANGE (6X18) (NSHF)
$3.36¢1 679
1
#010
90031-KPH-900
BOLT, CYLINDER STUD (8X203)
$3.36¢1 679
1
#011
90031-KYZ-900
BOLT, STUD (8X196)
$3.36¢1 679
1
#012
90407-259-000
GASKET, DRAIN PETCOCK (12.5X20)
$3.36¢1 679
1
#013
91208-KPH-901
OIL SEAL (11.6X24X10) (ARAI)
$1.77¢886
1
#014
92800-12000
BOLT, DRAIN PLUG (12MM)
$3.60¢1 800
1
#015
94301-10120
PIN, DOWEL (10X12)
$2.70¢1 351
1
#016
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#017
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#018
96001-06060-00
BOLT, FLANGE (6X60)
$2.56¢1 282
1
#019
91301-HP2-671
O-RING (21X2.4)
$2.75¢1 374
1
#020
11010-K26-900
CRANKCASE SET, R.
$282.92¢141 462
1
#021
23124-K26-900
GEAR D, PRIMARY DRIVE (20T)
$60.77¢30 383
1
#021
23123-K26-900
GEAR C, PRIMARY DRIVE (20T)
$63.51¢31 757
1
#021
23122-K26-900
GEAR B, PRIMARY DRIVE (20T)
$63.51¢31 757
1
#021
23121-K26-900
GEAR A, PRIMARY DRIVE (20T)
$63.51¢31 757
1
