HEADLIGHT 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

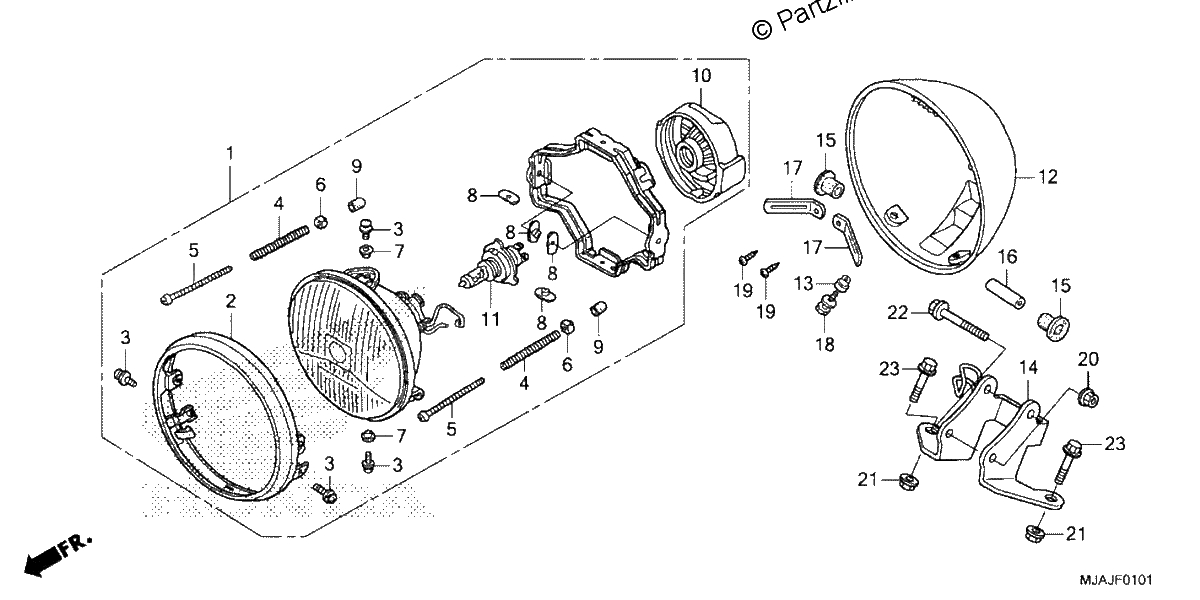

Diagrama de HEADLIGHT 2

Repuestos

#001
33100-MFE-306
HEADLIGHT ASSY. (12V 60/55W) (COO)
$306.82¢153 413
1
#001
33100-MFE-A41
HEADLIGHT Assembly. (12V 60/55W) (STANLEY)
$306.82¢153 413
1
#002
33101-MFE-A41
RIM, HEADLIGHT
$44.70¢22 350
1
#003
33104-MAH-671
SCREW-WASHER
$4.86¢2 431
1
#004
33108-MM2-003
SPRING, BEAM ADJUSTING
$4.20¢2 100
1
#005
33114-GE1-670
SCREW, BEAM ADJUSTING
$6.39¢3 194
1
#006
33118-438-841
NUT, BEAM ADJUSTING
$2.88¢1 438
1
#007
33127-MAA-A31
SPACER
$2.79¢1 394
1
#008
33128-MAA-A31
NUT, UNIT HOLDER
$2.89¢1 444
1
#009
33136-426-830
COVER, SCREW
$2.41¢1 206
1
#010
33180-MR7-003
COVER, RUBBER
$16.53¢8 263
1
#011
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$43.17¢21 588
1
#012
61301-MFE-A41
CASE, HEADLIGHT
$130.00¢65 000
1
#013
61304-KR3-980
COLLAR, HEADLIGHT SETTING
$6.26¢3 131
1
#014
61311-MFE-A40
STAY, HEADLIGHT
$30.20¢15 100
1
#015
61315-MK7-000
RUBBER, HEADLIGHT MOUNTING
$3.65¢1 825
1
#016
61316-MK7-000
COLLAR, HEADLIGHT STAY
$3.65¢1 825
1
#017
91416-PA1-000
CLIP, WIRE HARNESS (4X100)
$7.15¢3 575
1
#018
93402-05020-00
BOLT-WASHER (5X20)
$1.34¢669
1
#019
93913-24110
SCREW, TAPPING (4X10) (PO)
$1.16¢581
1
#020
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#021
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#022
95701-06050-07
BOLT, FLANGE (6X50)
$1.79¢894
1
#023
95801-08045-07
BOLT, FLANGE (8X45)
$2.92¢1 463
1
