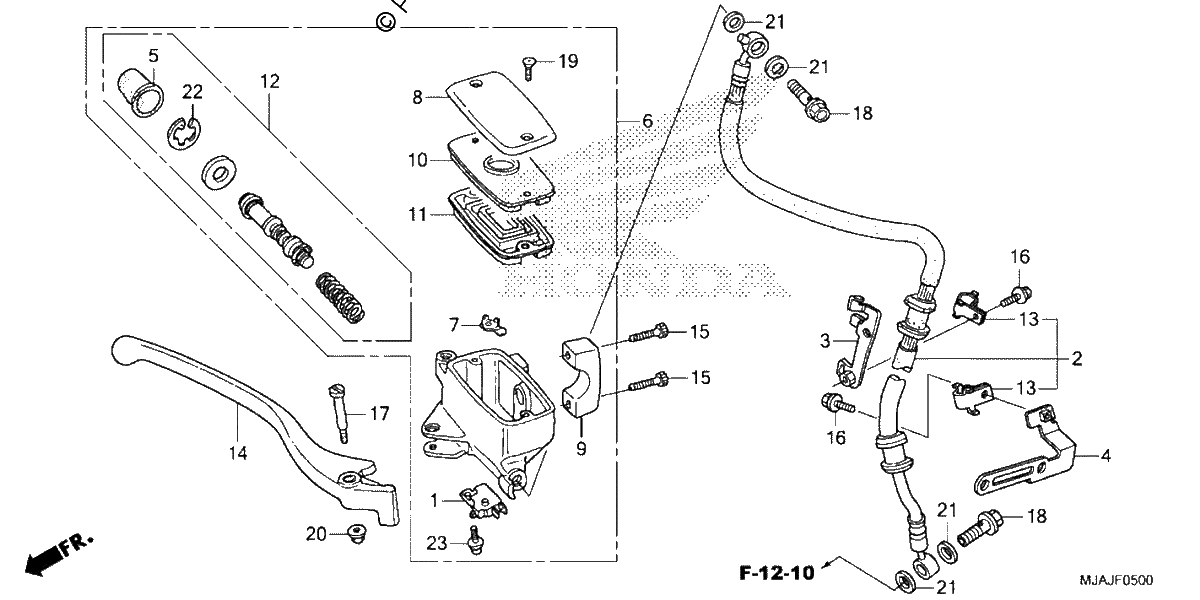

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP
$15.36¢7 682
#002
HOSE, FR. BRAKE
$83.31¢41 653
#002
HOSE, Front BRAKE
$83.31¢41 653
#003
STAY, FR. BRAKE HOSE
$11.35¢5 675
#004
BRACKET, R. FR. HOSE CLIP
$9.79¢4 893
#005
BOOT
$13.10¢6 549
#006
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$249.52¢124 758
#006
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$249.52¢124 758
#007
PROTECTOR
$4.78¢2 392
#008
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#009
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
#010
PLATE, DIAPHRAGM
$11.37¢5 687
#011
DIAPHRAGM
$16.26¢8 131
#012
MASTER CYLINDER SET
$54.21¢27 106
#013
CLAMP, BRAKE HOSE
$6.43¢3 214
#014
LEVER, Right HANDLE
$17.54¢8 769
#014
LEVER, R. HANDLE (COO)
$17.54¢8 769
#015
BOLT, SOCKET (6X22)
$1.71¢857
#016
BOLT, FLANGE (6X12)
$1.53¢765
#017
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#018
BOLT, OIL (10X22)
$8.18¢4 088
#019
SCREW, FLAT (4X12)
$1.07¢535
#019
SCREW, FLAT (4X12)
$1.07¢535
#020
NUT, CAP (6MM)
$2.54¢1 271
#021
WASHER, OIL BOLT
$4.46¢2 231
#022
CIRCLIP
$2.85¢1 426
#023
SCREW-WASHER (4X12)
$1.59¢793
#023
SCREW-WASHER (4X12)
$1.59¢793
