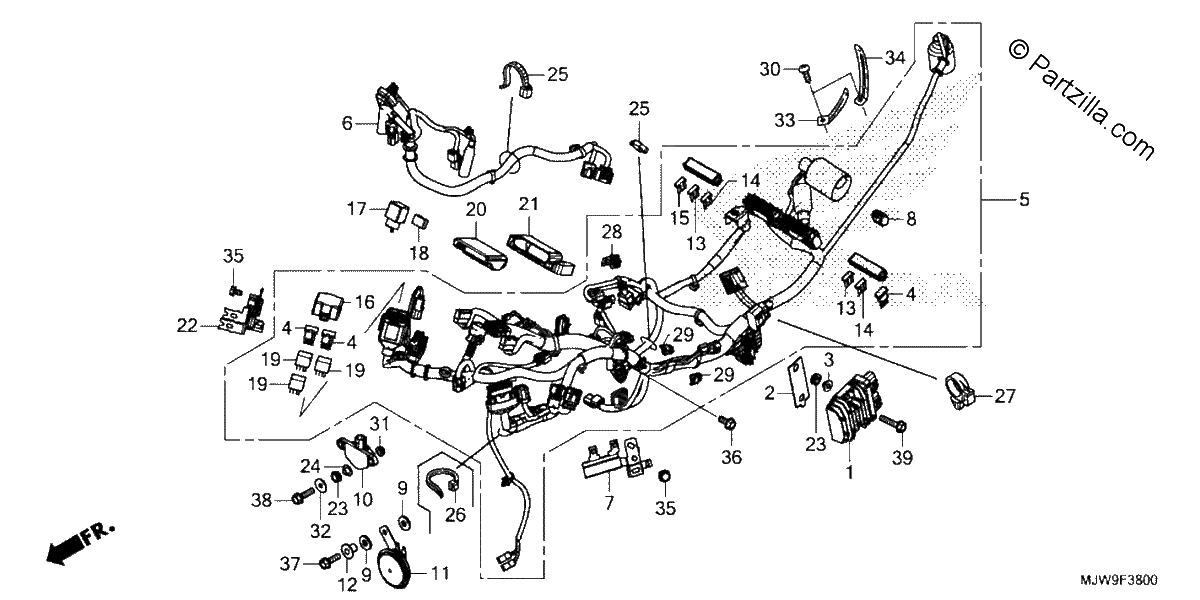

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$201.64¢100 821
#002
PLATE, REGULATE RECTIFIER
$1.86¢932
#003
COLLAR, REGULATOR RECTIFIER
$1.81¢903
#004
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#005
WIRE HARNESS
$1267.75¢633 874
#006
SUB-HARNESS, FR.
$78.11¢39 054
#007
STAY, CONNECTOR
$9.26¢4 629
#008
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#009
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#010
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#011
HORN (HIGH)
$41.48¢20 740
#012
COLLAR, HORN SETTING
$0.91¢454
#013
FUSE, BLADE (7.5A)
$3.46¢1 731
#014
FUSE, BLADE (15A)
$4.42¢2 208
#015
FUSE, BLADE (30A)
$2.86¢1 432
#016
COVER, RELAY BOX
$17.33¢8 665
#017
RELAY, TURN SIGNAL (MITSUBA)
$59.04¢29 521
#018
SUSPENSION, TURN SIGNAL RELAY
$6.35¢3 174
#019
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#020
PGM-FI UNIT
$394.53¢197 265
#021
CUSHION, PGM-FI UNIT
$4.94¢2 472
#022
STAY, RELAY BOX
$10.99¢5 497
#023
RUBBER, SIDE COVER
$2.30¢1 150
#024
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#025
BAND, WIRE (95MM)
$3.47¢1 737
#027
CLAMP, HARNESS
$6.64¢3 318
#028
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#029
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#030
SCREW, TAPPING (4X12)
$1.07¢535
#031
NUT, FLANGE (6MM)
$0.74¢368
#032
WASHER, PLAIN (6MM)
$0.92¢460
#033
CLIP, WIRE
$3.53¢1 765
#034
CLIP (4X90)
$3.36¢1 679
#035
BOLT, FLANGE (6X10)
$1.49¢747
#036
BOLT, FLANGE (6X14)
$1.92¢960
#037
BOLT, FLANGE (6X20)
$1.92¢960
#038
BOLT, FLANGE (6X22)
$2.04¢1 018
#039
BOLT, FLANGE (6X28)
$2.59¢1 294
