SADDLEBAG

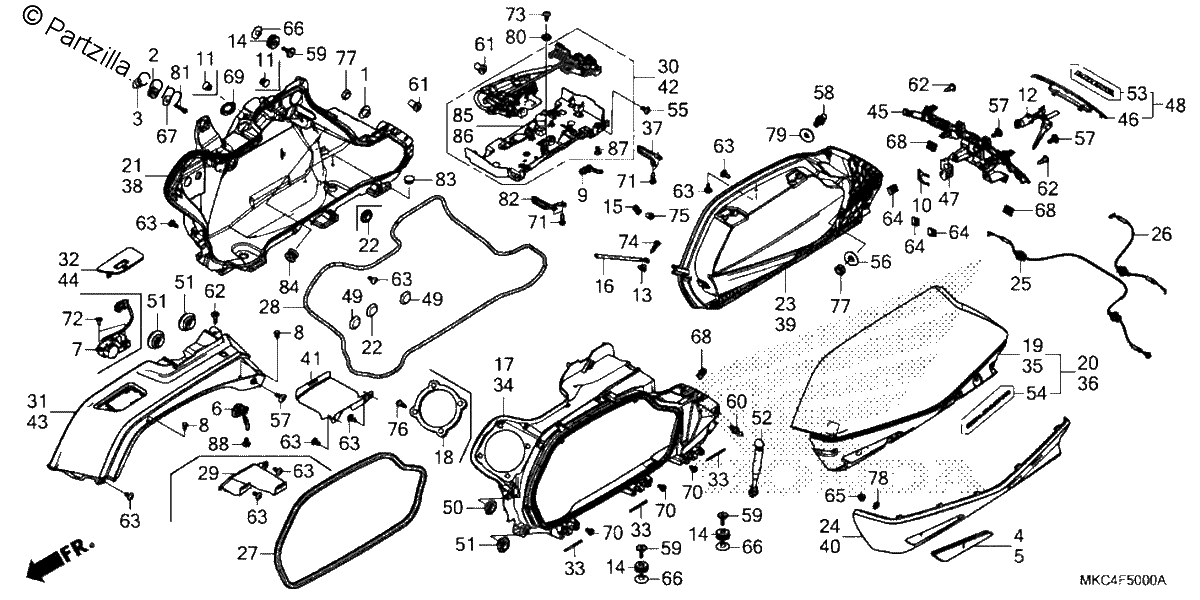

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR (8MM)
$7.24¢3 619
#002
RUBBER, RADIATOR MOUNTING
$6.13¢3 063
#003
COLLAR, RADIATOR MOUNTING
$8.39¢4 194
#004
REFLECTOR, R. RR. REFLEX
$69.80¢34 900
#004
REFLECTOR, R. RR. REFLEX
$69.80¢34 900
#005
REFLECTOR, L. RR. REFLEX
$70.54¢35 269
#005
REFLECTOR, L. RR. REFLEX
$70.54¢35 269
#006
SWITCH ASSY., LID OPENER
$62.01¢31 006
#007
SWITCH ASSY., PASSENGER
$116.63¢58 313
#008
PLUG, HEAD PIPE
$2.63¢1 313
#009
LEVER, HOT STARTER
$19.69¢9 844
#010
SPRING, LOCK KEY SETTING
$5.81¢2 906
#011
RUBBER, SEAT SIDE
$5.99¢2 994
#012
KEY, EMERGENCY
No Disponible
#013
COLLAR, FENDER SETTING
$3.33¢1 663
#014
RUBBER, SADDLEBAG MOUNTING
$18.27¢9 138
#015
STAY B, LID STOPPER
$6.34¢3 169
#016
CABLE, SADDLEBAG STOPPER
$18.10¢9 050
#017
BODY, R. SADDLEBAG
$935.67¢467 838
#019
LID, R. SADDLEBAG (TYPE2)
$894.13¢447 063
#019
LID, R. SADDLEBAG (TYPE1)
$894.13¢447 063
#021
PANEL, R. SADDLEBAG
$307.75¢153 875
#022
PLUG, BLIND (20MM)
$6.72¢3 363
#023
INNER LID, R. SADDLEBAG
$301.57¢150 788
#024
COVER, R. SADDLEBAG LID *NH1*(BLACK)
$83.46¢41 731
#025
CABLE, R. SADDLEBAG EMERGENCY
$29.13¢14 563
#026
CABLE, L. SADDLEBAG EMERGENCY
$19.75¢9 875
#027
RUBBER, SADDLEBAG LID SEAL
$62.64¢31 319
#028
RUBBER, BACK PANEL SEAL
$29.14¢14 569
#029
GUARD, R. SADDLEBAG HEAT
$23.71¢11 856
#030
CATCH ASSY., R. SADDLEBAG
$396.57¢198 288
#031
COVER, R. SADDLEBAG (UPPER) (TYPE1)
$220.43¢110 213
#031
COVER, R. SADDLEBAG (UPPER) (TYPE2)
$220.43¢110 213
#032
COVER, R. SADDLEBAG SWITCH
$33.01¢16 506
#033
PIN, SADDLEBAG HINGE
$5.54¢2 769
#034
BODY, L. SADDLEBAG
$935.67¢467 838
#035
LID, L. SADDLEBAG (TYPE2)
$894.13¢447 063
#035
LID, L. SADDLEBAG (TYPE1)
$894.13¢447 063
#037
ROD B, SADDLEBAG STRIKER
$19.75¢9 875
#038
PANEL, L. SADDLEBAG
$307.75¢153 875
#039
INNER LID, L. SADDLEBAG
$301.57¢150 788
#040
COVER, L. SADDLEBAG LID *NH1*(BLACK)
$57.79¢28 894
#041
GUARD, L. SADDLEBAG HEAT
$19.75¢9 875
#042
CATCH ASSY., L. SADDLEBAG
$396.57¢198 288
#043
COVER, L. SADDLEBAG (UPPER) (TYPE2)
$220.43¢110 213
#043
COVER, L. SADDLEBAG (UPPER) (TYPE1)
$220.43¢110 213
#044
COVER, L. SADDLEBAG SWITCH
$33.01¢16 506
#045
COWL, RR. CENTER SADDLEBAG
$62.41¢31 206
#046
COVER, RR. CENTER SADDLEBAG
$20.38¢10 188
#047
STAY, EMERGENCY CABLE
$9.86¢4 931
#049
GROMMET, DRAIN HOLE (25MM)
$5.41¢2 706
#050
GROMMET, RR. COVER
$3.65¢1 825
#051
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#052
DAMPER, SADDLEBAG LID
$68.66¢34 331
#055
SCREW, SPECIAL (5X16)
$5.42¢2 713
#056
COLLAR A, FENDER SETTING
$2.30¢1 150
#057
SCREW, SPECIAL (5X14)
$3.83¢1 913
#058
STUD, BALL
$7.48¢3 738
#059
SCREW, SPECIAL (6MM)
$4.81¢2 406
#060
STUD, BALL
$19.75¢9 875
#061
NUT, WELL (5MM)
$4.11¢2 056
#062
CLIP, BUMPER SEAL
$5.72¢2 863
#063
SCREW, TAPPING (5X12)
$2.89¢1 444
#064
NUT, SPRING (5MM)
$3.65¢1 825
#065
NUT, FLANGE (5MM) (FUSE RASHI)
$6.00¢3 000
#066
COLLAR, SADDLEBAG MOUNTING
$6.13¢3 063
#067
WASHER, FENDER MOUNTING
$3.65¢1 825
#068
NUT, CLIP (5MM)
$4.94¢2 469
#069
GROMMET (30MM)
$0.76¢381
#070
SCREW, TAPPING (4X8)
$0.93¢463
#071
SCREW, TAPPING (5X16)
$1.16¢581
#072
SCREW, TAPPING (4X10)
$1.74¢869
#073
SCREW, TAPPING (4X10)
$1.16¢581
#074
SCREW, TAPPING (5X20)
$0.84¢419
#075
SCREW, TAPPING (4X16)
$1.16¢581
#077
NUT, HEX. (8MM)
$1.68¢838
#078
WASHER, PLAIN (5MM)
$1.27¢638
#079
WASHER, PLAIN (8MM)
$1.06¢531
#080
WASHER, PLAIN (4MM)
$1.27¢638
#081
BOLT, FLANGE (6X32)
$1.80¢900
#082
ROD A, SADDLEBAG STRIKER
$19.75¢9 875
#083
PLUG, HOLE
$2.89¢1 444
#084
PLUG, HOLE
$2.71¢1 356
#085
COVER, R. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
#086
COVER, L. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
#087
SCREW (5X12)
$2.89¢1 444
#088
SCREW, TAPPING (3X8)
$0.84¢419
