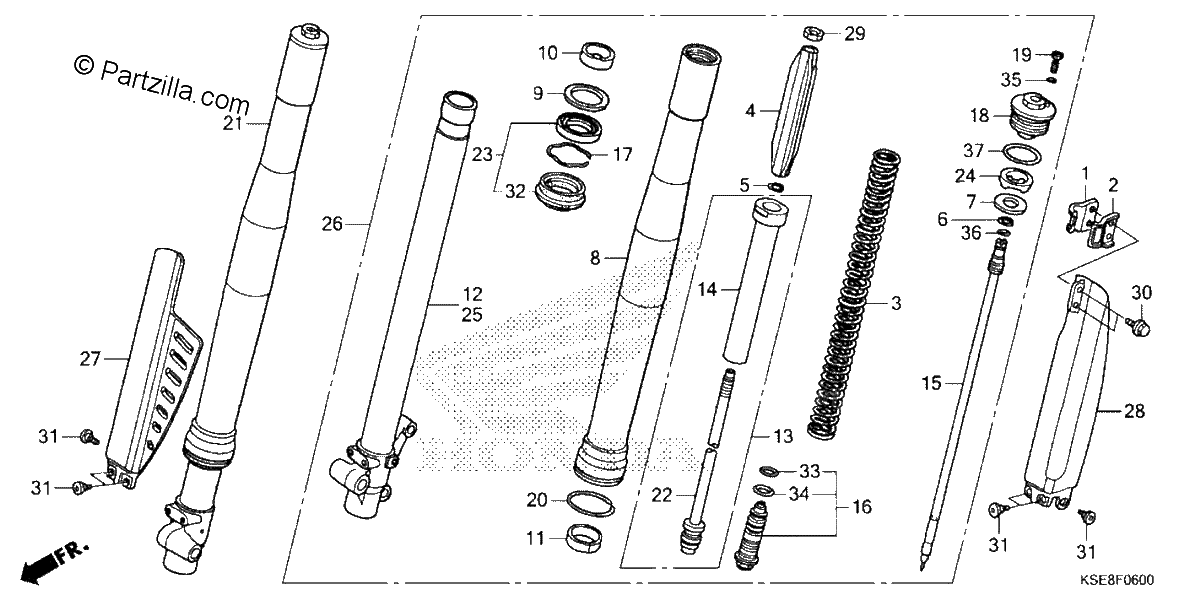

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, FR. BRAKE HOSE
$12.45¢6 225
#002
CLAMP B, FR. BRAKE HOSE
$10.95¢5 475
#003
SPRING, FR. FORK (3.33N/MM,0.34KGF/MM)
$85.76¢42 881
#003
SPRING, FR. FORK (3.53N/MM,0.36KGF/MM)
$89.63¢44 813
#003
SPRING, FR. FORK (3.14N/MM,0.32KGF/MM)
$74.23¢37 113
#004
GUIDE, SPRING
$33.03¢16 513
#005
RING, STOPPER
$5.42¢2 713
#006
RING, STOPPER
$3.08¢1 538
#007
SEAT, SPRING
$6.34¢3 169
#008
TUBE (OUTER) (COO)
$484.01¢242 006
#009
RING, BACK-UP
$8.54¢4 269
#010
BUSH, GUIDE
$12.01¢6 006
#011
BUSH, SLIDER
$10.41¢5 206
#012
PIPE, R. SLIDE
$366.80¢183 400
#013
DAMPER, FR.
$225.13¢112 563
#014
DAMPER SUB, FR.
$159.63¢79 813
#015
NEEDLE, REBOUND
$39.86¢19 931
#016
BOLT, CENTER (SHOWA)
$79.97¢39 988
#017
RING, OIL SEAL STOPPER
$4.58¢2 288
#018
BOLT, FR. FORK
$70.75¢35 375
#019
BOLT, PLUG
$11.20¢5 600
#020
RING, WEAR
$4.19¢2 094
#021
FORK SUB-ASSY., R. FR. (SHOWA)
$1058.30¢529 150
#022
ROD, PISTON
$103.18¢51 588
#023
SEAL SET, FR. FORK
$28.44¢14 219
#024
RUBBER, STOPPER
$7.51¢3 756
#025
PIPE, L. SLIDE
$366.80¢183 400
#026
FORK SUB-ASSY., L. FR. (SHOWA)
$1058.30¢529 150
#027
PROTECTOR, R. FR. FORK
$86.96¢43 481
#028
PROTECTOR, L. FR. FORK
$86.96¢43 481
#029
NUT, HEX. (10MM)
$3.20¢1 600
#030
BOLT, FLANGE (6MM)
$3.65¢1 825
#031
BOLT, PROTECTOR
$4.28¢2 138
#032
DUST SEAL
$15.51¢7 756
#033
O-RING (15.5X1.5)
$1.95¢975
#034
O-RING (18.8X1.9)
$3.50¢1 750
#035
O-RING (2.8X1.9)
$2.60¢1 300
#036
O-RING
$3.36¢1 681
#037
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
