TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

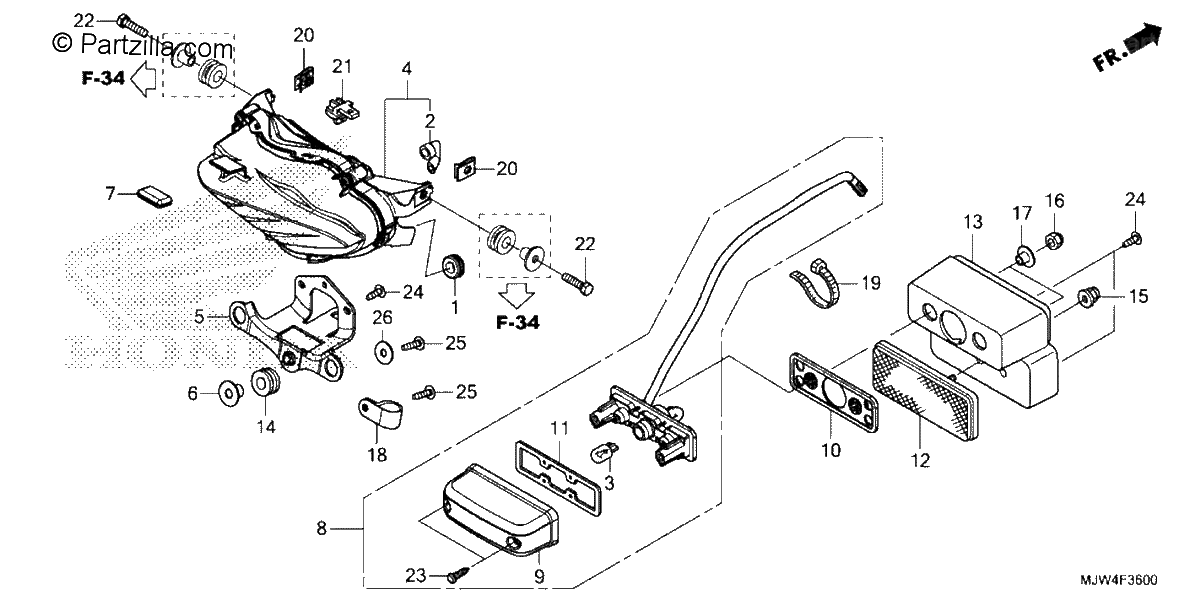

Diagrama de TAILLIGHT

Repuestos

#001
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.65¢1 825
1
#002
33113-MJW-J80
TUBE, VENT
$1.15¢575
1
#003
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#004
33701-MJW-A81
TAILLIGHT UNIT
$319.55¢159 775
1
#005
33702-MJW-J80
STAY, TAILLIGHT
$8.28¢4 138
1
#006
33705-MGZ-J00
COLLAR, TAILLIGHT
$1.95¢975
1
#007
33706-MFN-D00
SUSPENSION, TAILLIGHT
$1.15¢575
1
#008
33720-MGZ-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$66.92¢33 463
1
#008
33720-MGZ-A01
LIGHT ASSY., LICENSE (12V 5W)
$66.92¢33 463
1
#009
33722-K26-305
COVER, LICENSE (COO)
$13.20¢6 600
1
#009
33722-KWN-901
COVER, LICENSE
$13.20¢6 600
1
#010
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.51¢2 756
1
#011
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#012
33741-KPL-902
REFLECTOR, REFLEX
$8.94¢4 469
1
#013
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.95¢4 975
1
#014
83545-KCJ-690
RUBBER, SIDE COVER
$1.80¢900
1
#015
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#016
90302-KVB-T01
NUT, U (5MM)
$2.31¢1 156
1
#017
90505-MGZ-A00
COLLAR
$2.24¢1 119
1
#018
90628-750-000
CLIP (14MM)
$2.84¢1 419
1
#019
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#020
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#021
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
1
#022
92101-05020-0A
BOLT, HEX. (5X20)
$1.50¢750
1
#023
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#024
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#025
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#026
94103-04000
WASHER, PLAIN (4MM)
$0.93¢463
1
