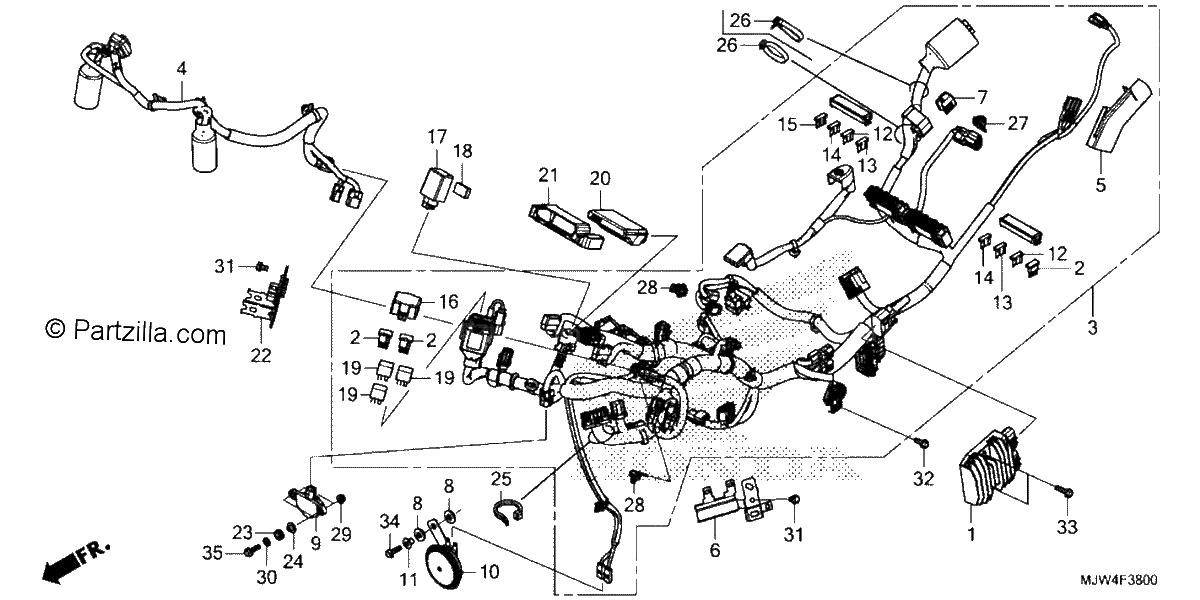

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$219.18¢109 588
#002
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#003
WIRE HARNESS
$1343.79¢671 894
#004
SUB-HARNESS, Front.
$92.48¢46 238
#005
SUSPENSION, CONNECTOR
$31.09¢15 544
#006
STAY, CONNECTOR
$10.06¢5 031
#007
CAP, DUMMY (4P) (RED)
$5.83¢2 913
#008
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#009
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
#010
HORN (HIGH)
$45.09¢22 544
#011
COLLAR, HORN SETTING
$0.99¢494
#012
FUSE, BLADE (7.5A)
$3.76¢1 881
#013
FUSE, BLADE (10A)
$3.76¢1 881
#014
FUSE, BLADE (15A)
$4.80¢2 400
#015
FUSE, BLADE (30A)
$3.11¢1 556
#016
COVER, RELAY BOX
$18.84¢9 419
#017
RELAY, TURN SIGNAL (MITSUBA)
$64.18¢32 088
#018
SUSPENSION, TURN SIGNAL RELAY
$6.90¢3 450
#019
RELAY ASSY., POWER (MICRO ISO 4P)
$5.64¢2 819
#020
PGM-FI UNIT
$410.38¢205 188
#021
CUSHION, PGM-FI UNIT
$5.38¢2 688
#022
STAY, RELAY BOX
$12.15¢6 075
#023
RUBBER, SIDE COVER
$2.50¢1 250
#024
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#026
BAND, WIRE (BLACK)
$5.42¢2 713
#027
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
#028
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#029
NUT, FLANGE (6MM)
$0.80¢400
#030
WASHER, PLAIN (6MM)
$1.00¢500
#031
BOLT, FLANGE (6X10)
$1.63¢813
#032
BOLT, FLANGE (6X14)
$2.09¢1 044
#033
BOLT, FLANGE (6X20)
$2.27¢1 138
#034
BOLT, FLANGE (6X20)
$2.09¢1 044
#035
BOLT, FLANGE (6X22)
$2.21¢1 106
