LUGGAGE BOX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

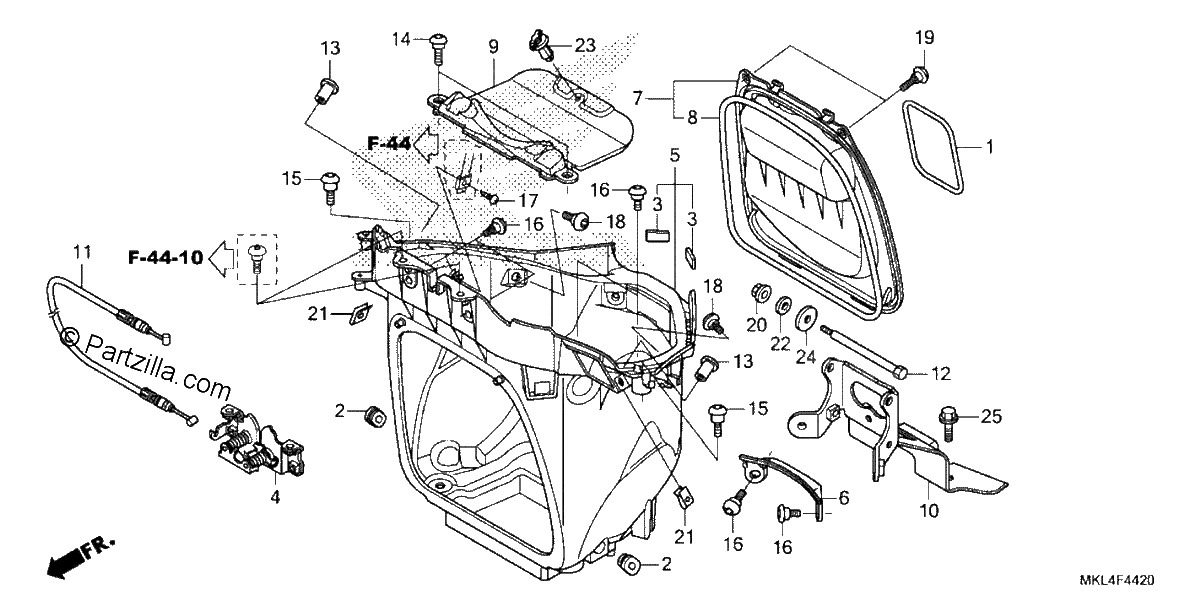

Diagrama de LUGGAGE BOX

Repuestos

#001
50290-MZ7-000
BAND, U-LOCK
$23.13¢11 563
1
#002
64266-MG9-770
GROMMET, SPEAKER PANEL
$3.65¢1 825
1
#003
81304-MGS-D30
SEAL, LUGGAGE TRAY
$0.79¢394
1
#004
81310-MGS-D31
CATCH, LID
$62.30¢31 150
1
#005
81320-MGS-D30
BOX Assembly., LUGGAGE
$186.25¢93 125
1
#006
81330-MGS-D30
TRAY, LUGGAGE BOX
$4.29¢2 144
1
#007
81340-MGS-D30
LID Assembly., MAINTENANCE
$56.60¢28 300
1
#008
81351-MGS-D30
SEAL, MAINTENANCE LID
$9.53¢4 763
1
#009
81360-MGS-D30
LID, OWNERS MANUAL BOX
$11.92¢5 962
1
#010
82122-MGS-D30
BRACKET, HINGE
$52.53¢26 263
1
#011
82140-MGS-D31
CABLE, LID OPEN
$20.94¢10 469
1
#012
90109-MGS-D30
BOLT, HINGE
$5.07¢2 537
1
#013
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#014
90114-MFL-000
SCREW, SPECIAL (6X16)
$2.91¢1 456
1
#015
90117-MGS-D30
SCREW, PAN (6X16)
$4.58¢2 288
1
#016
90118-MJK-N20
SCREW, SPECIAL (6X14)
$3.49¢1 744
1
#017
90120-MJK-N20
SCREW, TAPPING (4X12)
$2.91¢1 456
1
#018
90122-MJK-N20
SCREW, SPECIAL (5X11)
$3.20¢1 600
1
#019
90150-MBG-000
SCREW, PAN (5X15)
$3.24¢1 619
1
#020
90301-MG3-000
NUT, U (6MM)
$8.39¢4 194
1
#021
90320-GC3-000
NUT, SPRING (5MM)
$2.97¢1 487
1
#022
90403-MFA-D00
WASHER (6MM)
$2.21¢1 106
1
#023
90683-GAZ-003
CLIP, TRIM
$4.61¢2 306
1
#024
94102-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#025
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
