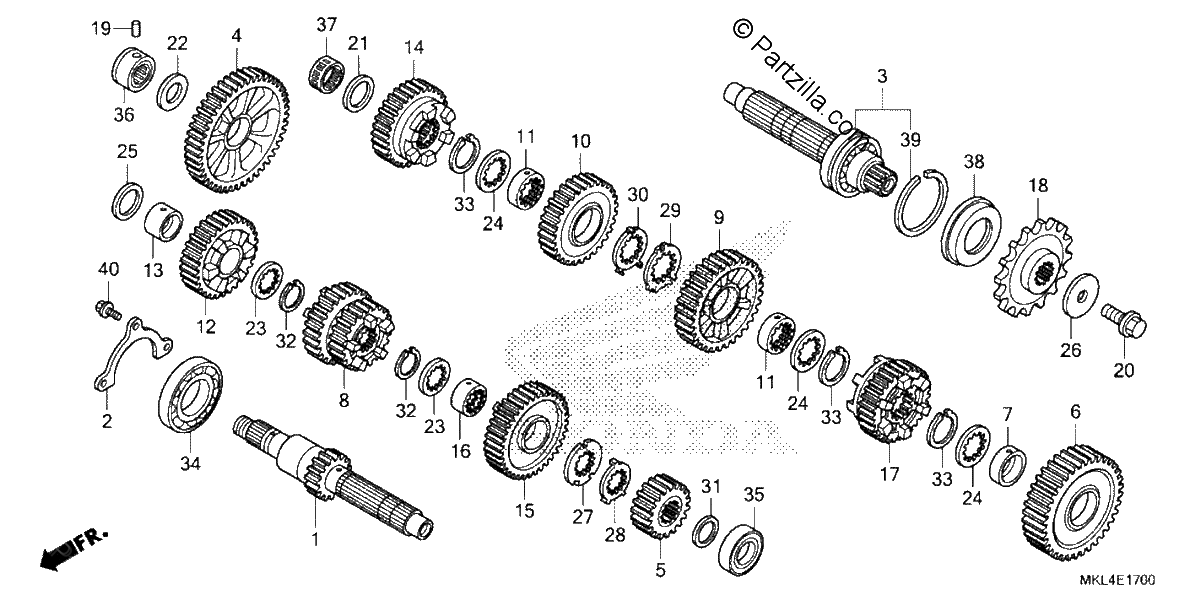

TRANSMISSION NC750X XA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (16T)
$297.09¢148 544
#002
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
#003
COUNTERSHAFT
$316.25¢158 125
#004
GEAR, COUNTER FIRST (45T)
$231.68¢115 838
#005
GEAR, MAINSHAFT SECOND (19T)
$93.20¢46 600
#006
GEAR, COUNTERSHAFT SECOND (36T)
$183.63¢91 813
#007
COLLAR (28MM)
$25.85¢12 925
#008
GEAR, MAINSHAFT THIRD & FOURTH(22T/25T)
$220.32¢110 163
#009
GEAR, COUNTERSHAFT THIRD (32T)
$121.50¢60 750
#010
GEAR, COUNTER FOURTH (30T)
$110.25¢55 125
#011
COLLAR, SPLINE (28X31X9)
$24.69¢12 344
#012
GEAR, MAINSHAFT FIFTH (30T)
$121.50¢60 750
#013
COLLAR (25X28X19)
$11.76¢5 881
#014
GEAR, COUNTERSHAFT FIFTH (31T)
$217.50¢108 750
#015
GEAR, MAINSHAFT SIXTH (37T)
$137.01¢68 506
#016
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
#017
GEAR, COUNTERSHAFT SIXTH (31T)
$189.24¢94 619
#018
SPROCKET, DRIVE (17T)
$91.95¢45 975
#019
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
#020
BOLT, SPECIAL (10MM)
$8.89¢4 444
#021
WASHER, THRUST (24X32X1.5)
$2.91¢1 456
#022
WASHER A, THRUST (20MM)
$4.13¢2 063
#023
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
#024
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
#025
WASHER, THRUST (25MM)
$3.26¢1 631
#026
WASHER (10.2MM)
$7.08¢3 538
#027
WASHER, SPLINE (25MM)
$7.15¢3 575
#028
WASHER, LOCK (25MM)
$8.79¢4 394
#029
WASHER, SPLINE (28MM)
$13.61¢6 806
#030
WASHER, LOCK (28MM)
$13.61¢6 806
#031
WASHER, THRUST (20X0.9)
$6.19¢3 094
#032
CIRCLIP (25MM)
$4.54¢2 269
#033
CIRCLIP (28MM)
$4.54¢2 269
#034
BEARING, RADIAL BALL (31X68X15)
$27.24¢13 619
#035
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
#036
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
#037
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
#038
OIL SEAL (34X62X8)
$14.84¢7 419
#039
RING, SNAP (62MM)
$4.26¢2 131
#040
BOLT, FLANGE (6X14)
$1.23¢613
