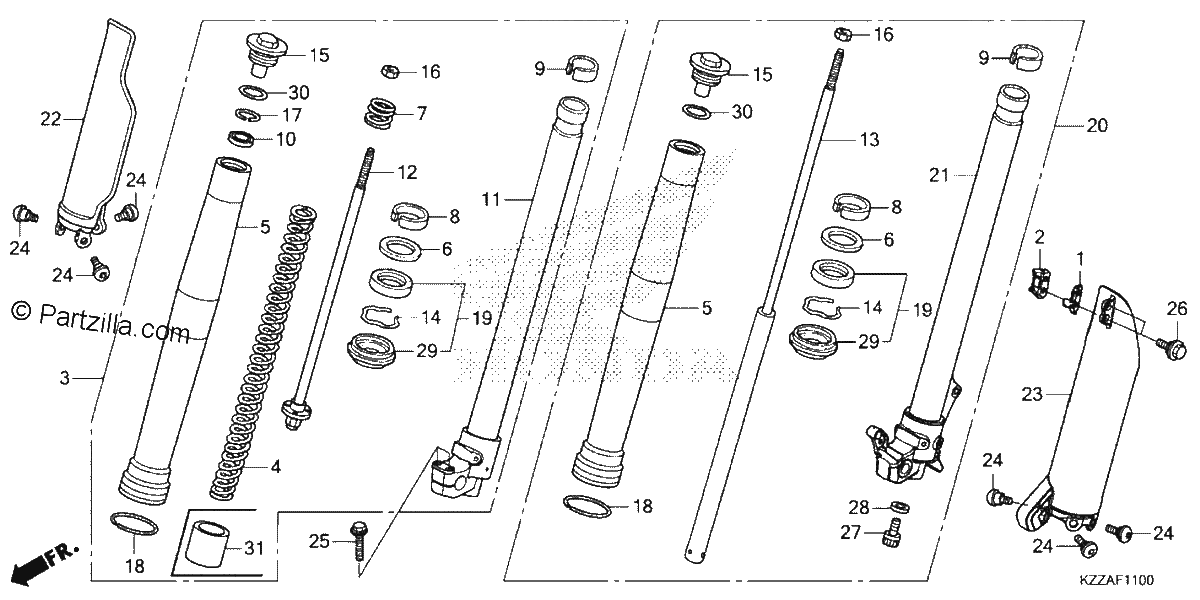

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.05¢4 025
#002
CLAMP B, BRAKE HOSE
$9.94¢4 968
#003
FORK ASSY., R. FR. (SHOWA)
$853.86¢426 932
#004
SPRING, FR. FORK
$98.75¢49 375
#005
TUBE (OUTER)
$451.82¢225 912
#006
RING, BACK-UP
$10.38¢5 192
#007
SPRING, REBOUND
$15.78¢7 889
#008
BUSH, GUIDE
$7.89¢3 944
#009
BUSH, SLIDER
$15.85¢7 923
#010
SEAT, STOPPER
$7.60¢3 801
#011
PIPE, R. SLIDE
$274.08¢137 040
#012
ROD
$159.15¢79 574
#013
DAMPER, FR.
$107.25¢53 625
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#015
BOLT, FR. FORK
$59.59¢29 797
#016
NUT, HEX. (10MM)
$3.43¢1 713
#017
RING, STOPPER
$12.44¢6 222
#018
RING, WEAR
$7.34¢3 669
#019
SEAL SET, FR. FORK
$27.37¢13 685
#020
FORK ASSY., L. FR. (SHOWA)
$819.57¢409 785
#021
PIPE, L. SLIDE
$343.85¢171 925
#022
PROTECTOR, R. FR. FORK (TYPE1) (R232 EXTREME RED)
$31.76¢15 881
#022
PROTECTOR, R. FR. FORK (TYPE2) (NH1 BLACK)
$29.22¢14 611
#023
PROTECTOR, L. FR. FORK (TYPE2)
$112.57¢56 287
#023
PROTECTOR, L. FR. FORK (TYPE1)
$105.78¢52 889
#024
BOLT, PROTECTOR (6MM)
$0.89¢443
#025
BOLT, FLANGE (8X40)
$3.15¢1 576
#026
BOLT, FLANGE (6MM)
$0.64¢322
#027
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
#028
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#029
DUST SEAL
$16.21¢8 108
#030
O-RING (44.7X2.4)
$4.38¢2 191
#031
COLLAR, SPRING
$9.76¢4 882
