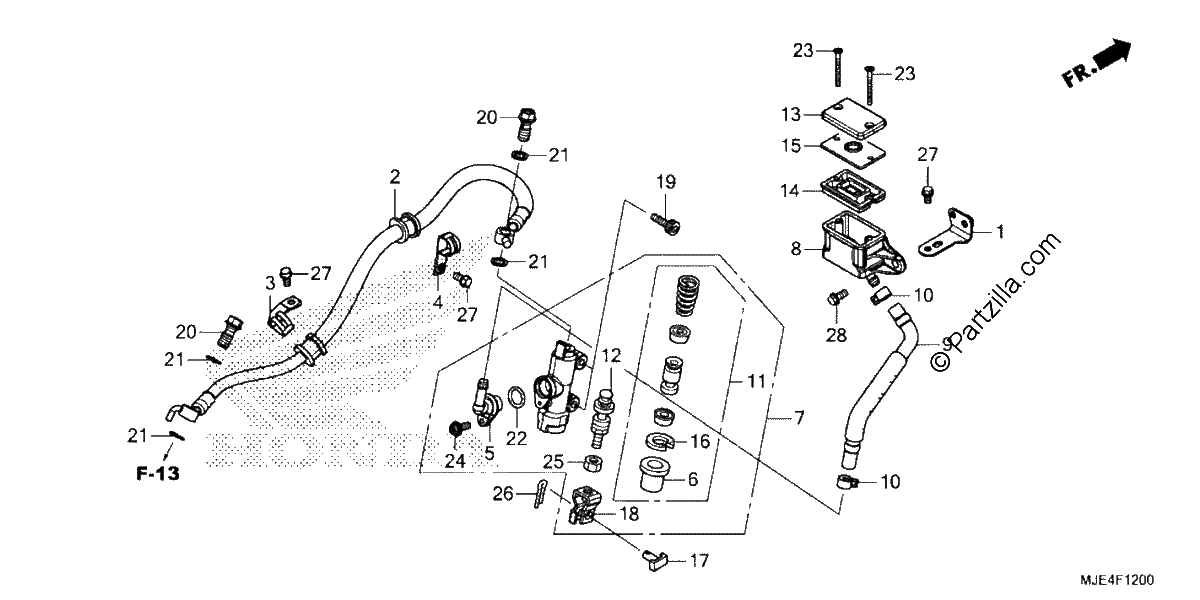

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY C, RR. BRAKE
$7.14¢3 571
#002
HOSE, RR. BRAKE
$27.84¢13 921
#003
CLAMP A, RR. BRAKE HOSE
$5.52¢2 760
#004
CLAMP B, RR. BRAKE HOSE
$4.34¢2 168
#005
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
#006
BOOT
$10.80¢5 399
#007
MASTER CYLINDER SUB-ASSY., RR.
$202.87¢101 436
#007
MASTER CYLINDER SUB-ASSY., RR. (COO)
$202.87¢101 436
#008
CUP, OIL
$25.32¢12 661
#009
HOSE, RR. MASTER CYLINDER
$12.36¢6 181
#010
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#011
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#012
ROD, PUSH
$23.49¢11 747
#013
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#013
CAP, MASTER CYLINDER
$4.63¢2 317
#014
DIAPHRAGM
$11.33¢5 664
#015
PLATE, DIAPHRAGM
$11.59¢5 796
#016
CIRCLIP
$2.30¢1 150
#017
PIN, BRAKE ROD
$5.30¢2 651
#018
JOINT, BRAKE ROD
$15.87¢7 935
#019
BOLT, SOCKET (6X20)
$1.92¢960
#020
BOLT, OIL (10X22)
$8.18¢4 088
#021
WASHER, OIL BOLT
$4.46¢2 231
#022
O-RING (14.8X2.4)
$3.04¢1 518
#023
SCREW, FLAT (4X40)
$0.56¢282
#024
SCREW-WASHER (4X12)
$1.59¢793
#024
SCREW-WASHER (4X12)
$1.59¢793
#025
NUT, HEX. (8MM)
$1.47¢736
#026
PIN, SPLIT (2.0X12)
$1.17¢586
#027
BOLT, FLANGE (6X12)
$2.13¢1 064
#028
BOLT, FLANGE (6X14)
$1.41¢707
