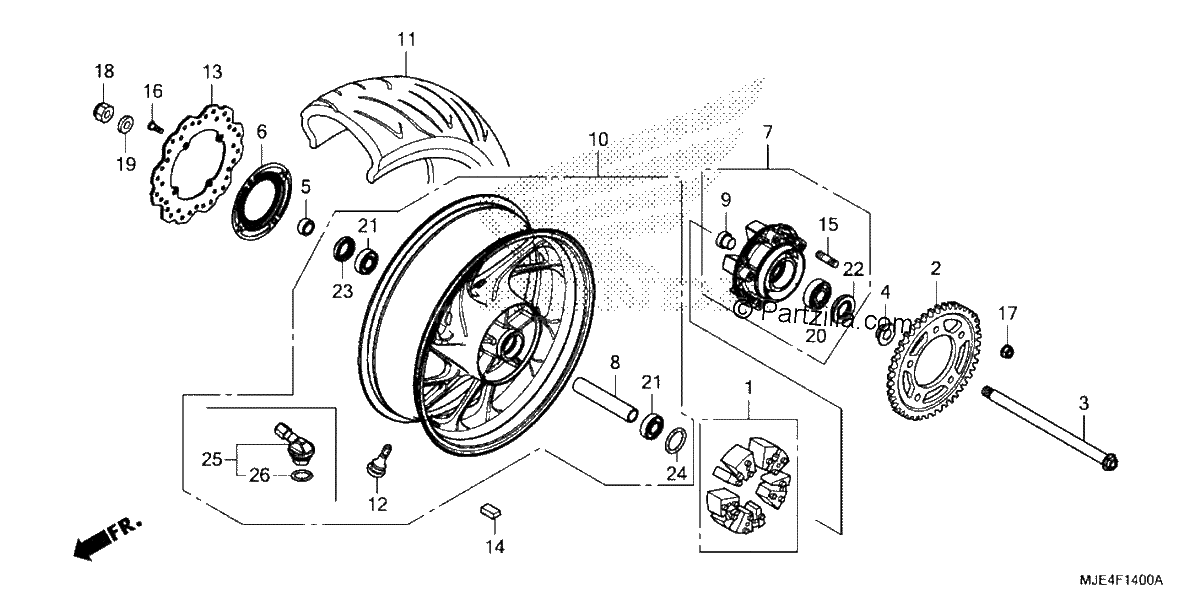

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$107.21¢53 607
#002
SPROCKET, FINAL DRIVEN (42T)
$59.68¢29 842
#003
AXLE, RR. WHEEL
$38.34¢19 171
#004
COLLAR, L. RR. WHEEL SIDE
$22.11¢11 057
#005
COLLAR, Rear BRAKE SIDE
$12.91¢6 457
#007
FLANGE SUB-Assembly., Rear DRIVEN
$157.02¢78 511
#008
COLLAR, Front AXLE DISTANCE (Rear.)
$13.33¢6 664
#009
COLLAR B, RR. WHEEL DISTANCE
$22.06¢11 029
#010
WHEEL SUB-ASSY., RR. (TYPE1)
$505.03¢252 517
#011
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
No Disponible
#013
DISK, Rear BRAKE (SUNSTAR)
$90.24¢45 120
#014
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
#014
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
#014
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
#014
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
#014
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
#014
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
#015
BOLT, STUD (12X25)
$4.47¢2 237
#016
BOLT, DISK (8X25)
$3.36¢1 679
#017
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
#018
NUT, U (18MM)
$9.79¢4 893
#019
WASHER (20X31.5X2)
$3.58¢1 788
#020
BEARING, RADIAL BALL (6322)
$42.76¢21 379
#021
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#022
DUST SEAL (30X56X7.5)
$12.95¢6 474
#023
DUST SEAL (30X47X7.5)
$17.03¢8 516
#024
O-RING (55X2)
$3.36¢1 679
#025
VALVE ASSY., CLAMP IN
$17.71¢8 855
#026
O-RING
$1.81¢903
