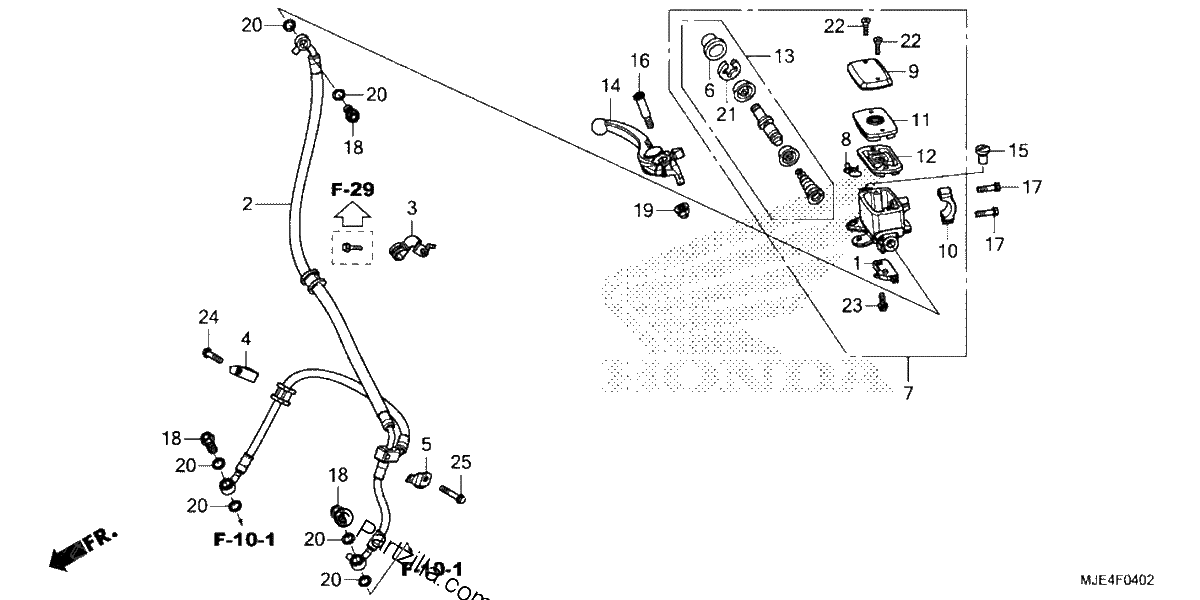

FRONT BRAKE MASTER 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE, FR. BRAKE (NICHIRIN)
$84.67¢42 338
#003
CLAMP A, Front BRAKE HOSE
$17.15¢8 575
#004
CLAMP A, Front BRAKE HOSE
$4.96¢2 481
#005
STAY, Front BRAKE HOSE
$7.38¢3 688
#006
BOOT
$14.24¢7 119
#007
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$136.89¢68 444
#007
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$136.89¢68 444
#008
PROTECTOR
$5.20¢2 600
#009
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#010
HOLDER, MASTER CYLINDER
$15.74¢7 869
#011
PLATE, DIAPHRAGM
$12.36¢6 181
#012
DIAPHRAGM
$17.68¢8 838
#013
MASTER CYLINDER SET
$46.40¢23 200
#014
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
#014
LEVER ASSY., R. HANDLE
$61.71¢30 856
#015
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#016
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#017
BOLT, FLANGE (6X22)
$0.61¢306
#018
BOLT, OIL (10X22)
$8.89¢4 444
#019
NUT, CAP (6MM)
$3.65¢1 825
#020
WASHER, OIL BOLT
$4.85¢2 425
#021
CIRCLIP
$3.10¢1 550
#022
SCREW, FLAT (4X12)
$1.16¢581
#022
SCREW, FLAT (4X12)
$1.16¢581
#023
SCREW-WASHER (4X12)
$1.72¢862
#023
SCREW-WASHER (4X12)
$1.72¢862
#024
BOLT, FLANGE (6X20)
$1.74¢869
#025
BOLT, FLANGE (6X35)
$2.79¢1 394
