SWINGARM

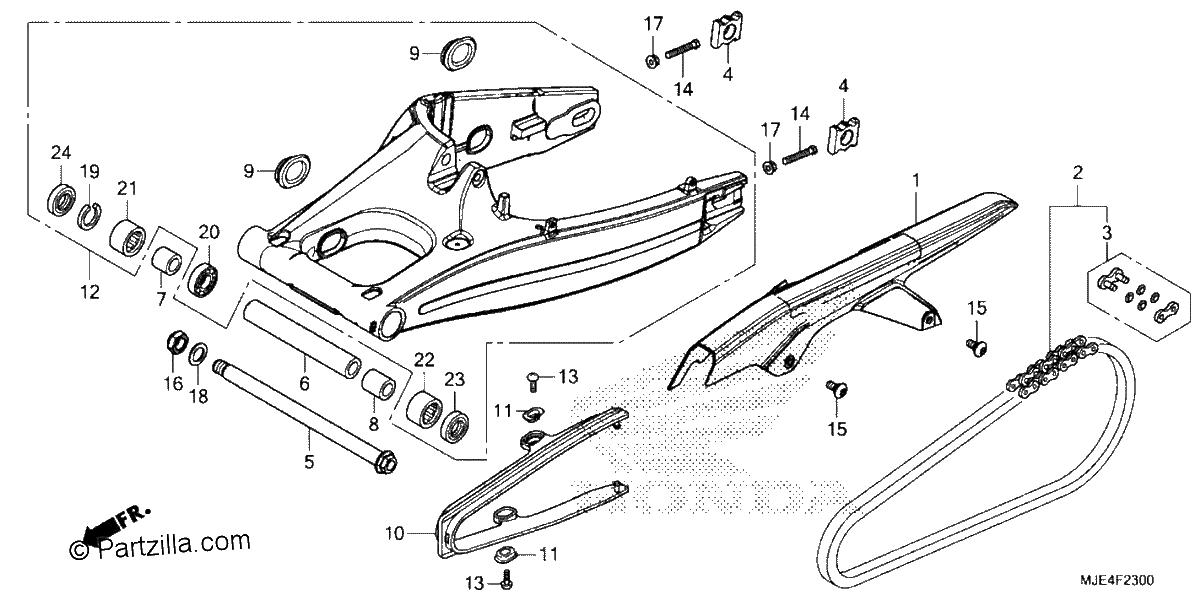

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$28.52¢14 260
#002
CHAIN, DRIVE (DID525V11-120ZB) (DAIDO)
$166.32¢83 162
#002
CHAIN, DRIVE (RK525KRW-120LJFZ) (RK EXCEL)
$258.22¢129 110
#003
MASTER LINK (DAIDO)
$19.93¢9 965
#003
MASTER LINK (RK JAPAN)
$33.05¢16 525
#004
COLLAR, Rear AXLE
$17.59¢8 798
#005
BOLT, SWINGARM PIVOT
$55.49¢27 744
#006
COLLAR, CENTER PIVOT DISTANCE
$22.41¢11 207
#007
COLLAR, Right PIVOT DISTANCE
$15.97¢7 987
#008
COLLAR, L PIVOT DISTANCE
$16.07¢8 033
#009
CAP, Rear SWINGARM
$3.15¢1 576
#010
SLIDER, CHAIN
$19.81¢9 907
#011
WASHER, CHAIN SLIDER
$3.06¢1 529
#012
SWINGARM SUB-Assembly., Rear.
$1490.69¢745 344
#013
SCREW, PAN (5X12)
$0.98¢489
#014
BOLT, HEX. (8X50)
$2.86¢1 432
#015
SCREW, SPECIAL (6X14)
$1.26¢633
#016
NUT, U (18MM)
$12.54¢6 268
#017
NUT, HEX. (8MM)
$3.79¢1 897
#018
WASHER (18X32X2)
$4.99¢2 496
#019
CIRCLIP (INNER) (37)
$3.71¢1 857
#020
BEARING, RADIAL BALL (20X37X9)
$11.86¢5 928
#021
BEARING, NEEDLE (30X37X20)
$22.76¢11 379
#022
BEARING, NEEDLE
$27.44¢13 719
#023
DUST SEAL (28X37X4)
$7.08¢3 542
#024
DUST SEAL (30X37X4)
$9.34¢4 669
