SWINGARM

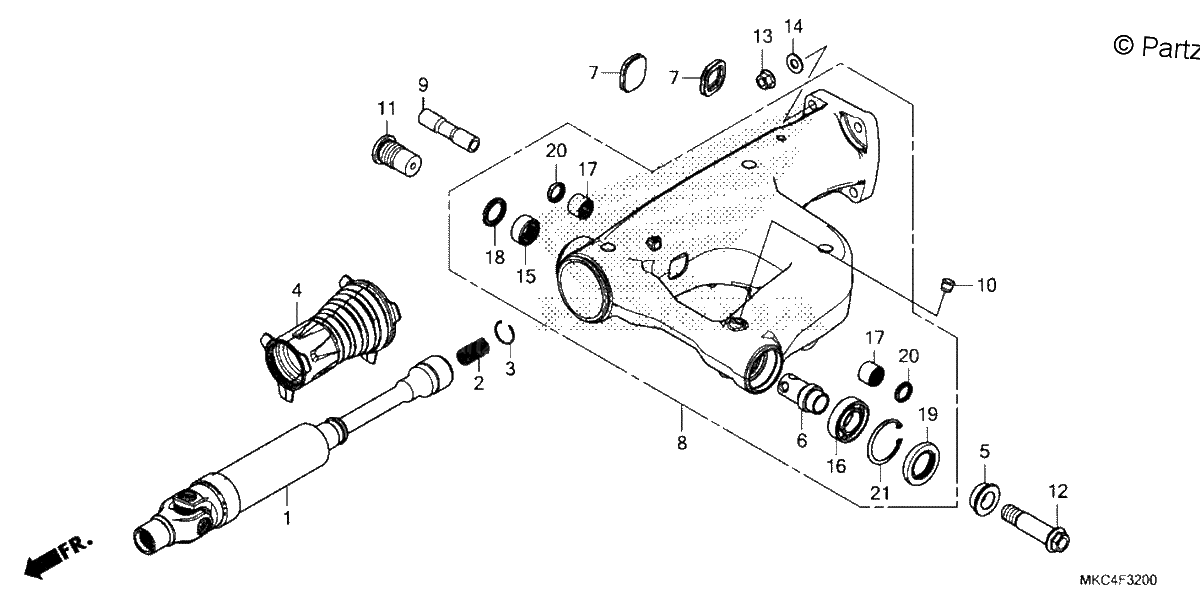

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

40200-MKC-A00

SHAFT ASSY., PROPELLER

$604.35¢302 174

#002

40216-MKC-A00

SPRING, PROP SHAFT

$4.48¢2 242

#003

40221-MKC-A00

RING, STOPPER

$3.68¢1 840

#004

52104-MKC-A00

BOOT, JOINT

$32.84¢16 422

#005

52141-MKC-A00

COLLAR, SWINGARM PIVOT

$13.88¢6 940

#006

52142-MKC-A00

NUT, SWINGARM PIVOT

$68.87¢34 437

#007

52175-MGE-000

GROMMET, SWINGARM

$3.47¢1 737

#008

52200-MKC-A00ZB

SWINGARM SUB-ASSY. (TYPE1)

$1840.00¢920 000

#009

52462-MKC-A00

COLLAR B, CUSHION ARM

$19.23¢9 614

#010

81212-GF4-000

CAP, RR. CARRIER

$5.39¢2 697

#011

90141-MKC-A00

BOLT, R. SWINGARM PIVOT

$55.02¢27 508

#012

90142-MKC-A00

BOLT, L. SWINGARM PIVOT

$39.39¢19 694

#013

90309-375-003

NUT, FLANGE (12MM)

$9.27¢4 635

#014

90440-GT4-970

WASHER, PLAIN (12MM)

$3.09¢1 547

#015

91021-MGZ-J01

BEARING, NEEDLE (28X35X16) (NTN)

$13.91¢6 958

#016

91051-MFL-003

BEARING, ANGULAR BALL (28X56X15)

$42.84¢21 419

#017

91072-MY1-005

BEARING, NEEDLE (20X26X20)

$19.78¢9 890

#018

91202-MR7-003

DUST SEAL (28X37X4)

$7.08¢3 542

#019

91251-MFL-003

DUST SEAL (35X56X7.5)

$8.84¢4 422

#020

91254-KS6-003

DUST SEAL (20X26X4.5) (ARAI)

$9.90¢4 951

#021

94520-56000

CIRCLIP (INNER) (56MM)

$2.85¢1 426
