SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

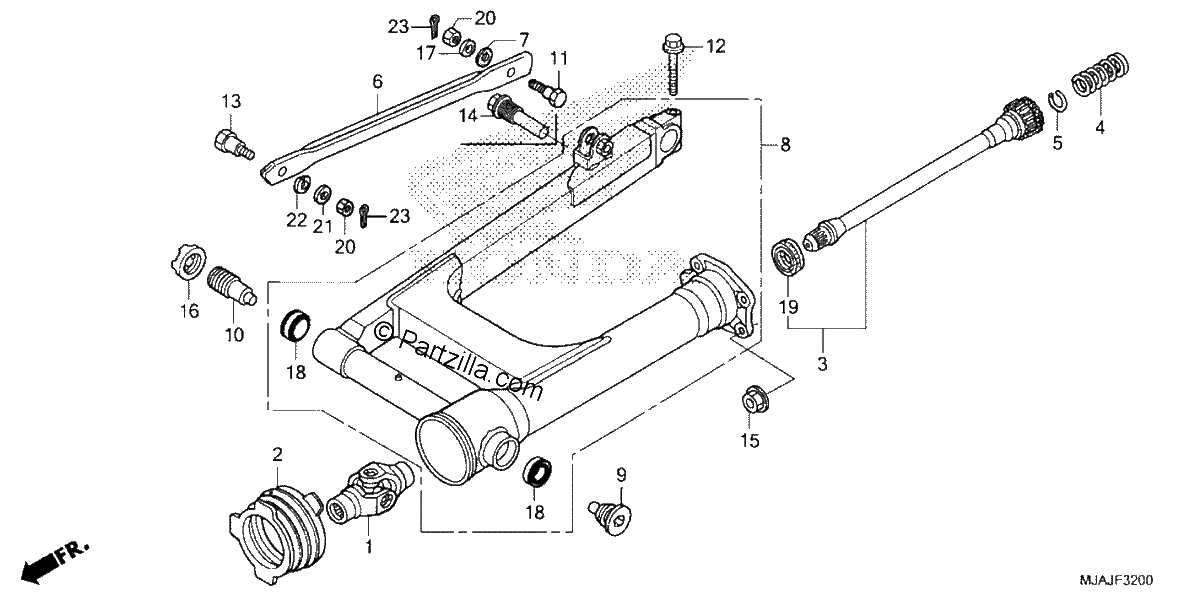

Diagrama de SWINGARM

Repuestos

#001
40200-MR6-671
JOINT, YOKE
$393.77¢196 886
1
#002
40207-MT3-610
BOOT, JOINT
$32.76¢16 382
1
#003
40210-MEG-000
SHAFT ASSY., PROPELLER
$240.59¢120 296
1
#004
40215-ME9-003
SPRING, PROPELLER SHAFT
$6.59¢3 295
1
#005
40221-MB0-000
RING, STOPPER
$5.04¢2 519
1
#006
43431-MEG-640
ARM, Rear BRAKE STOPPER
$24.92¢12 460
1
#007
43434-ME1-670
RUBBER, STOPPER ARM
$3.86¢1 932
1
#008
52100-MFS-000
SWINGARM Assembly., Rear.
$649.09¢324 547
1
#009
90121-MAM-A60
BOLT, Right SWINGARM PIVOT (L SIDE)
$14.14¢7 073
1
#010
90122-MAM-L40
BOLT, L SWINGARM PIVOT (Right SIDE)
$29.49¢14 743
1
#011
90127-393-000
BOLT, RR. BRAKE STOPPER
$5.43¢2 714
1
#012
90129-KFG-000
BOLT, FLANGE (8X32)
$2.51¢1 254
1
#013
90133-286-000
BOLT, RR. BRAKE STOPPER ARM
$4.99¢2 496
1
#015
90308-MEG-000
NUT, HEX. (10MM)
$4.81¢2 403
1
#016
90355-469-000
NUT, SWINGARM PIVOT LOCK
$18.75¢9 373
1
#017
90505-425-000
WASHER (8MM)
$1.64¢822
1
#017
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.64¢822
1
#018
91066-HA7-672
BEARING, TAPER ROLLER (17X40X13.25) (KOYO)
$66.30¢33 149
1
#019
91261-ME9-005
OIL SEAL (27X43X7)
$12.96¢6 480
1
#020
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#021
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#022
94111-10000
WASHER, SPRING (10MM)
$1.51¢753
1
#023
94201-20180
PIN, SPLIT (2.0X18)
No Disponible
1
#023
94201-20200
PIN, SPLIT (2.0X20)
$1.23¢615
1
#023
94201-20220
PIN, SPLIT (2.0X22)
$1.23¢615
1
#023
94201-20250
PIN, SPLIT (2.0X25)
$1.23¢615
1
#023
94201-20280
PIN, SPLIT (2.0X28)
$1.23¢615
1
#023
94201-20320
PIN, COTTER (2.0X32)
$1.23¢615
1
#023
94201-20350
PIN, SPLIT (2.0X35)
$1.23¢615
1
#023
94201-29220
PIN, COTTER (2.0X22)
$1.23¢615
1
