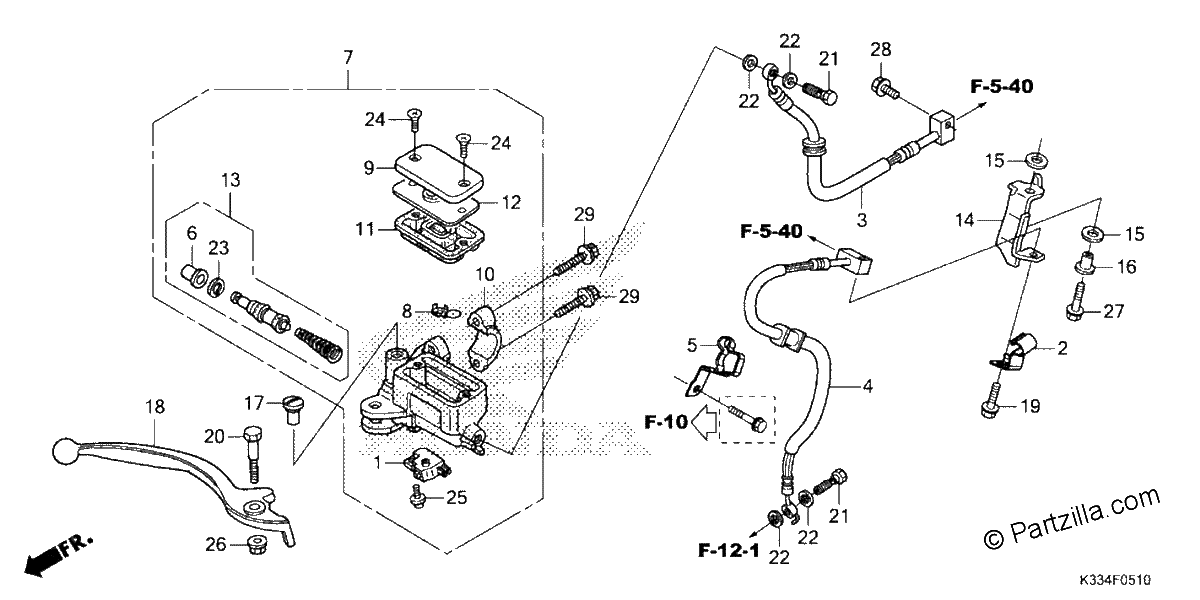

FRONT BRAKE MASTER CYLINDER ABS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, SPEED SENSOR WIRE (FR)
$3.26¢1 631
#003
HOSE B, Front BRAKE
$39.04¢19 519
#004
HOSE A, FR. BRAKE
$45.26¢22 631
#005
CLAMP B, Front BRAKE HOSE
$7.63¢3 813
#006
BOOT
$14.24¢7 119
#007
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$139.86¢69 931
#008
PROTECTOR
$5.20¢2 600
#009
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#009
CAP, MASTER CYLINDER
$5.04¢2 519
#010
HOLDER, MASTER CYLINDER
$15.74¢7 869
#011
DIAPHRAGM
$10.88¢5 438
#012
PLATE, DIAPHRAGM
$2.92¢1 463
#013
MASTER CYLINDER SET
$46.40¢23 200
#014
STAY, FR. BRAKE HOSE
$34.08¢17 038
#015
WASHER, RUBBER
$0.93¢463
#016
COLLAR, JOINT STAY MOUNTING (TWO-WAY)
$5.35¢2 675
#017
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#018
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
#018
LEVER, R. HANDLEBAR
$19.27¢9 638
#019
BOLT, FLANGE (6X18)
$3.65¢1 825
#020
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
#021
BOLT, OIL (10X22)
$8.89¢4 444
#022
WASHER, OIL BOLT
$4.85¢2 425
#023
CIRCLIP
$3.10¢1 550
#024
SCREW, FLAT (4X12)
$1.16¢581
#024
SCREW, FLAT (4X12)
$1.16¢581
#025
SCREW-WASHER (4X12)
$1.72¢862
#025
SCREW-WASHER (4X12)
$1.72¢862
#026
NUT, FLANGE (6MM)
$0.80¢400
#027
BOLT, FLANGE (6X20)
$2.09¢1 044
#028
BOLT, FLANGE (6X12)
$2.31¢1 156
#029
BOLT, FLANGE (6X22)
$2.38¢1 188
