CYLINDER BLOCK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

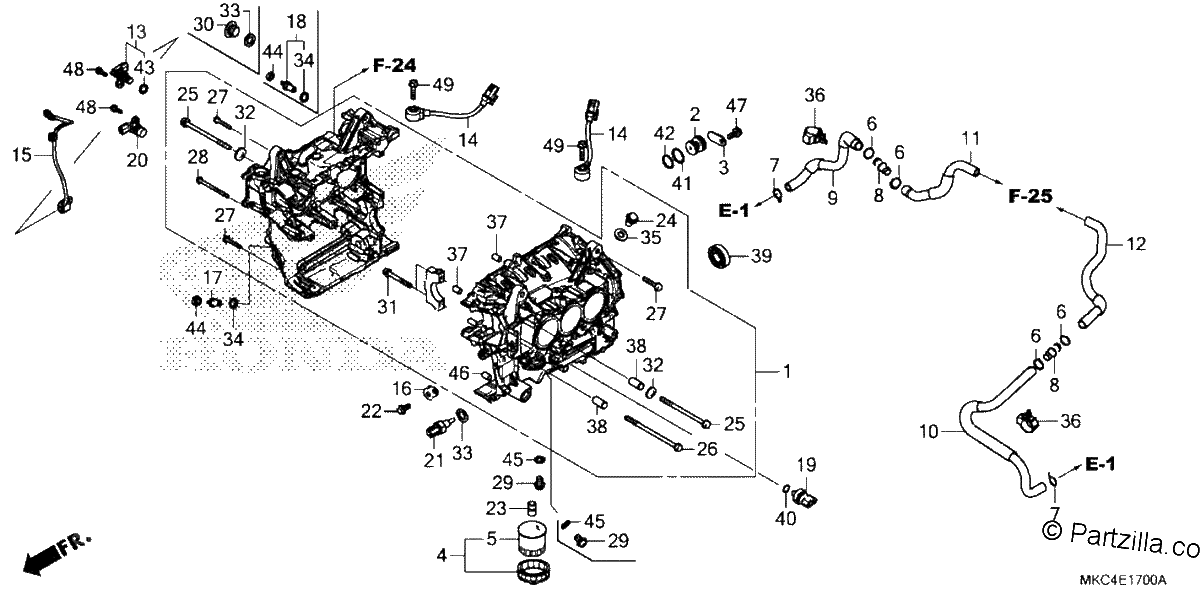

Diagrama de CYLINDER BLOCK

Repuestos

#001
11000-MKC-A00
BLOCK ASSY., CYLINDER
$4076.92¢2 038 461
1
#002
11216-MKC-A00
PLUG, SEALING
$18.29¢9 143
1
#003
11217-MKC-A00
PLATE, MAIN GALLERY
$3.22¢1 610
1
#004
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#005
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#006
17366-MJ0-000
CLIP B, TUBE
$2.66¢1 328
1
#007
17724-102-700
CLIP, SUB-TANK HOSE
$4.89¢2 444
1
#008
18651-MKC-A00
JOINT (TWO-WAY)
$11.26¢5 629
1
#009
18652-MKC-A00
TUBE, R. AIR INDUCTION A
$26.47¢13 237
1
#010
18653-MKC-A00
TUBE, L. AIR INDUCTION A
$35.56¢17 779
1
#011
18662-MKC-A00
TUBE, R. AIR INDUCTION B
$19.43¢9 717
1
#012
18663-MKC-A00
TUBE, L. AIR INDUCTION B
$25.07¢12 535
1
#013
28810-R9L-003
PICK-UP ASSY.
$142.78¢71 392
1
#014
30530-MKC-A01
SENSOR, KNOCK
$67.56¢33 781
1
#015
32109-MKC-A00
SUB-HARNESS, SPEED SENSOR
$31.73¢15 864
1
#016
32157-MJM-D00
STAY, HARNESS CLIP
$5.45¢2 726
1
#017
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$25.62¢12 811
1
#019
37260-MGE-641
SENSOR, OIL PRESSURE
$202.76¢101 378
1
#020
37700-K48-A01
SENSOR ASSY., SPEED
$70.60¢35 299
1
#021
37750-KPH-701
SENSOR Assembly., THERMOSTAT OIL (PANASONIC)
$54.19¢27 094
1
#022
90005-GHB-610
BOLT, FLANGE (6X12)
$3.13¢1 564
1
#023
90019-MB0-000
BOSS, OIL FILTER
$9.27¢4 635
1
#024
90019-MKC-A00
BOLT, SEALING (8MM)
$4.66¢2 329
1
#025
90025-MKC-A00
BOLT, FLANGE (8X120)
$5.96¢2 978
1
#026
90026-MKC-A00
BOLT, FLANGE (8X140)
$6.37¢3 186
1
#027
90031-MKC-A00
BOLT, FLANGE (6X35)
$2.68¢1 340
1
#028
90032-MKC-A00
BOLT, FLANGE (6X75)
$3.68¢1 840
1
#029
90043-MKC-A00
BOLT, DRAIN PLUG (12X15)
$6.18¢3 088
1
#031
90049-MKC-A00
BOLT-WASHER (10X80)
$5.30¢2 651
1
#032
90441-ME9-000
WASHER, SEALING (8MM)
$3.09¢1 547
1
#033
90443-MB0-000
WASHER, SEALING (10.2MM)
$3.36¢1 679
1
#034
90443-MJ6-000
WASHER, NEUTRAL
$2.28¢1 138
1
#035
90474-333-000
WASHER, SEALING (8MM)
$3.69¢1 846
1
#036
90651-HL3-G01
CLAMP, TUBE (D18)
$2.94¢1 472
1
#037
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#038
90715-RZ0-G00
PIN, DOWEL (12X37)
$7.54¢3 772
1
#039
91006-HN2-003
BEARING, RADIAL BALL (6203U SPL.)
$13.57¢6 785
1
#040
91301-MEH-003
O-RING (13X1.5)
$1.92¢960
1
#041
91301-P7X-003
O-RING (18.5X1.9) (NOK)
$3.44¢1 719
1
#042
91301-PWR-003
O-RING (16.7X1.9) (NOK)
$3.58¢1 788
1
#043
91304-RE5-003
O-RING
$14.06¢7 032
1
#044
94001-04000-0S
NUT, HEX. (4MM)
$1.23¢615
1
#045
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#046
94303-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#047
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#048
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#049
95701-08030-00
BOLT, FLANGE (8X30)
$1.33¢667
1
