REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

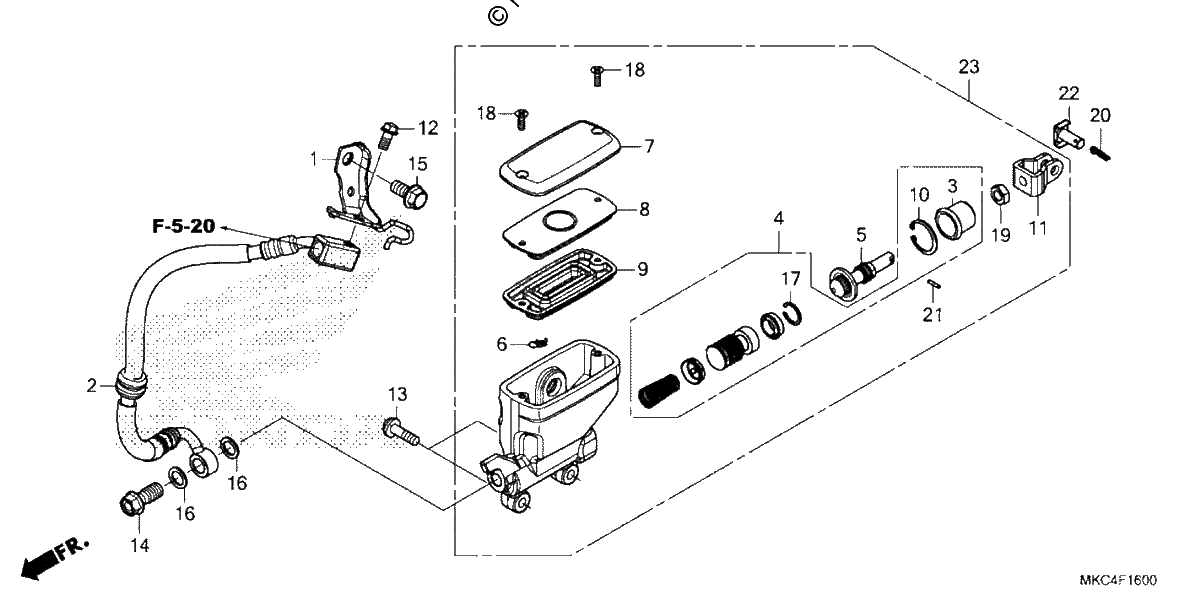

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
43163-MKC-A00
STAY B, RR. BRAKE
$9.40¢4 700
1
#002
43310-MKC-A01
HOSE A, RR. BRAKE
$64.88¢32 438
1
#003
43504-MB2-006
BOOT
$11.74¢5 869
1
#004
43520-MKC-A01
PISTON SET, RR. MASTER CYLINDER
$34.08¢17 038
1
#005
43530-MKC-A01
ROD ASSY., PUSH
$28.65¢14 325
1
#006
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#007
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#008
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#009
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#010
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#011
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#012
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
#013
90144-MKC-A00
BOLT, RR. MASTER CYLINDER (6X21)
$3.98¢1 988
1
#014
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#015
90164-GHB-630
BOLT, FLANGE (8X16)
$2.73¢1 363
1
#016
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#017
90651-MBG-006
CIRCLIP, PISTON
$3.66¢1 831
1
#018
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#019
94002-08070-0S
NUT, HEX. (8MM)
$1.68¢838
1
#020
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#021
94305-20102
PIN, SPRING (2X10)
$1.13¢563
1
#022
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#023
43500-MKC-A01
MASTER CYLINDER ASSY., RR. (NISSIN)
$329.88¢164 938
1
