TRUNK BOX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

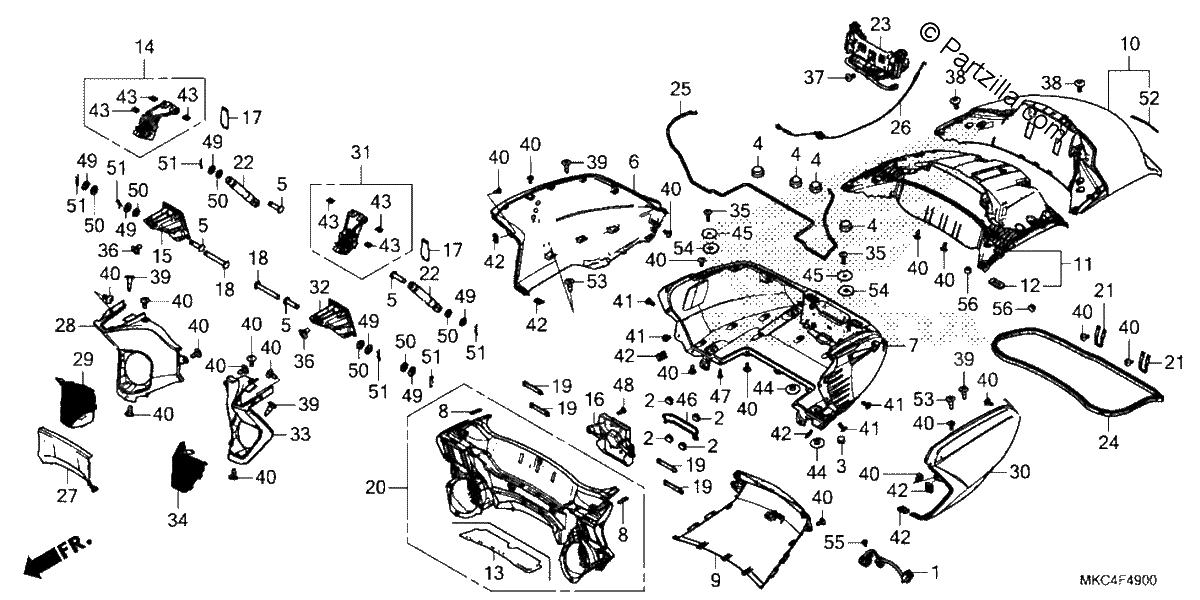

Diagrama de TRUNK BOX

Repuestos

#001
35390-MKC-A01
SWITCH ASSY., TRUNK OPENER
$57.05¢28 526
1
#002
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#003
61105-KA8-000
PLUG, FR. FENDER
$1.71¢857
1
#004
77110-KA3-730
RUBBER, SEAT MOUNTING
$5.63¢2 818
1
#005
77156-GZ4-670
PIN, SEAT HOOK
$6.24¢3 122
1
#006
81110-MKC-A30ZA
COVER SET, R. TRUNK SIDE (TYPE1) (WL)
$178.34¢89 171
1
#007
81111-MKC-A00
BOX, TRUNK (INNER)
$1324.06¢662 032
1
#008
81112-MCA-S40
SEAL, TRUNK PANEL
$0.85¢426
1
#009
81115-MKC-A00ZC
COVER, CENTER TRUNK (LOWER) (TYPE5)
$197.10¢98 549
1
#010
81120-MKC-A00ZE
LID SET, TRUNK (TYPE1) (WL)
$614.81¢307 407
1
#011
81126-MKC-A00
INNER LID, TRUNK
$110.31¢55 154
1
#012
81127-MKC-A00
MAT, LID (INNER)
$2.94¢1 472
1
#013
81128-MKC-A30
MAT, TRUNK PANEL
$32.97¢16 485
1
#014
81131-MKC-A00
HINGE A, R. TRUNK
$61.84¢30 918
1
#015
81132-MKC-A00
HINGE B, R. TRUNK
$59.88¢29 940
1
#016
81133-MKC-A30
HOLDER, TRUNK
$28.36¢14 180
1
#017
81134-MKC-A00
RUBBER, HINGE
$6.04¢3 019
1
#018
81136-MKC-A00
PIN A, TRUNK HINGE
$5.78¢2 892
1
#019
81140-MKC-A00
PLATE, TRUNK HINGE
$6.37¢3 186
1
#020
81150-MKC-A30
PANEL, TRUNK
$516.64¢258 319
1
#021
81151-MKC-A00
ROD, TRUNK STRIKER
$12.89¢6 446
1
#022
81155-MKC-A01
DAMPER, TRUNK LID
$54.21¢27 106
1
#023
81160-MKC-A01
CATCH, TRUNK
$589.24¢294 619
1
#024
81181-MKC-A00
RUBBER, TRUNK LID SEAL
$47.56¢23 782
1
#025
81182-MKC-A00
RUBBER, TRUNK PANEL
$29.49¢14 743
1
#026
81184-MKC-A01
CABLE, TRUNK EMERGENCY
$22.09¢11 046
1
#027
81191-MKC-A00ZA
PANEL, FR. TRUNK (LOWER) *NH1*(BLACK)
$30.92¢15 462
1
#028
81193-MKC-A00ZA
COVER, R. FR. TRUNK *NH1*(BLACK)
$72.92¢36 461
1
#029
81194-MKC-A00ZA
COVER, R. RR. SPEAKER *NH1*(BLACK)
$20.02¢10 011
1
#030
81210-MKC-A30ZA
COVER SET, L. TRUNK SIDE (TYPE1) (WL)
$178.34¢89 171
1
#031
81231-MKC-A00
HINGE A, L. TRUNK
$61.84¢30 918
1
#032
81232-MKC-A00
HINGE B, L. TRUNK
$59.88¢29 940
1
#033
81293-MKC-A00ZA
COVER, L. FR. TRUNK *NH1*(BLACK)
$72.92¢36 461
1
#034
81294-MKC-A00ZA
COVER, L. RR. SPEAKER *NH1*(BLACK)
$20.02¢10 011
1
#035
90085-MAJ-A20
BOLT, SPECIAL (6X22)
$4.22¢2 110
1
#036
90106-KY2-701
SCREW, PAN (6X11)
$4.74¢2 369
1
#037
90112-MJK-N20
SCREW (5X12)
$2.66¢1 328
1
#038
90114-MCJ-000
SCREW, SPECIAL (6X14)
$2.98¢1 489
1
#039
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#040
90121-MJK-N20
SCREW, TAPPING (5X12)
$2.66¢1 328
1
#041
90140-MCA-000
SCREW, TAPPING (5X12)
$1.09¢546
1
#042
90301-KE1-003
NUT, SPRING (5MM)
$3.36¢1 679
1
#043
90303-HA0-680
NUT, SPECIAL (6X7)
$4.28¢2 139
1
#044
90508-MKC-A00
COLLAR, RR. TRUNK
$8.18¢4 088
1
#045
90506-MKC-A00
WASHER, TRUNK SET
$2.85¢1 426
1
#046
91315-MA6-003
O-RING (81X4.5) (ARAI)
$3.50¢1 748
1
#047
93903-24480
SCREW, TAPPING (4X16)
$1.07¢535
1
#048
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#049
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#049
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#049
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#050
94111-06800
WASHER, SPRING (6MM)
$1.33¢667
1
#051
94251-06000
PIN, LOCK (6MM)
$1.23¢615
1
#052
86102-MKC-A00
EMBLEM, HONDA (100MM)
$33.56¢16 778
1
#053
90111-MKC-A00
RIVET, PUSH
$3.86¢1 932
1
#054
81356-MKC-A00
RUBBER, TRUNK MOUNTING
$2.60¢1 299
1
#055
93903-32180
SCREW, TAPPING (3X8)
$0.77¢385
1
#056
60107-752-000
RUBBER, FUEL LID STOPPER
$3.46¢1 731
1
