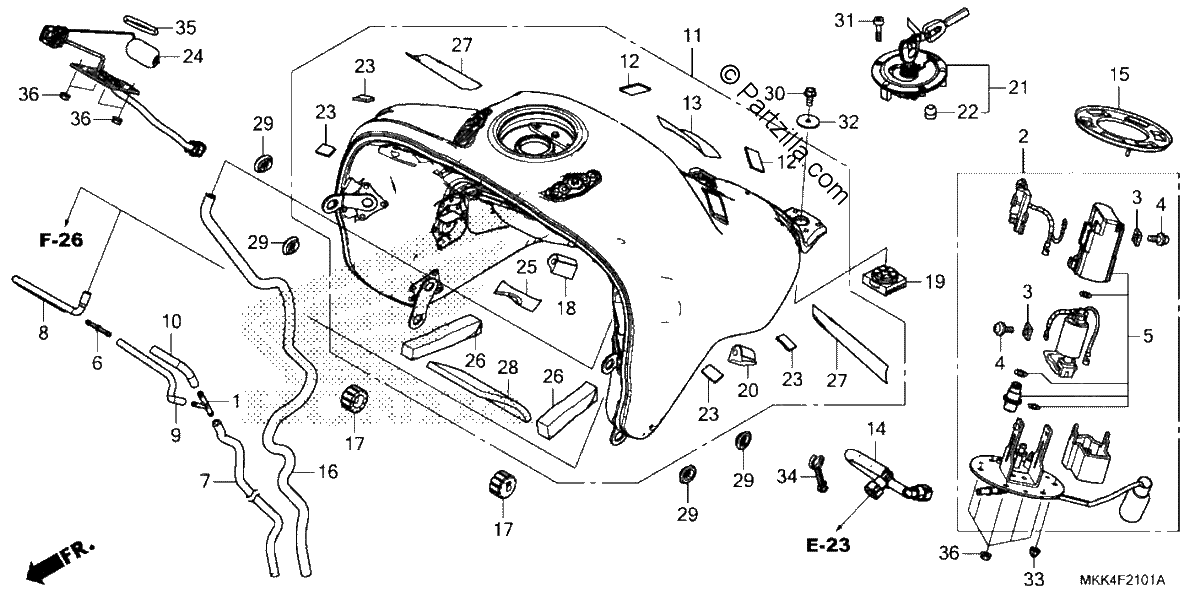

FUEL TANK FUEL PUMP 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
PUMP UNIT, FUEL
$928.38¢464 188
#002
PUMP UNIT, FUEL
$928.38¢464 188
#003
STOPPER
$6.23¢3 113
#004
SCREW (4X6.6)
$2.41¢1 206
#005
FILTER ASSY., FUEL
No Disponible
#005
FILTER Assembly., FUEL
$49.11¢24 556
#011
TANK ASSY., FUEL (TYPE1) (WL)
$2066.64¢1 033 319
#012
RUBBER, TANK GUARD
$1.77¢888
#013
TAPE, TANK PROTECTOR
$4.07¢2 037
#014
HOSE, FUEL FEED
$95.78¢47 888
#015
GASKET, BASE
$28.36¢14 181
#016
TUBE, FUEL TANK DRAIN
$29.67¢14 837
#017
CUSHION, FR. FUEL TANK
$5.11¢2 556
#018
RUBBER, R. TANK SIDE
$23.38¢11 688
#019
CUSHION, RR. FUEL TANK
$9.20¢4 600
#020
RUBBER, L. TANK SIDE
$24.46¢12 231
#021
CAP, FUEL FILLER
$285.68¢142 838
#022
SEAL, BREATHER
$6.23¢3 113
#023
RUBBER, RADIATOR SHROUD
$3.65¢1 825
#024
FUEL UNIT
$147.09¢73 544
#025
TAPE, COVER
$2.07¢1 037
#026
MAT D, R. COWL (LOWER)
$2.89¢1 444
#027
TAPE, PROTECTION
$6.47¢3 238
#029
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#030
BOLT, FLANGE (6X14)
$2.88¢1 438
#031
BOLT, SOCKET (4X24) (SUS)
$3.95¢1 975
#032
WASHER, TANK SETTING
$2.01¢1 006
#033
NUT, CAP (6MM)
$2.76¢1 381
#034
CLAMP
$6.06¢3 031
#035
O-RING (39.5X5)
$10.38¢5 188
#036
NUT, FLANGE (6MM)
$0.80¢400
