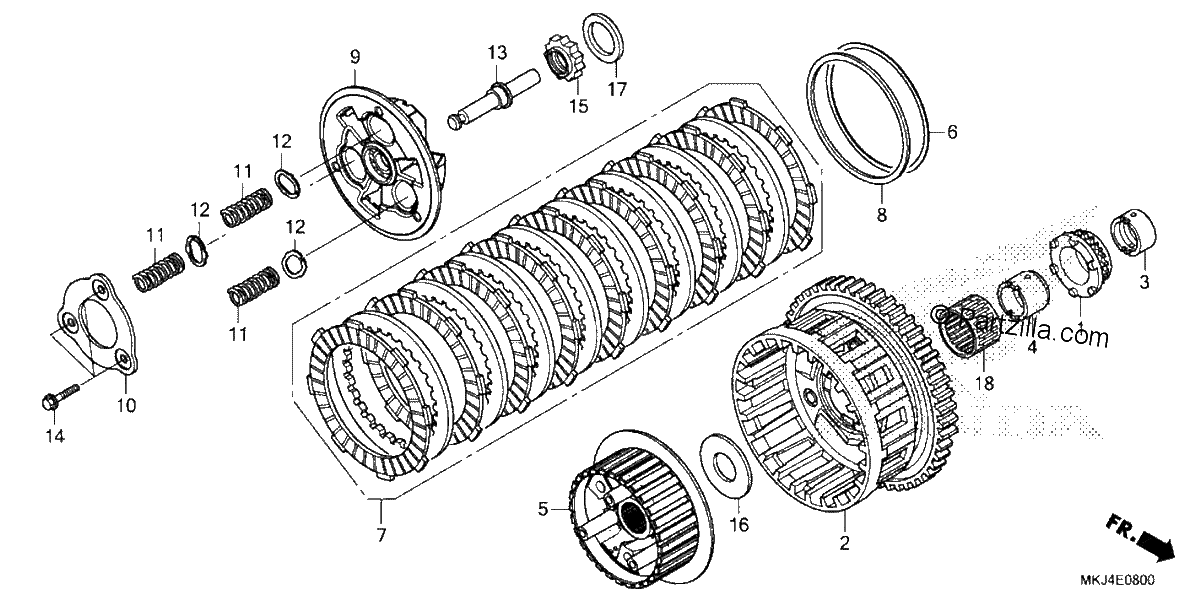

CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

15131-MEL-003

SPROCKET, OIL PUMP DRIVE (26T)

$72.89¢36 444

#002

22100-MKJ-D00

CLUTCH OUTER A (77T) (BLUE) (NOT AVAILABLE)

$489.64¢244 818

#002

22200-MKJ-D00

CLUTCH OUTER B (77T) (YELLOW) (NOT AVAILABLE)

$489.64¢244 818

#003

22116-MEL-000

COLLAR, OIL PUMP SPROCKET

$19.57¢9 786

#004

22117-MEL-D20

GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)

$22.68¢11 339

#004

22118-MEL-D20

GUIDE B, CLUTCH (OUTER) (2MM HOLE)

$21.15¢10 574

#005

22121-MKJ-D01

CENTER, CLUTCH (NOT AVAILABLE)

$135.83¢67 913

#006

22125-HP6-A00

SEAT, JUDDER SPRING

$5.32¢2 662

#007

22210-MKF-D40

DISK SET, CLUTCH

$201.59¢100 798

#008

22325-MJP-G51

SPRING, JUDDER

$43.42¢21 712

#009

22350-MKJ-D01

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

$86.16¢43 079

#010

22361-MJP-G51

PLATE, SETTING

$28.60¢14 300

#011

22401-MKJ-D00

SPRING, CLUTCH (NOT AVAILABLE)

$7.26¢3 628

#012

22425-MKF-D41

SEAT, CLUTCH SPRING

$13.60¢6 802

#013

22847-MGP-D60

PIN, CLUTCH LIFTER

$41.66¢20 832

#014

90050-MKF-D41

BOLT, FLANGE (6X45)

$3.42¢1 708

#015

90231-MS2-610

NUT, LOCK (25MM)

$20.06¢10 028

#016

90401-MS2-610

WASHER, THRUST (28.2X56X2)

$18.79¢9 395

#017

90407-MFL-000

WASHER (25.1X37X3.2)

$4.62¢2 311

#018

91101-MFL-881

BEARING A, NEEDLE (35X41X27.8) (RED)

$10.74¢5 371

#018

91102-MFL-881

BEARING B, NEEDLE (35X41X27.8) (WHITE)

$9.20¢4 600

#018

91103-MKJ-D01

BEARING C, NEEDLE (35X41X27.8)(YELLOW) (NOT AVAILABLE)

$19.25¢9 625
