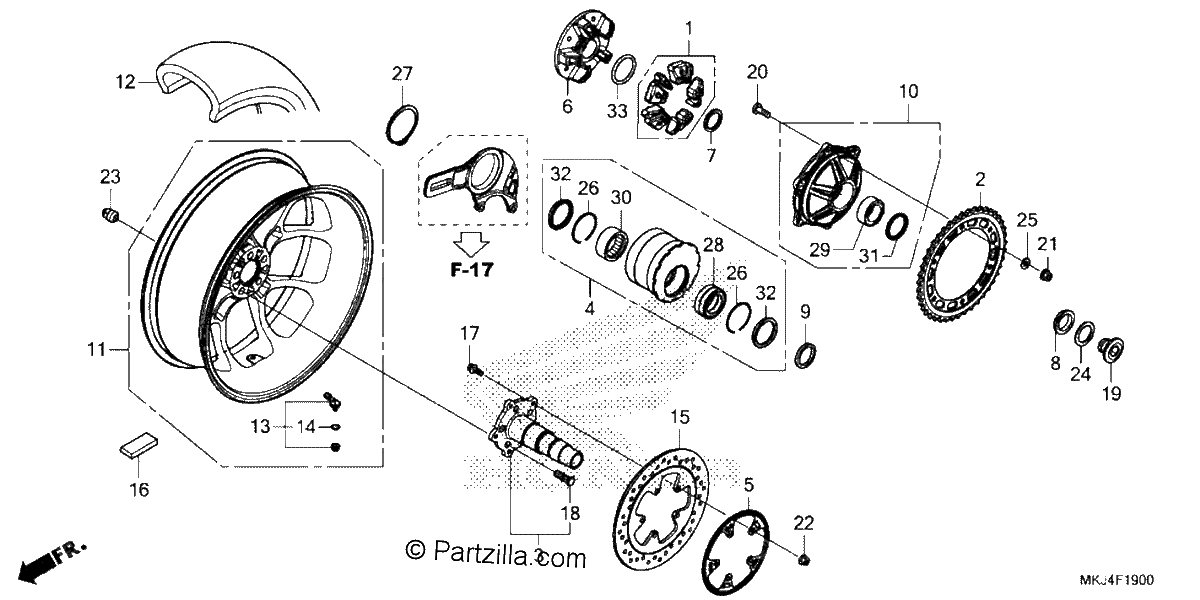

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, FINAL DRIVEN
$73.30¢36 650
#002
SPROCKET, FINAL DRIVEN (44T)
$115.84¢57 919
#003
AXLE, RR.
$309.45¢154 725
#004
HOLDER, BEARING
$381.38¢190 688
#005
RING, RR. PULSER
$138.26¢69 131
#006
HUB, FINAL DRIVEN
$185.71¢92 856
#007
COLLAR, RR. AXLE DISTANCE
$13.81¢6 906
#008
COLLAR, RR. AXLE SIDE
$28.17¢14 087
#009
COLLAR, RR. AXLE
$29.04¢14 519
#010
HUB ASSY., SPROCKET
$457.46¢228 731
#011
WHEEL SUB-ASSY., RR. (TYPE1)
$1326.22¢663 113
#012
TIRE, RR. (190/55ZR17 M/C 75W)(DUNLOP)
$361.59¢180 794
#012
TIRE, RR. (190/55ZR17 M/C 75W)(BS)
$361.59¢180 794
#013
VALVE ASSY., CLAMP IN
$19.25¢9 625
#014
O-RING
$1.96¢981
#015
DISK, RR. BRAKE
$402.64¢201 319
#016
WEIGHT, BALANCE (10G)
$3.91¢1 956
#016
WEIGHT, BALANCE (15G)
$4.68¢2 338
#016
WEIGHT, BALANCE (20G)
$5.22¢2 613
#017
BOLT, FLANGE (8X20)
$2.48¢1 238
#018
BOLT, WHEEL (NAGOYA RASHI)
$3.47¢1 737
#018
BOLT, WHEEL (ROCKNEL FASTENER)
$3.47¢1 737
#018
BOLT, WHEEL (NAGOYA RASHI)
$3.47¢1 737
#018
BOLT, WHEEL (TOKAI TRW)
$3.47¢1 737
#018
BOLT, WHEEL (NAGOYA RASHI)
$3.47¢1 737
#019
BOLT, RR. AXLE
$34.36¢17 181
#020
BOLT (10X30)
$3.75¢1 875
#021
NUT, U FLANGE (10MM)
$3.40¢1 700
#022
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#022
NUT, FLANGE (8MM)
$4.06¢2 031
#023
NUT, WHEEL (FUSE RASHI)
$13.71¢6 856
#024
WASHER, CONICAL SPRING (35)
$9.94¢4 969
#025
WASHER (10MM)
$3.11¢1 556
#026
CIRCLIP (INNER) (62MM)
$7.70¢3 850
#027
CIRCLIP (OUTER) (75MM)
$13.43¢6 713
#028
BEARING, RADIAL BALL (6908LU)
$55.21¢27 606
#029
BEARING, RADIAL BALL (35X55X10)
$103.29¢51 644
#030
BEARING, RR. AXLE NEEDLE
$49.25¢24 625
#031
DUST SEAL (45X55X5) (ARAI)
$10.13¢5 063
#031
DUST SEAL (45X55X5) (NOK)
$10.13¢5 063
#032
DUST SEAL (50X62X5)
$14.84¢7 419
#033
O-RING, SPROCKET HUB
$3.36¢1 681
