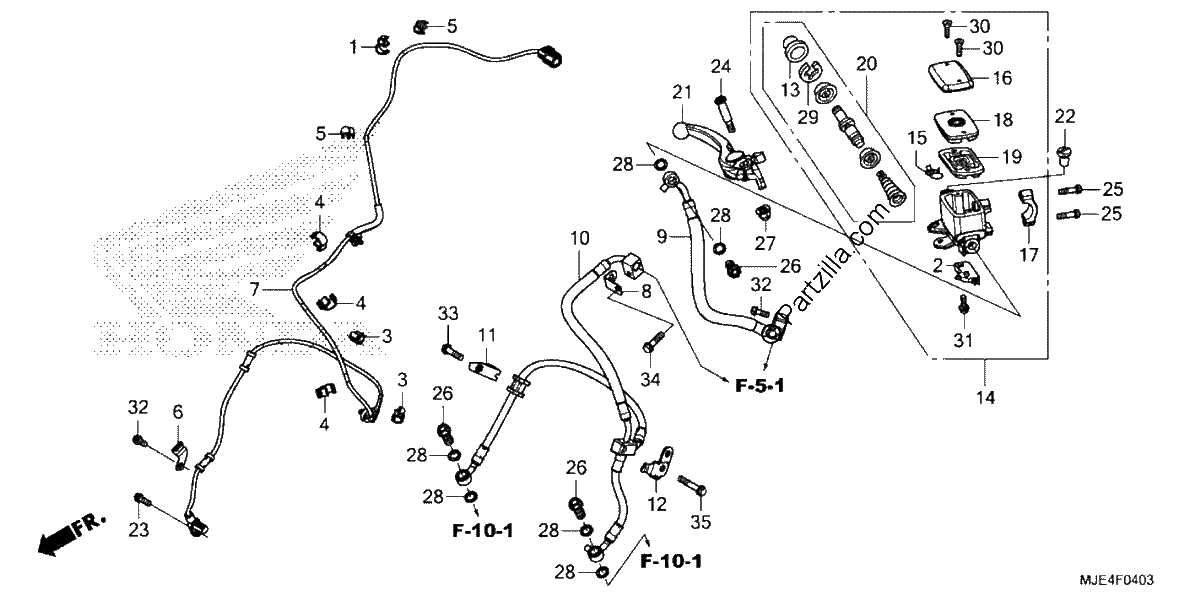

FRONT BRAKE MASTER 4
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, PIPE
$8.64¢4 319
#002
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#004
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#005
CLAMP, ABS WIRE
$4.13¢2 063
#006
CLAMP, SENSOR WIRE
$1.35¢675
#007
SENSOR, FR. WHEEL SPEED
$44.33¢22 163
#008
STAY, SENSOR WIRE
$4.07¢2 037
#009
HOSE A, FR. BRAKE
$47.09¢23 544
#010
HOSE B, FR. BRAKE (NICHIRIN)
$137.38¢68 688
#011
CLAMP A, FR. BRAKE HOSE
$3.91¢1 956
#012
STAY, FR. BRAKE HOSE
$7.18¢3 588
#013
BOOT
$14.24¢7 119
#014
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$136.89¢68 444
#014
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$136.89¢68 444
#015
PROTECTOR
$5.20¢2 600
#016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#017
HOLDER, MASTER CYLINDER
$15.74¢7 869
#018
PLATE, DIAPHRAGM
$12.36¢6 181
#019
DIAPHRAGM
$17.68¢8 838
#020
MASTER CYLINDER SET
$46.40¢23 200
#021
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
#021
LEVER ASSY., R. HANDLE
$61.71¢30 856
#022
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#023
BOLT, FLANGE (6X16)
$0.61¢306
#024
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#025
BOLT, FLANGE (6X22)
$0.61¢306
#026
BOLT, OIL (10X22)
$8.89¢4 444
#027
NUT, CAP (6MM)
$3.65¢1 825
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
CIRCLIP
$3.10¢1 550
#030
SCREW, FLAT (4X12)
$1.16¢581
#030
SCREW, FLAT (4X12)
$1.16¢581
#031
SCREW-WASHER (4X12)
$1.72¢862
#031
SCREW-WASHER (4X12)
$1.72¢862
#032
BOLT, FLANGE (6X12)
$2.31¢1 156
#033
BOLT, FLANGE (6X20)
$1.74¢869
#034
BOLT, FLANGE (6X25)
$1.72¢862
#035
BOLT, FLANGE (6X35)
$2.79¢1 394
