REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

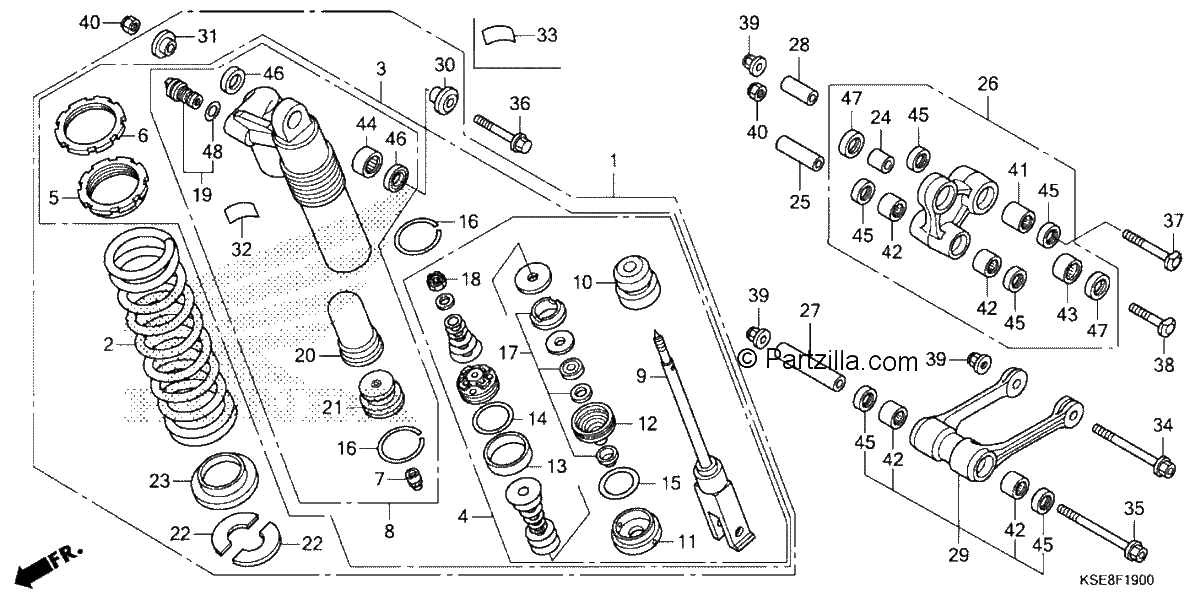

Diagrama de REAR SHOCK ABSORBER

Repuestos

#001
52400-KSE-306
CUSHION ASSY., RR. (COO)
$1170.61¢585 306
1
#002
52401-KSE-A31
SPRING, RR. SHOCK ABSORBER (49.0N/MM,5.0KGF/MM) (SHOWA)
$210.00¢105 000
1
#002
52401-KSE-A41
SPRING, RR. SHOCK ABSORBER (51.0N/MM,5.2KGF/MM) (SHOWA)
$210.00¢105 000
1
#002
52402-KSE-A41
SPRING, RR. SHOCK ABSORBER (53.0N/MM,5.4KGF/MM) (SHOWA)
$219.45¢109 725
1
#003
52410-KSE-305
DAMPER, RR. (COO)
$775.25¢387 625
1
#004
52421-KSE-A71
ROD, PISTON
$462.09¢231 044
1
#005
52422-MA0-003
ADJUSTER, SPRING
$50.54¢25 269
1
#006
52423-GBF-831
NUT, ADJUSTER
$27.63¢13 813
1
#007
52425-381-771
CAP, AIR VALVE
$6.13¢3 063
1
#008
52425-KSE-671
CASE, DAMPER
$434.30¢217 150
1
#009
52426-KSE-A71
ROD
$380.54¢190 269
1
#010
52427-GBF-831
RUBBER, STOPPER
$18.25¢9 125
1
#011
52428-KA4-741
CAP, CASE
$21.94¢10 969
1
#012
52429-KSE-A71
CASE, ROD GUIDE
$47.75¢23 875
1
#013
52431-MA0-771
RING, PISTON
$22.41¢11 206
1
#014
52432-GBF-831
O-RING (2.0X33.5)
$5.74¢2 869
1
#015
52434-KA3-681
O-RING (3.5X33.7)
$6.90¢3 450
1
#016
52435-MA0-771
RING, STOPPER
$6.39¢3 194
1
#017
52436-KSE-680
OIL SEAL SET
$14.59¢7 294
1
#018
52438-KA4-741
NUT, HEX. (12MM)
$3.65¢1 825
1
#019
52440-GBF-A01
ADJUSTER, COMPRESSION DAMPING FORCE
$64.71¢32 356
1
#020
52451-GBF-831
DIAPHRAGM
$20.88¢10 438
1
#021
52453-KSE-671
CAP, CHAMBER
$21.09¢10 544
1
#022
52455-GBF-831
STOPPER, SPRING SEAT
$7.13¢3 563
1
#023
52459-GBF-831
SEAT, SPRING
$28.77¢14 388
1
#024
52462-KSE-000
COLLAR D, CUSHION ARM
$9.98¢4 988
1
#025
52463-KSE-000
COLLAR B, CUSHION ARM
$11.23¢5 613
1
#026
52465-KSE-000
ARM SUB-ASSY., CUSHION
$300.82¢150 413
1
#027
52473-KSE-000
COLLAR A, CONNECTING ROD
$14.46¢7 231
1
#028
52473-KZ9-710
COLLAR, CUSHION CONNECTING ROD
$20.55¢10 275
1
#029
52479-KSE-000
ROD SUB-ASSY., CUSHION CONNECTING
$258.18¢129 088
1
#030
52486-GBF-830
COLLAR A, CUSHION (UPPER)
$8.77¢4 387
1
#031
52487-GBF-830
COLLAR B, CUSHION (UPPER)
$7.49¢3 744
1
#032
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$8.66¢4 331
1
#034
90101-KK6-000
BOLT, FLANGE (10X85)
$9.36¢4 681
1
#035
90101-KSE-000
BOLT, FLANGE (10X105)
$9.94¢4 969
1
#036
90128-KSE-000
BOLT, FLANGE (10X67)
$10.82¢5 413
1
#037
90153-KSE-000
BOLT, LINK (10X73)
$8.43¢4 213
1
#038
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$10.53¢5 263
1
#039
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.45¢2 225
1
#040
90306-KZ4-711
NUT, U (10MM)
$4.54¢2 269
1
#041
91071-KV3-005
BEARING, NEEDLE (KOYO)
$28.90¢14 450
1
#042
91072-KT7-003
BEARING, NEEDLE (17X24X20) (NTN)
$23.45¢11 725
1
#043
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.95¢4 975
1
#044
91077-GS2-702
BEARING, NEEDLE (16X22X12)
$25.60¢12 800
1
#045
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
1
#046
91351-GS2-701
DUST SEAL, RR. CUSHION (UPPER)
$5.42¢2 713
1
#047
91351-KSE-003
DUST SEAL (19X26X3)
$3.65¢1 825
1
#048
91356-GBF-831
O-RING (16.8X1.9)
$4.88¢2 438
1
