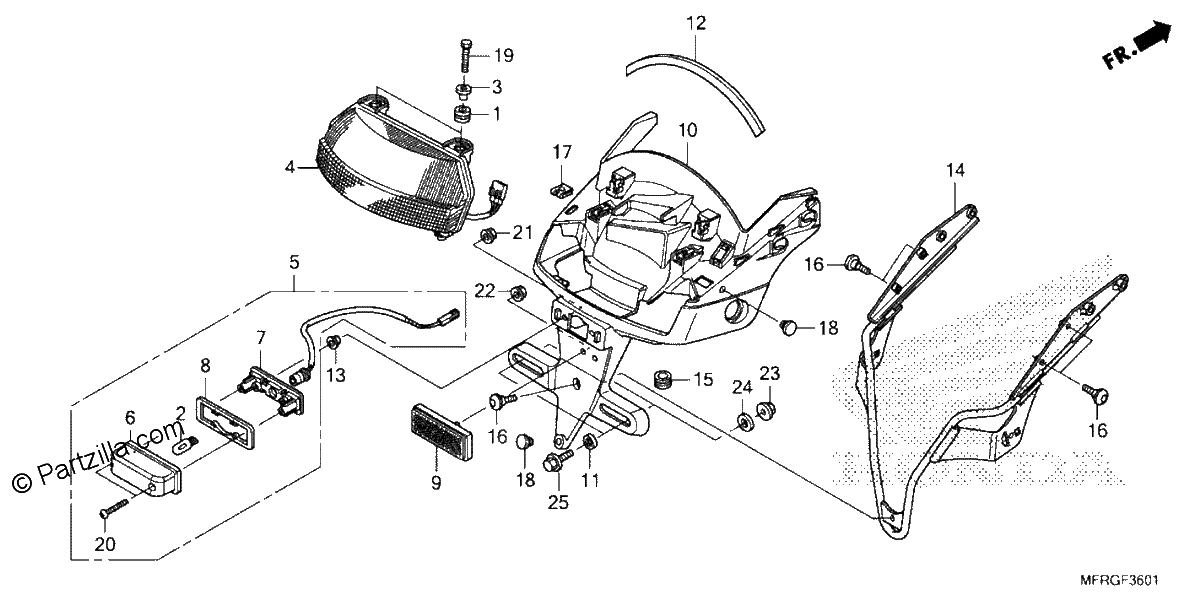

TAILLIGHT LICENSE LIGHT 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, MOUNTING
$1.66¢828
#002
BULB (12V 5W) (STANLEY)
$4.24¢2 122
#003
COLLAR C, RR. TURN SIGNAL
$3.04¢1 518
#004
TAILLIGHT UNIT (COO) (STANLEY)
$331.67¢165 836
#004
TAILLIGHT UNIT (STANLEY)
$331.67¢165 836
#005
LIGHT Assembly., LICENSE (12V 5W) (STANLEY)
$75.24¢37 622
#006
COVER, LICENSE
$22.64¢11 322
#007
BASE, LICENSE
$24.33¢12 167
#008
GASKET, LENS
$11.21¢5 606
#009
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
#010
FENDER A, RR.
$36.20¢18 101
#011
COLLAR, TAILLIGHT
$3.36¢1 679
#012
MOUL, RR. FENDER COVER
$10.06¢5 031
#013
COLLAR, RR. FENDER
$5.07¢2 536
#014
STAY A, RR. FENDER
$166.09¢83 047
#015
GROMMET
$3.04¢1 518
#016
SCREW, PAN (6X13)
$3.09¢1 547
#017
NUT, SPRING (5MM)
$2.74¢1 368
#018
PLUG, HOLE
$3.04¢1 518
#019
BOLT, HEX. (5X16)
$0.85¢426
#020
SCREW, TAPPING (4X16)
$0.98¢489
#021
NUT, FLANGE (5MM)
$1.54¢771
#022
NUT, FLANGE (5MM)
$1.53¢765
#023
NUT, FLANGE (6MM)
$0.74¢368
#024
WASHER, PLAIN (6MM)
$0.92¢460
#025
BOLT, FLANGE (6X16)
$1.92¢960
