WIRE HARNESS

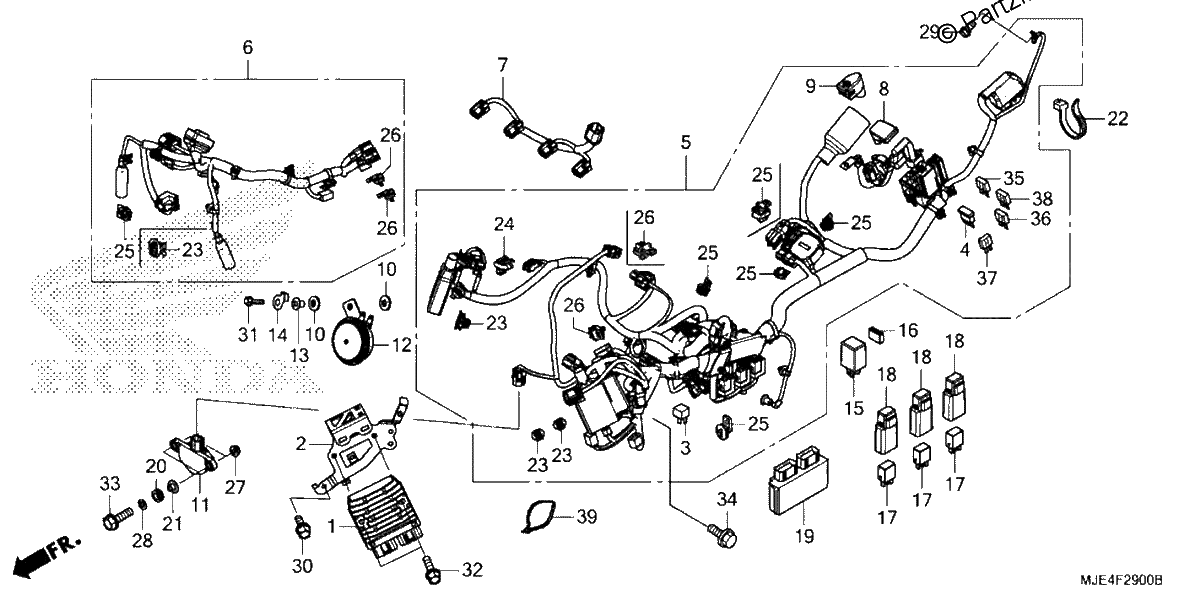

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$201.64¢100 821
#002
STAY, REGULATOR
$22.21¢11 103
#003
RECTIFIER, SILICON
$28.21¢14 105
#004
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#005
WIRE HARNESS (NOT AVAILABLE)
No Disponible
#006
SUB-HARNESS, FR.
$74.96¢37 479
#007
SUB-HARNESS, INJECTOR
$28.78¢14 392
#010
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#011
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#012
HORN (HIGH)
$41.48¢20 740
#013
COLLAR, HORN SETTING
$0.91¢454
#015
RELAY, TURN SIGNAL (MITSUBA)
$59.04¢29 521
#016
SUSPENSION, TURN SIGNAL RELAY
$6.35¢3 174
#017
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
#018
SUSPENSION, POWER RELAY
$7.28¢3 640
#019
PGM-FI UNIT
$394.15¢197 075
#020
RUBBER, SIDE COVER
$2.30¢1 150
#021
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#022
BAND, WIRE (95MM)
$3.47¢1 737
#023
CLIP, CONNECTOR (NATURAL)
$4.62¢2 311
#024
CLIP, CONNECTOR (BLACK)
$5.86¢2 932
#025
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#026
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#027
NUT, FLANGE (6MM)
$0.74¢368
#028
WASHER, PLAIN (6MM)
$0.92¢460
#029
BOLT, FLANGE (6X12)
$2.13¢1 064
#030
BOLT, FLANGE (6X12)
$1.92¢960
#031
BOLT, FLANGE (6X20)
$1.92¢960
#032
BOLT, FLANGE (6X22)
$2.13¢1 064
#033
BOLT, FLANGE (6X22)
$2.04¢1 018
#034
BOLT, FLANGE (6X10)
$1.82¢909
#035
FUSE, MINI (7.5A)
$1.44¢719
#036
FUSE, MINI (10A)
$1.56¢782
#037
FUSE, MINI (20A)
$1.37¢684
#039
BAND, WIRE (BLACK)
$4.99¢2 496
