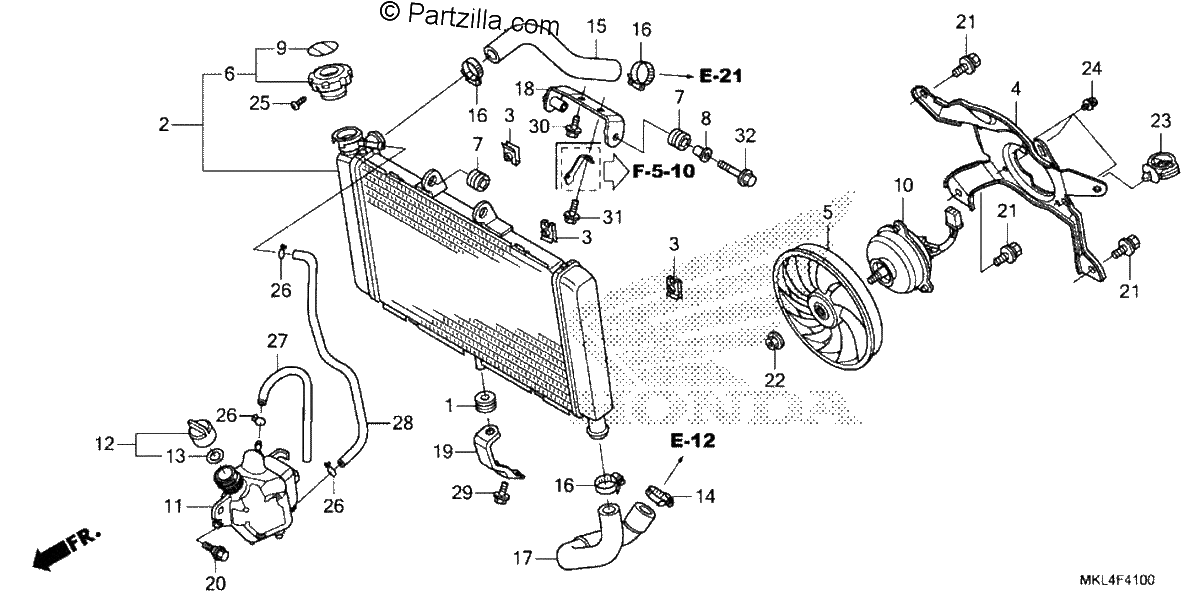

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, CUSHION
$5.81¢2 906
#002
RADIATOR (COO)
$1129.63¢564 813
#002
RADIATOR
$1129.63¢564 813
#003
NUT, SETTING (6MM)
$3.75¢1 875
#004
SHROUD
$104.01¢52 006
#005
FAN, COOLING (TOYO)
$46.06¢23 031
#006
CAP, RADIATOR
$47.33¢23 663
#007
RUBBER, RADIATOR MOUNTING
$2.34¢1 169
#008
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#009
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$10.79¢5 394
#010
MOTOR Assembly., FAN
$278.01¢139 006
#011
TANK, RADIATOR RESERVE
$50.03¢25 013
#012
CAP ASSY., RESERVE TANK
$8.36¢4 181
#013
GASKET, RESERVE TANK
$4.54¢2 269
#014
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
#015
HOSE, RADIATOR (UPPER)
$16.85¢8 425
#016
CLAMP, WATER HOSE
$8.58¢4 288
#017
HOSE, RADIATOR (LOWER)
$29.42¢14 712
#018
STAY, RADIATOR (UPPER)
$10.71¢5 356
#019
STAY, RADIATOR (LOWER) NH303M (MAT AXIS GRAY METALLIC)
$12.88¢6 438
#020
BOLT, FLANGE (6MM)
$3.65¢1 825
#021
BOLT-WASHER (6X12)
$2.48¢1 238
#022
NUT, FLANGE (3MM)
$2.99¢1 494
#023
CLIP, HARNESS
$4.01¢2 006
#024
SCREW-WASHER (4X6)
$1.47¢737
#025
SCREW, TAPPING (3X8)
$1.16¢581
#026
CLIP, TUBE (B10)
$2.44¢1 219
#027
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#028
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#029
BOLT, FLANGE (6X14)
$1.39¢694
#030
BOLT, FLANGE (6X14)
$2.09¢1 044
#031
BOLT, FLANGE (6X18)
$2.09¢1 044
#032
BOLT, FLANGE (6X25)
$2.31¢1 156
