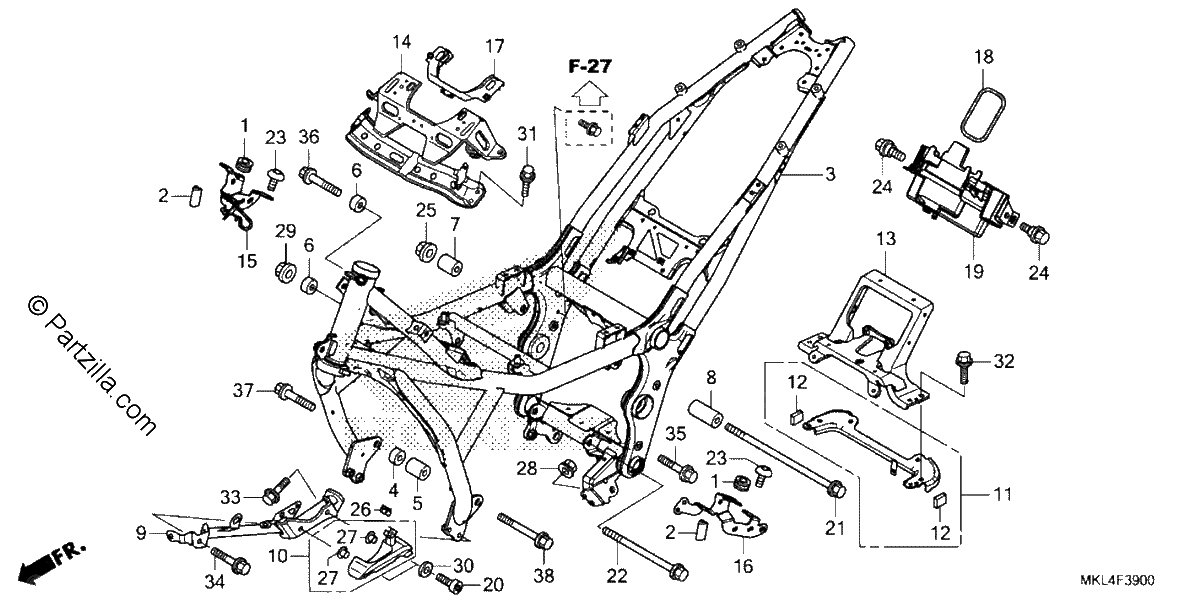

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
#002
TRIM, FUEL TANK NH1 (BLACK)
$2.60¢1 300
#003
FRAME NH303M (MAT AXIS GRAY METALLIC)
$2942.56¢1 471 281
#004
COLLAR A, R. ENGINE HANGER
$10.32¢5 163
#005
COLLAR A, L ENGINE HANGER
$15.41¢7 706
#006
COLLAR B, ENGINE HANGER
$7.15¢3 575
#007
COLLAR C, R. ENGINE HANGER
$14.51¢7 256
#008
COLLAR C, L. ENGINE HANGER
$16.85¢8 425
#009
PIPE, GUARD
$197.63¢98 813
#010
COVER, MOTOR
$25.88¢12 938
#011
STAY SET, FR. TANK
$25.02¢12 513
#012
RUBBER, CROSS PLATE
$1.27¢638
#013
PLATE, CENTER CROSS
$193.61¢96 806
#014
PLATE B, CROSS
$115.00¢57 500
#015
STAY, Right AIR CLEANER HOUSING
$20.00¢10 000
#016
STAY, L. AIR CLEANER HOUSING
$37.08¢18 538
#017
RUBBER, CROSS PLATE
$9.98¢4 988
#018
BAND, TOOL
$3.44¢1 719
#019
BOX, ELECTRIC CONTROL UNIT
$13.15¢6 575
#020
BOLT, SOCKET (8X25)
$5.51¢2 756
#021
BOLT, FLANGE (12X276)
$25.23¢12 613
#022
BOLT, FLANGE (12X168)
$15.61¢7 806
#023
SCREW, PAN (6X12)
$2.46¢1 231
#024
BOLT, FLANGE (6MM)
$3.65¢1 825
#025
NUT, FLANGE (12MM)
$2.21¢1 106
#026
NUT, CLIP (5MM)
$4.94¢2 469
#027
COLLAR
$3.91¢1 956
#028
NUT, FLANGE (8MM)
$1.93¢963
#029
NUT, FLANGE (12MM)
$1.27¢638
#030
WASHER, PLAIN (8MM)
$1.27¢638
#031
BOLT, FLANGE (6X12)
$1.99¢994
#032
BOLT, FLANGE (6X22)
$2.21¢1 106
#033
BOLT, FLANGE (8X20)
$2.40¢1 200
#034
BOLT, FLANGE (8X22)
$2.70¢1 350
#035
BOLT, FLANGE (12X35)
$4.07¢2 037
#036
BOLT, FLANGE (12X45)
$2.36¢1 181
#037
BOLT, FLANGE (12X55)
$4.22¢2 113
#038
BOLT, FLANGE (12X80)
$5.67¢2 838
