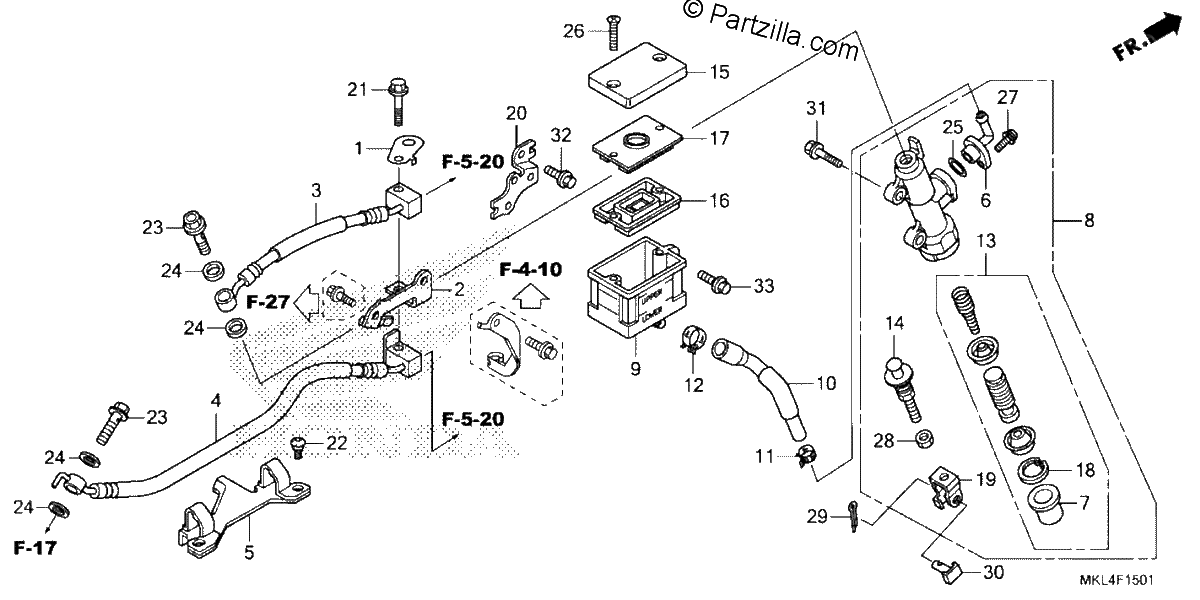

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, SENSOR WIRE
$4.71¢2 357
#002
STAY, RR. BRAKE HOSE
$15.13¢7 567
#003
HOSE A, Rear BRAKE
$42.26¢21 131
#004
HOSE E, RR. BRAKE
$83.36¢41 682
#005
GUIDE, RR. BRAKE HOSE
$19.64¢9 821
#006
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
#007
BOOT
$10.80¢5 399
#008
MASTER CYLINDER SUB-ASSY., RR. (COO)
$249.14¢124 568
#008
MASTER CYLINDER SUB-Assembly., Rear.
$249.14¢124 568
#009
CUP, OIL
$42.38¢21 189
#010
HOSE, RR. MASTER CYLINDER
$22.94¢11 471
#011
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#012
CLAMP, MASTER CYLINDER OIL HOSE
$18.10¢9 051
#013
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#014
ROD, PUSH
$24.64¢12 322
#015
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#015
CAP, MASTER CYLINDER
$4.63¢2 317
#016
DIAPHRAGM
$11.33¢5 664
#017
PLATE, DIAPHRAGM
$11.59¢5 796
#018
CIRCLIP
$2.30¢1 150
#019
JOINT, BRAKE ROD
$8.74¢4 370
#020
STAY, OIL CUP
$5.88¢2 938
#021
BOLT, FLANGE (6X35) (SH)
$2.64¢1 322
#022
SCREW, SPECIAL (5X14)
$3.36¢1 679
#023
BOLT, OIL (10X22)
$8.18¢4 088
#024
WASHER, OIL BOLT
$4.46¢2 231
#025
O-RING (14.8X2.4)
$3.04¢1 518
#026
SCREW, FLAT (4X40)
$0.56¢282
#027
SCREW-WASHER (4X12)
$1.59¢793
#027
SCREW-WASHER (4X12)
$1.59¢793
#028
NUT, HEX. (8MM)
$1.47¢736
#029
PIN, SPLIT (2.0X15)
$1.23¢615
#030
PIN D, JOINT
$4.74¢2 369
#031
BOLT, FLANGE (6X22)
$2.13¢1 064
#032
BOLT, FLANGE (6X12)
$2.13¢1 064
#033
BOLT, FLANGE (6X14)
$2.13¢1 064
