RIGHT CRANKCASE COVER WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

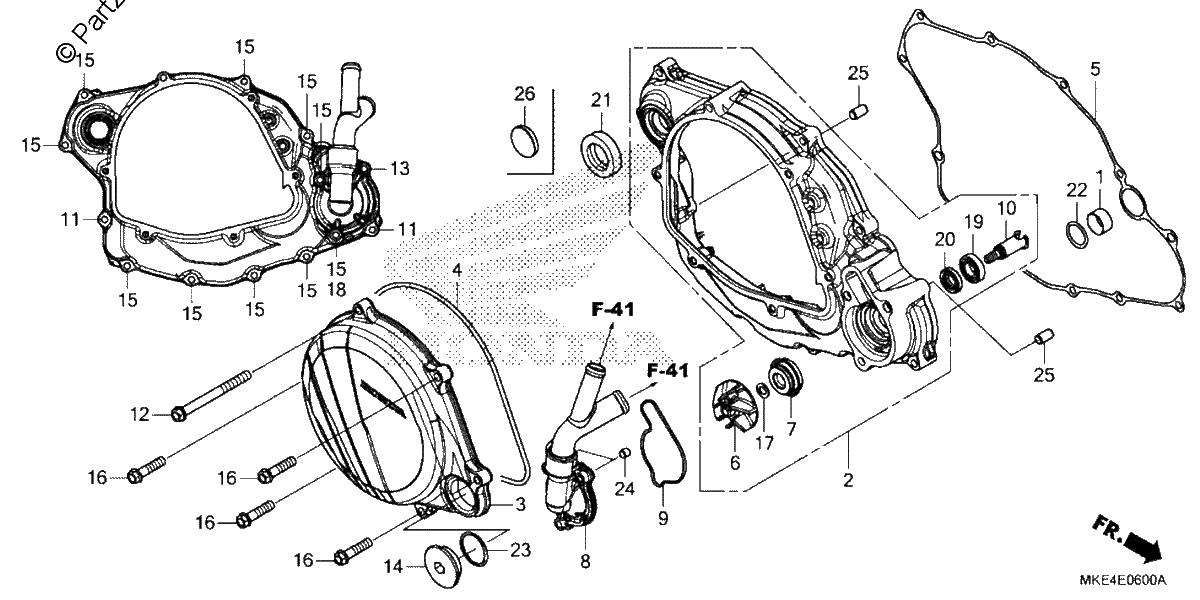

Diagrama de RIGHT CRANKCASE COVER WATER PUMP

Repuestos

#001
11102-MKE-A00
COLLAR, WATER PASS
$5.74¢2 869
1
#002
11330-MKE-A00
COVER ASSY., R. CRANKCASE
$438.15¢219 075
1
#003
11351-MKE-A00
COVER, CLUTCH
$172.56¢86 281
1
#004
11352-MKE-A00
GASKET, CLUTCH COVER
$15.08¢7 538
1
#005
11394-MKE-A01
GASKET, R. COVER
$17.75¢8 875
1
#006
19215-MEN-850
IMPELLER, WATER PUMP
$49.44¢24 719
1
#007
19217-KRN-A61
SEAL, MECHANICAL
$53.86¢26 931
1
#008
19220-MKE-A00
COVER, WATER PUMP
$140.61¢70 306
1
#009
19226-MKE-A00
GASKET, WATER PUMP
$6.20¢3 100
1
#010
19241-MKE-A00
SHAFT, WATER PUMP
$69.92¢34 963
1
#011
90023-MKE-A00
BOLT, FLANGE (6X35) (SH)
$3.66¢1 831
1
#012
90027-MKE-A00
BOLT, FLANGE (6X65) (SH)
$4.39¢2 194
1
#013
90028-MKE-A00
BOLT, FLANGE (6X75) (SH)
$4.39¢2 194
1
#014
90087-HB5-000
CAP (30MM)
$19.51¢9 756
1
#015
90107-MEN-A60
BOLT (6X28)
$3.38¢1 688
1
#016
90109-MEN-A70
BOLT (6X25)
$3.59¢1 794
1
#017
90447-KE1-000
WASHER, SEALING (7MM)
$3.43¢1 713
1
#018
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#019
91002-MEN-A31
BEARING, BALL (12X24X6)
$10.32¢5 163
1
#020
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.91¢2 456
1
#020
91201-965-000
OIL SEAL (12X22X5)
$4.91¢2 456
1
#022
91301-MKE-A00
O-RING (2.4X19)
$2.66¢1 331
1
#023
91305-KF0-003
O-RING (27X2) (ARAI)
$3.65¢1 825
1
#024
91320-KE1-000
PIN, DOWEL (8X7)
$2.88¢1 438
1
#025
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#026
11332-HP1-601
CAP (28MM)
$12.49¢6 244
1
