CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

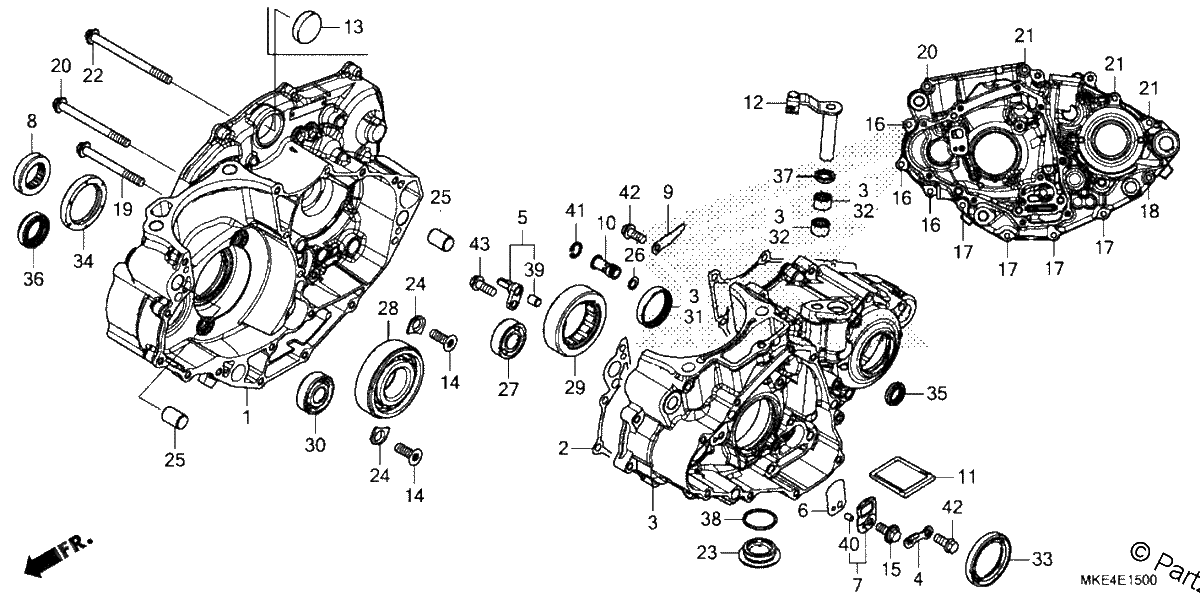

Diagrama de CRANKCASE

Repuestos

#001
11100-MKE-A01
CRANKCASE, R.
$545.24¢272 619
1
#002
11191-MKE-A01
GASKET, CRANKCASE
$24.63¢12 313
1
#003
11200-MKE-A00
CRANKCASE, L.
$649.13¢324 563
1
#004
11206-MKE-A00
PLATE, CAM CHAIN GUIDE
$4.22¢2 113
1
#005
11210-MKE-A00
JET, PISTON
$34.30¢17 150
1
#006
11221-MKE-A00
VALVE, REED
$9.44¢4 719
1
#007
11230-MKE-A00
STOPPER, REED VALVE
$34.55¢17 275
1
#008
13415-MKE-A00
COLLAR, CRANKSHAFT
$39.49¢19 744
1
#009
15201-MKE-A00
PLATE, OIL GUIDE
$5.83¢2 913
1
#010
15220-MEN-A30
VALVE ASSY., RELIEF
$31.74¢15 869
1
#011
15421-MKE-A00
SCREEN, OIL FILTER
$13.53¢6 763
1
#012
22810-MKE-A00
LEVER, CLUTCH LIFTER
$69.86¢34 931
1
#014
90001-MEN-850
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
1
#015
90019-MKE-A00
BOLT-WASHER (6X14)
$3.05¢1 525
1
#016
90051-MKE-A00
BOLT, FLANGE (6X28) (LNSH)
$3.66¢1 831
1
#017
90052-MKE-A00
BOLT, FLANGE (6X40) (LNSH)
$3.66¢1 831
1
#018
90053-MKE-A00
BOLT, FLANGE (6X50) (LNSH)
$4.07¢2 037
1
#019
90054-MKE-A00
BOLT, FLANGE (6X60) (LNSH)
$4.07¢2 037
1
#020
90055-MKE-A00
BOLT, FLANGE (6X70) (LNSH)
$4.39¢2 194
1
#021
90056-MKE-A00
BOLT, FLANGE (6X75) (LNSH)
$2.68¢1 338
1
#022
90057-MKE-A00
BOLT, FLANGE (6X80) (LNSH)
$4.39¢2 194
1
#023
90088-MKE-A00
BOLT, DRAIN (30MM)
$22.05¢11 025
1
#024
90441-MEN-A30
PLATE, BEARING HOLDER
$4.36¢2 181
1
#025
90701-MKE-A00
PIN, DOWEL (14X20)
$5.35¢2 675
1
#026
90751-GK1-003
O-RING (8.5X1.7)
$3.49¢1 744
1
#027
91001-MEN-A31
BEARING, RADIAL BALL SPECIAL (6202)
$12.98¢6 488
1
#028
91001-MKE-A01
BEARING, RADIAL BALL (30X72X19)
$72.66¢36 331
1
#029
91002-MEY-671
BEARING, SPECIAL ROLLER (NTN)
$58.39¢29 194
1
#030
91004-MKE-A01
BEARING, RADIAL BALL (15X38X11)
$27.68¢13 838
1
#031
91022-KA4-740
BEARING, SHELL (33X38X8) (NTN)
$20.74¢10 369
1
#031
91022-KA4-741
BEARING, SHELL (33X38X8) (NTN)
$21.66¢10 831
1
#032
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#032
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
1
#033
91201-MEB-671
OIL SEAL (38X52X7) (ARAI)
$15.39¢7 694
1
#034
91202-MKE-A01
OIL SEAL (39X53X7)
$19.55¢9 775
1
#035
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
1
#036
91203-MKE-A01
OIL SEAL (22X33X7.5)
$9.59¢4 794
1
#037
91205-MEB-671
OIL SEAL (12X18X3) (ARAI)
$4.19¢2 094
1
#038
91305-KF0-003
O-RING (27X2) (ARAI)
$3.65¢1 825
1
#039
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
#040
94303-04065
PIN C, DOWEL (4X6.5)
$2.75¢1 375
1
#041
94520-14000
CIRCLIP, INNER (14MM)
$1.19¢594
1
#042
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#043
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
