FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

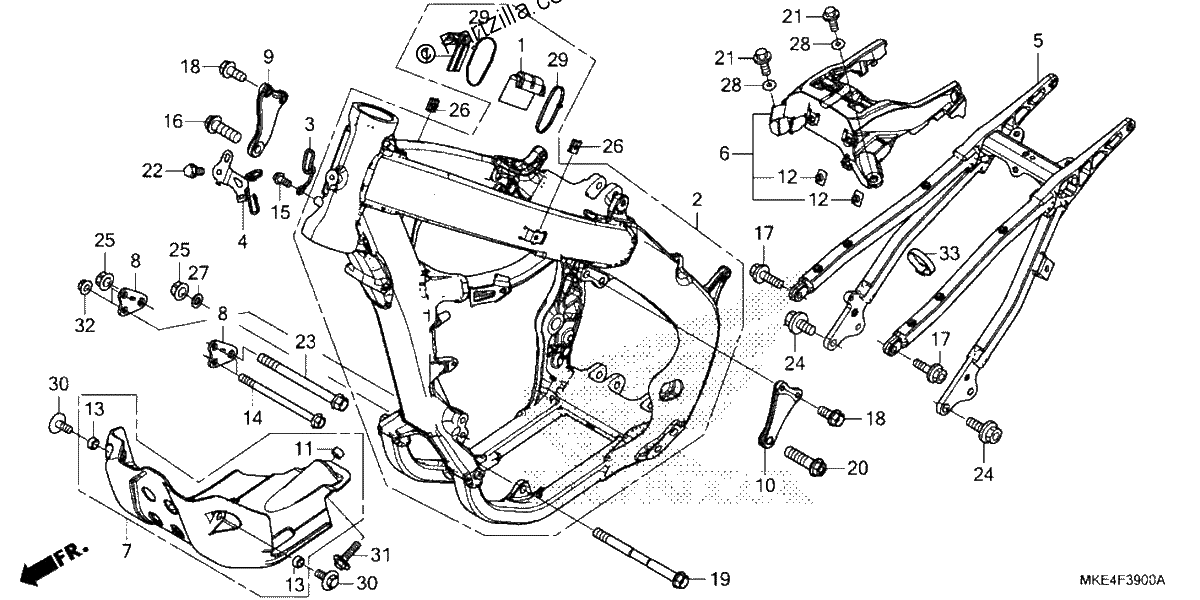

Diagrama de FRAME

Repuestos

#001
17522-MKE-A00
RUBBER, TANK SIDE MOUNTING
$28.65¢14 325
1
#002
50010-MKE-A60
FRAME SET
$3510.71¢1 755 356
1
#003
50128-MKE-A00
GUIDE, CABLE
$17.01¢8 506
1
#004
50184-MKE-A00
STAY, CONNECTOR
$12.34¢6 169
1
#005
50200-MKE-A00
FRAME, RR.
$966.90¢483 450
1
#006
50250-MKE-A00
BASE ASSY., SEAT SUPPORT
$75.25¢37 625
1
#007
50357-MKE-A00
GUARD, ENGINE
$57.70¢28 850
1
#008
50405-MKE-A00
PLATE, FR. ENGINE HANGER
$11.35¢5 675
1
#009
50407-MKE-A10
PLATE, R. HEAD HANGER
$95.49¢47 744
1
#010
50408-MKE-A10
PLATE, L. HEAD HANGER
$95.49¢47 744
1
#011
61103-MGS-D30
COLLAR B, FR. FENDER
$2.03¢1 013
1
#012
61304-GFC-900
NUT, SPECIAL (6X7)
$6.38¢3 188
1
#013
80123-MA1-640
COLLAR, SPLASH GUARD
$2.64¢1 319
1
#014
90101-MEN-A30
BOLT, FLANGE (8X121)
$7.81¢3 906
1
#015
90101-MEN-A60
BOLT (6X12)
$2.82¢1 412
1
#016
90102-MEN-A30
BOLT, FLANGE (10X30)
$4.41¢2 206
1
#017
90102-MKE-A00
BOLT, FLANGE (8X28) (SH)
$3.71¢1 856
1
#018
90103-MEB-670
BOLT, FLANGE (8X18)
$2.52¢1 263
1
#019
90104-MKE-A00
BOLT, SPECIAL FLANGE (10X134)
$8.69¢4 344
1
#020
90105-MEN-A30
BOLT, FLANGE (10X37)
$4.41¢2 206
1
#021
90105-MEN-A60
BOLT (6X18)
$2.82¢1 412
1
#022
90105-MKE-A00
BOLT, FLANGE (7X14)
$3.28¢1 638
1
#023
90106-MEN-A30
BOLT, FLANGE (10X123)
$7.48¢3 738
1
#024
90122-MEN-730
BOLT (10X24)
$2.99¢1 494
1
#025
90302-KZ3-J40
NUT, FLANGE (10MM)
$3.50¢1 750
1
#026
90303-MGZ-J40
NUT, CLIP (6MM)
$1.38¢688
1
#027
90410-HC4-000
WASHER (10MM)
$4.63¢2 313
1
#028
90501-KZ4-J20
COLLAR A
$4.44¢2 219
1
#029
91560-MS8-600
TY-RAP, CABLE
$3.05¢1 525
1
#030
93404-06016-07
BOLT-WASHER (6X16)
$1.99¢994
1
#031
93404-06025-07
BOLT-WASHER (6X25)
$2.40¢1 200
1
#032
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#033
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
