CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

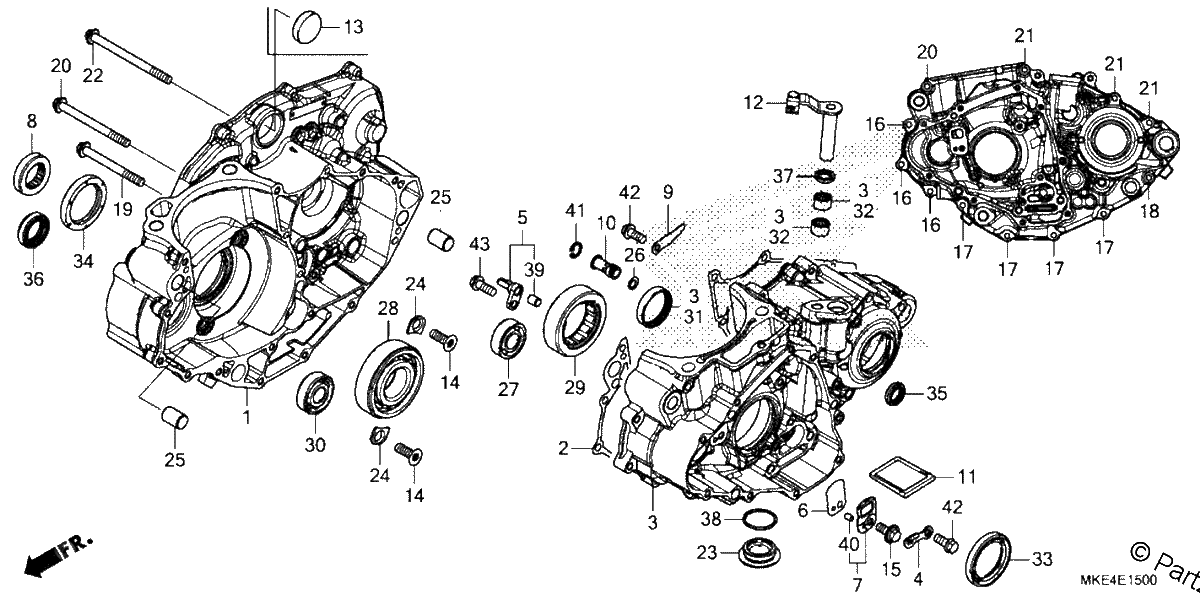

Diagrama de CRANKCASE

Repuestos

#001
11100-MKE-A01
CRANKCASE, R.
$501.62¢250 809
1
#002
11191-MKE-A01
GASKET, CRANKCASE
$22.65¢11 327
1
#003
11200-MKE-A00
CRANKCASE, L.
$597.19¢298 597
1
#004
11206-MKE-A00
PLATE, CAM CHAIN GUIDE
$3.89¢1 943
1
#005
11210-MKE-A00
JET, PISTON
$31.56¢15 778
1
#006
11221-MKE-A00
VALVE, REED
$8.68¢4 341
1
#007
11230-MKE-A00
STOPPER, REED VALVE
$31.79¢15 893
1
#008
13415-MKE-A00
COLLAR, CRANKSHAFT
$36.33¢18 164
1
#009
15201-MKE-A00
PLATE, OIL GUIDE
$5.36¢2 680
1
#010
15220-MEN-A30
VALVE ASSY., RELIEF
$29.20¢14 599
1
#011
15421-MKE-A00
SCREEN, OIL FILTER
$12.44¢6 222
1
#012
22810-MKE-A00
LEVER, CLUTCH LIFTER
$64.27¢32 137
1
#014
90001-MEN-850
SCREW, SPECIAL FLAT (6X17)
$2.13¢1 064
1
#015
90019-MKE-A00
BOLT-WASHER (6X14)
$2.81¢1 403
1
#016
90051-MKE-A00
BOLT, FLANGE (6X28) (LNSH)
$3.37¢1 685
1
#017
90052-MKE-A00
BOLT, FLANGE (6X40) (LNSH)
$3.37¢1 685
1
#018
90053-MKE-A00
BOLT, FLANGE (6X50) (LNSH)
$3.75¢1 874
1
#019
90054-MKE-A00
BOLT, FLANGE (6X60) (LNSH)
$3.75¢1 874
1
#020
90055-MKE-A00
BOLT, FLANGE (6X70) (LNSH)
$4.04¢2 018
1
#021
90056-MKE-A00
BOLT, FLANGE (6X75) (LNSH)
$2.46¢1 231
1
#022
90057-MKE-A00
BOLT, FLANGE (6X80) (LNSH)
$4.04¢2 018
1
#023
90088-MKE-A00
BOLT, DRAIN (30MM)
$20.29¢10 143
1
#024
90441-MEN-A30
PLATE, BEARING HOLDER
$4.01¢2 007
1
#025
90701-MKE-A00
PIN, DOWEL (14X20)
$4.92¢2 461
1
#026
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#027
91001-MEN-A31
BEARING, RADIAL BALL SPECIAL (6202)
$11.94¢5 969
1
#028
91001-MKE-A01
BEARING, RADIAL BALL (30X72X19)
$66.85¢33 425
1
#029
91002-MEY-671
BEARING, SPECIAL ROLLER (NTN)
$53.72¢26 858
1
#030
91004-MKE-A01
BEARING, RADIAL BALL (15X38X11)
$25.46¢12 731
1
#031
91022-KA4-740
BEARING, SHELL (33X38X8) (NTN)
$19.08¢9 539
1
#031
91022-KA4-741
BEARING, SHELL (33X38X8) (NTN)
$19.93¢9 965
1
#032
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#032
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$9.34¢4 669
1
#033
91201-MEB-671
OIL SEAL (38X52X7) (ARAI)
$14.16¢7 078
1
#034
91202-MKE-A01
OIL SEAL (39X53X7)
$17.99¢8 993
1
#035
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.25¢2 128
1
#036
91203-MKE-A01
OIL SEAL (22X33X7.5)
$8.82¢4 410
1
#037
91205-MEB-671
OIL SEAL (12X18X3) (ARAI)
$3.85¢1 926
1
#038
91305-KF0-003
O-RING (27X2) (ARAI)
$3.36¢1 679
1
#039
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#040
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
#041
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#042
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#043
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
