HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

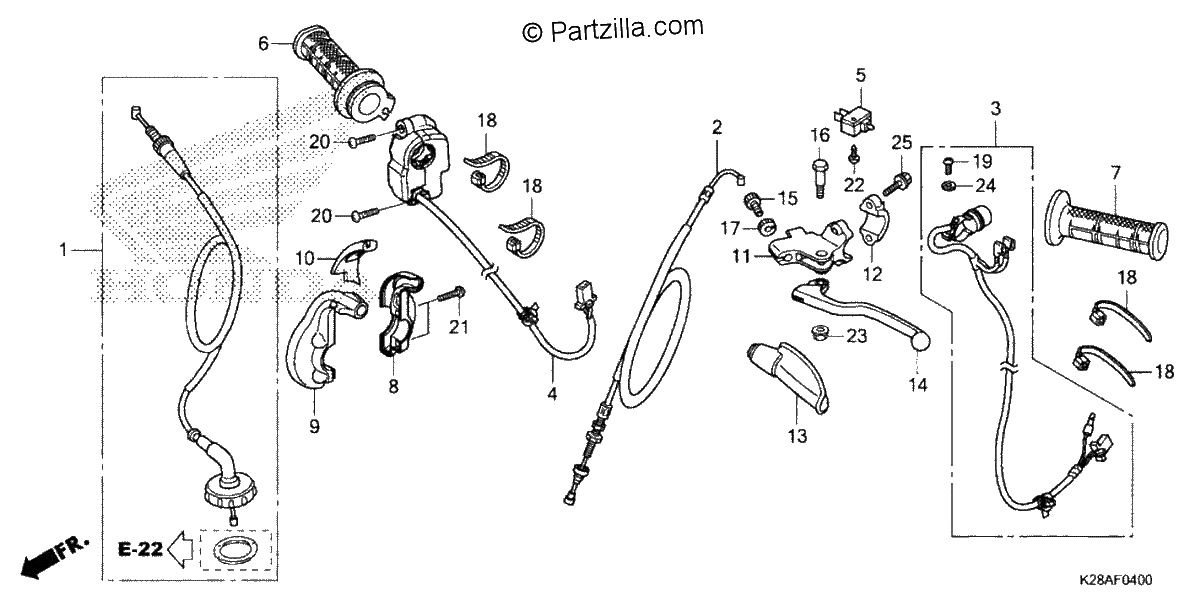

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17920-K28-305
CABLE SET, THROTTLE
$57.93¢28 963
1
#002
22870-K28-911
CABLE, CLUTCH
$23.92¢11 960
1
#003
35130-K28-911
SWITCH ASSY., ENGINE STOP
$48.77¢24 386
1
#004
35150-K28-911
SWITCH ASSY., STARTER
$64.96¢32 482
1
#005
35330-MK5-003
SWITCH ASSY., CLUTCH
$19.11¢9 557
1
#006
53140-K28-305
GRIP, THROTTLE (COO)
$34.33¢17 164
1
#007
53166-K28-305
GRIP, L. HANDLE (COO)
$11.51¢5 756
1
#008
53167-KYK-910
HOUSING, THROTTLE (LOWER)
$31.97¢15 985
1
#009
53168-K28-910
HOUSING, THROTTLE (UPPER)
$33.73¢16 865
1
#010
53169-KYK-910
SLIDER, THROTTLE
$8.13¢4 065
1
#011
53172-K28-910
BRACKET, L. HANDLE LEVER
$71.51¢35 753
1
#012
53174-K28-910
HOLDER, L. LEVER BRACKET
$18.15¢9 074
1
#013
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.36¢1 679
1
#014
53178-K28-305
LEVER, L. HANDLE (COO)
$52.46¢26 231
1
#015
53192-KTJ-900
BOLT, WIRE ADJUSTING
$6.27¢3 134
1
#016
90113-KYY-900
BOLT, HANDLE LEVER PIVOT
$3.36¢1 679
1
#017
90321-KTJ-900
NUT, FIXING
$10.68¢5 342
1
#018
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#019
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#019
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#020
93500-04014-0G
SCREW, PAN (4X14)
$0.86¢431
1
#021
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#022
93901-32220
SCREW, TAPPING (3X10)
$1.07¢535
1
#023
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#024
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
#025
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
