REDUCTION GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

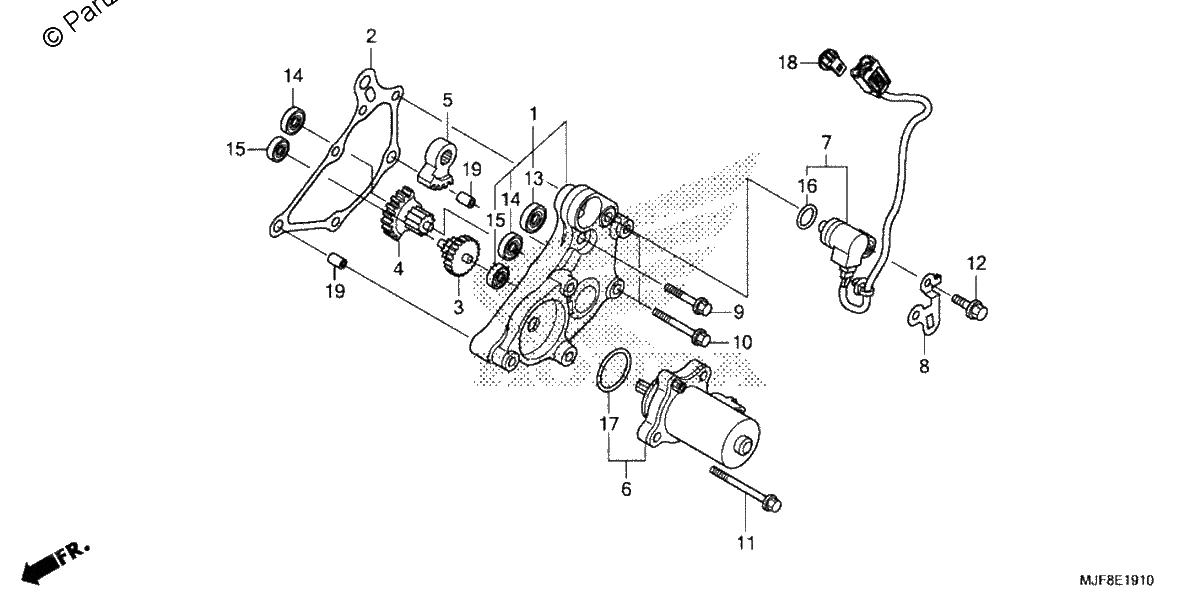

Diagrama de REDUCTION GEAR

Repuestos

#001
11520-MGS-D20
COVER, REDUCTION GEAR
$137.76¢68 881
1
#002
11523-MGS-D20
GASKET, REDUCTION COVER
$15.20¢7 600
1
#003
24615-MGE-D01
GEAR, SHIFT REDUCTION (45T/7T)
$86.79¢43 394
1
#004
24616-MGS-D21
GEAR, SHIFT REDUCTION (32T/13T)
$85.57¢42 787
1
#005
24617-MGE-D01
GEAR, SHIFT REDUCTION (42T)
$70.41¢35 206
1
#006
31300-MJF-A21
MOTOR ASSY., RATIO CONTROL
$355.90¢177 950
1
#007
38800-MGS-D21
SENSOR Assembly., ANGLE
$309.26¢154 631
1
#008
38815-MGS-D20
STAY, ANGLE SENSOR WIRE
$3.63¢1 813
1
#009
90001-MGS-D20
BOLT, FLANGE (6X28)
$2.52¢1 263
1
#010
90002-MGS-D20
BOLT, FLANGE (6X40)
$3.73¢1 863
1
#011
90003-MGS-D20
BOLT, FLANGE (6X60)
$3.40¢1 700
1
#012
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#013
91025-MGS-D21
BEARING, RADIAL BALL (699ZZ)
$14.14¢7 069
1
#014
91026-MGS-D21
BEARING, RADIAL BALL (607ZZ)
$12.59¢6 294
1
#015
91027-MGS-D21
BEARING, RADIAL BALL (696ZZ)
$11.19¢5 594
1
#016
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#017
91351-HM8-A51
O-RING, CONTROL MOTOR
$4.63¢2 313
1
#018
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#019
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
