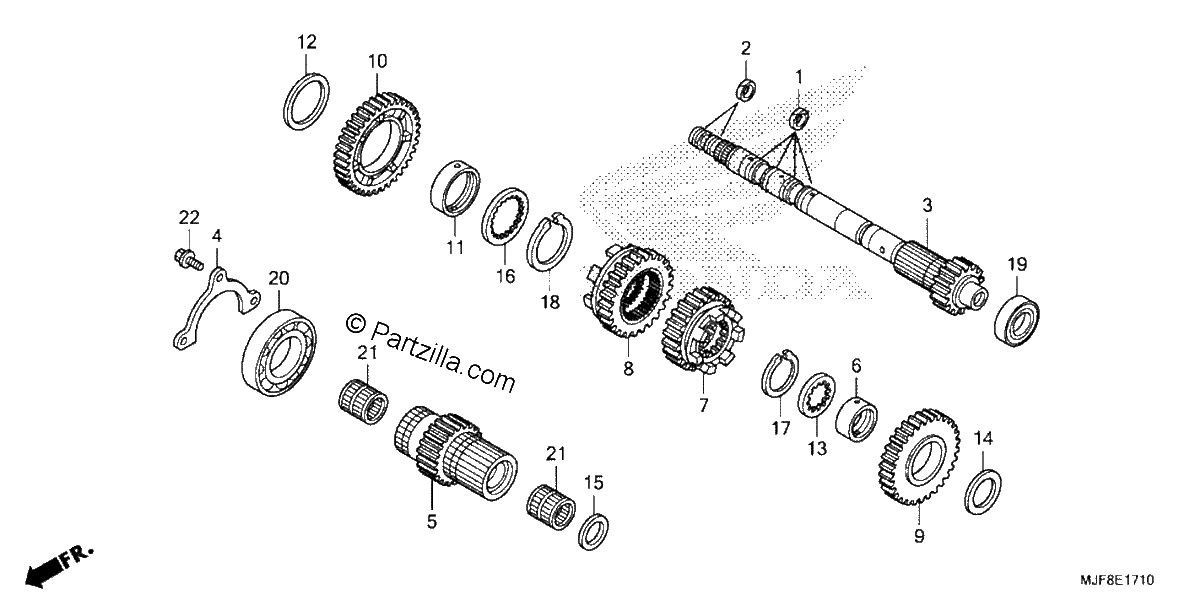

TRANSMISSION CTX700ND MAINSHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RING, SEALING (26MM)
$10.04¢5 019
#002
SEAL, RING (21.2MM)
$12.16¢6 081
#003
MAINSHAFT (INNER) (15T)
$470.45¢235 225
#004
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
#005
MAINSHAFT (OUTER) (21T)
$380.42¢190 212
#006
COLLAR (30X11.2)
$30.55¢15 275
#007
GEAR, MAINSHAFT THIRD (22T)
$140.88¢70 438
#008
GEAR, MAINSHAFT FOURTH (25T)
$131.95¢65 975
#009
GEAR, MAINSHAFT FIFTH (30T)
$122.97¢61 488
#010
GEAR, MAINSHAFT SIXTH (37T)
$122.97¢61 488
#011
COLLAR (40X43X10)
$16.25¢8 125
#012
WASHER (40.2X51X1)
$15.19¢7 594
#013
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
#014
WASHER, THRUST (30.5MM)
$2.36¢1 181
#015
WASHER (26X34X2)
$6.39¢3 194
#016
WASHER, SPLINE (40MM)
$10.39¢5 194
#017
CIRCLIP (30MM)
$5.42¢2 713
#018
CIRCLIP (40MM)
$8.94¢4 469
#019
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
#020
BEARING, RADIAL BALL (6008)
$30.82¢15 413
#021
BEARING, NEEDLE (26X31X24) (NTN)
$38.84¢19 419
#022
BOLT, FLANGE (6X14)
$1.23¢613
