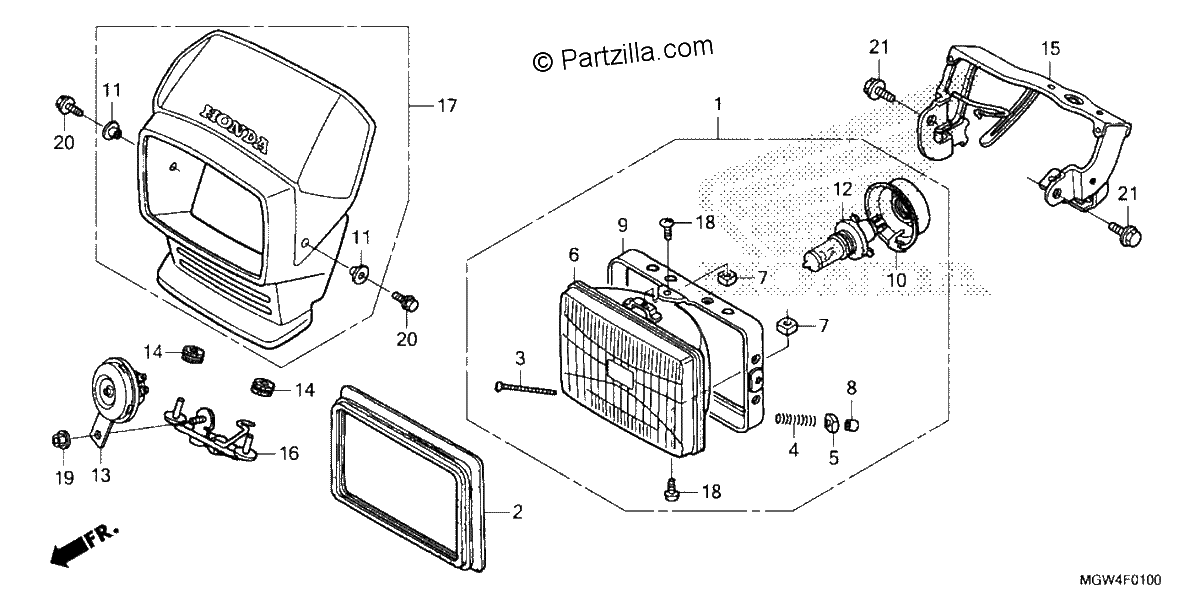

HEADLIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
HEADLIGHT ASSY. (12V 60/55W)
$210.10¢105 052
#001
HEADLIGHT Assembly. (12V 60/55W) (COO)
$210.10¢105 052
#002
GASKET, HEADLIGHT
$31.33¢15 663
#003
SCREW, BEAM ADJUSTING
$6.19¢3 093
#004
SPRING, HEADLIGHT BEAM ADJUSTING
$3.36¢1 679
#005
NUT, BEAM ADJUSTING (STANLEY)
$2.64¢1 322
#006
HEADLIGHT UNIT
$75.06¢37 530
#006
HEADLIGHT UNIT (COO)
$75.06¢37 530
#007
NUT, UNIT HOLDER
$1.83¢914
#008
COVER, SCREW
$2.22¢1 110
#009
RING, MOUNTING
$47.44¢23 719
#010
COVER, RUBBER
$14.14¢7 073
#011
COLLAR A, TAILLIGHT
$3.39¢1 696
#012
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
#013
HORN Assembly. (HIGH)
$41.32¢20 660
#014
GROMMET, IGNITION COVER
$2.68¢1 340
#015
BRACKET, HEADLIGHT
$181.83¢90 913
#016
STAY, Front VISOR (LOWER)
$30.61¢15 307
#017
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$100.67¢50 336
#018
SCREW, PAN (5X10)
$1.07¢535
#019
NUT, FLANGE (8MM)
$1.77¢886
#020
BOLT, FLANGE (6X14)
$1.12¢558
#021
BOLT, FLANGE (8X12)
$3.36¢1 679
